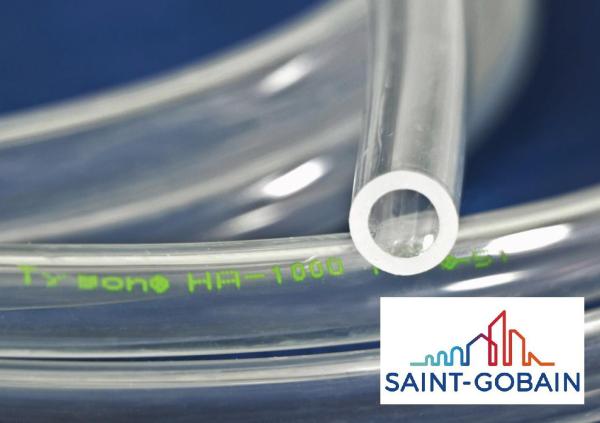

Tygon® HA-1000
Tubing for alcoholic and acidic beverages
Chemical resistant tubing for food and beverage dispensing
Tygon® HA-1000 tubing is designed specifically for food and beverage applications involving high alcohol and high acidic content. With outstanding chemical resistance to high alcohol, high acidity media, the tubing is the ideal choice for room temperature and chilled media transfer. Lightweight and smooth, Tygon® HA-1000 has a non-porous bore to inhibit particle entrapment and resists staining better than most soft plastics. The tubing has outstanding resistance to harsh alkaline cleaners and is unaffected by commonly used sanitizers. The relative chemical resistance properties chart below highlights that the tubing is virtually unaffected by acids, bases, salts and alcohols.
Flexible and translucent
Tygon® HA-1000 tubing is flexible, making it easy to maneuver within the food and beverage dispensing equipment. Easy to install, versatile with fittings and connectors. The tubing is also translucent, allowing for easy visual inspection and fluid monitoring. Tygon® HA-1000 does not contain plasticizers or DEHP, eliminating fluid contamination as well as premature brittleness and cracking, commonly seen with many other flexible tubing.
Environmentally friendly
Tygon® HA-1000 chemical resistant tubing is environmentally friendly and can be disposed safely. When properly incinerated, it does not release hazardous and corrosive hydrochloride gas, which has been proven to be a contributing factor of acid rain.
Regulatory compliance*
- Compliant with applicable FDA Food Additive Regulation 21 CFR 170-189
- Compliant with Regulation (EC) No. 1935/2004, (EU) No 10/2011
- List in NSF/ANSI 51 Food Equipment Materials
- REACH Regulation (EC) No 1907/2006
Features and Benefits
- Outstanding chemical resistance to alcoholic and acidic foods
- Smooth, non-porous inner surface resists particle entrapment and provides a better flow
- Resists stains from highly acidic and pigmented condiments
- Clear wall enables visualization of fluid flow
- Contains no plasticizers or phthalates
- Low sorption - minimizes cross contamination, maintains media purity
Typical Applications
- Alcoholic beverages: wine transfer, liquor and alcoholic cocktails dispensing

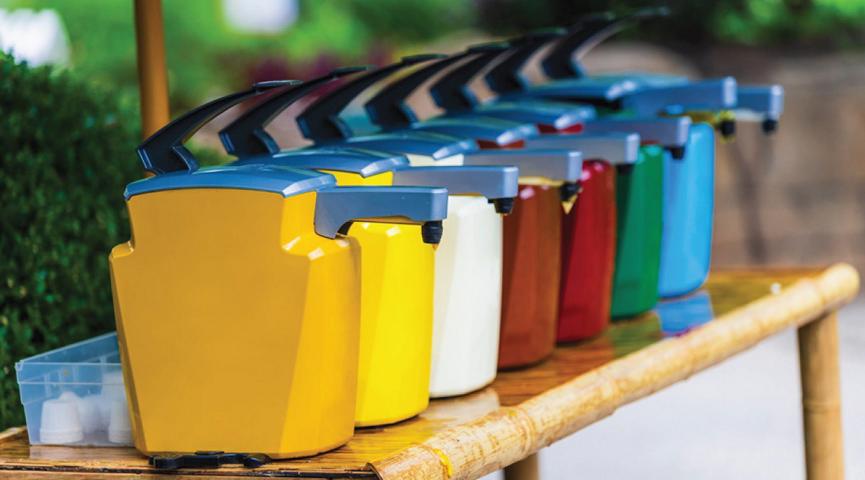

- Acidic foods dispensing such as vinegar, salad dressing, ketchup, mustard, citric acid
- High Staining potential beverage transfer: flavored electrolyte beverages, cold brew coffee, cranberry juice
TYGON® Tube HA-1000 - Diameters and wall thickness
| Art.No. | Ø Inner | Ø Outer | Wall | Inch rounded | Crossref. |
|---|---|---|---|---|---|
| TY1,59HA3,18 | 1,59 mm (1/16") | 3,18 mm (1/8") | 0,79 mm (1/32") | 1,6 x 3,2 x 0,8 mm | AVT00002 |
| TY3,18HA6,35 | 3,18 mm (1/8") | 6,35 mm (1/4") | 1,59 mm (1/16") | 3,2 x 6,4 x 1,6 mm | AVT00007 |
| TY4,76HA7,94 | 4,76 mm (3/16") | 7,94 mm (5/16") | 1,59 mm (1/16") | 4,8 x 8,0 x 1,6 mm | AVT00012 |
| TY6,35HA9,53 | 6,35 mm (1/4") | 9,53 mm (3/8") | 1,59 mm (1/16") | 6,4 x 9,5 x 1,6 mm | AVT00017 |
| TY9,53HA12,7 | 9,53 mm (3/8") | 12,7 mm (1/2") | 1,59 mm (1/16") | 9,5 x 12,7 x 1,6 mm | AVT00027 |
| TY9,53HA15,88 | 9,53 mm (3/8") | 15,88 mm (5/8") | 3,18 mm (1/8") | 9,5 x 15,9 x 3,2 mm | AVT00029 |
| TY12,7HA19,05 | 12,7 mm (1/2") | 19,05 mm (3/4") | 3,18 mm (1/8") | 12,7 x 19,1 x 3,2 mm | AVT00038 |
Typical Physical Properties of Tygon® HA-1000 Tubing
| Property | ASTM Method | Value of Rating |
|---|---|---|
| Durometer Hardness | D2240 | 75° Shore A, 15s |
| Color | - | Clear |
| Tensile Strength | D412 | 13,1 MPa (1.900 psi) |
| Ultimate Elongation | D412 | 850,00% |
| Tear Resistance | D1004 | 42,0 kN/m (240 lb-f/in) |
| Specific Gravity | D792 | 0,9 |
| Compression Set Constant Deflection at 70°C (158°F) for 22 hrs | D395 | Method B 100,00% |
| Maximum Recommended Operating Temperature | - | 54 °C (130°F) |
| Low Temperature Flexibility | - | -75°C (-103°F) |
| Brittleness by Impact Temperature | D746 | -75°C (-103°F) |
| Tensile Stress @100% Elongation | D412 | 2,9 MPa (425 psi) |
| Tensile Set | D412 | 300,00% |
| Water Absorption, % 24 hrs. @ 23°C | D570 | 0.04 |
Unless otherwise noted, all tests were conducted at room temperature 73°F (23°C). Values shown were determined on 0.075" (1.905 mm) thick extruded strip or 0.075" (1.905 mm) thick molded ASTM plaques or molded ASTM durometer buttons.
Relative Chemical Resistance Properties Tygon® HA-1000
| Acids | ||
|---|---|---|
| Conc. | Med. | Weak |
| G | E | E |
| Bases | ||
|---|---|---|
| Conc. | Med. | Weak |
| E | E | E |
| Salts | Alcohol / Ethanol |
|---|---|
| E | E |
Compatibility with Food & Beverage Cleaner & Sanitizers
| Type | Cleaner | Result |
|---|---|---|
| Type A | Sodium Carbonate (10-30%) Sodium Dichlorostriazientrione Dihydrate (6%) | E |
| Type B | Peracetic Acid (6%) | E |
| Type C | Sodium Hydroxide (30-35%) | E |
| Type D | Phosphoric Acid (20- 40%) | G |
| Type E | Quanternary Ammonium Cations | G |
| Type F | Sodium Hypoclorite (10%) | E |
E = Excellent, G = Good, F = Fair, U = Unsatisfactory (All tests conducted at room Temperature)
