Versilon™ R-3400
Versilon™ R-3400 - Protect Light-Sensitive Fluids
Versatility in Chemical Resistance
Ideal for virtually any permanent or temporary chemical transfer application, Versilon™ R-3400 tubing combines suppleness and flexibility with resistance to a wide range of chemicals. It shows exceptional resistance to strong acids and many alkalies. The flexibility of Versilon™ R-3400 tubing also makes it quick and easy to put into service, providing considerable savings on installation time and cost when compared to rigid piping systems.
Outstanding UV Resistance

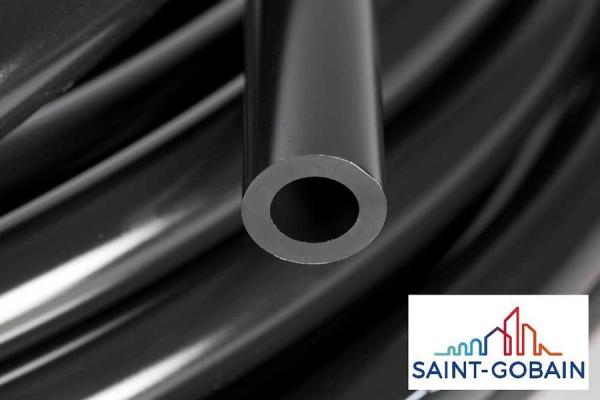

Black in color, Versilon™ R-3400 is resistant to ultraviolet light, ozone and weathering, making it ideal for many outdoor applications. Standard inventoried sizes of Versilon™ R-3400 tubing have sufficient wall thickness to block transmission of all UV light.
Excellent Burn Resistance
Versilon™ R-3400 tubing meets UL 94 V-0 and UL 94 HB flammability ratings. Specifying Versilon™ R-3400 tubing for use in equipment that requires specific burn characteristics can help to simplify the approval process.
Features and benefits
- black in color to protect lightsensitive fluids
- compatible with a wide range of chemicals
- Ozone resistant
- high temperature rating for excellent burn resistance
- low compression set to minimize permanent deformation
- available in clear formulation for fluid flow monitoring
Typical applications
- Acid and caustic transfer
- Corrosive diffusible gases
- Fertilizer and pesticide dispensing
- Electrical insulation lines
- Ink and adhesive dispensing
Versilon™ Tube R-3400 - Diameters and wall thickness
| Art.No. | Ø Inner | Ø Outer | Wall | Inch rounded | Crossref. |
|---|---|---|---|---|---|
| VS1,59UV3,18 | 1,59 mm (1/16") | 3,18 mm (1/8") | 0,79 mm (1/32") | ||
| VS2,38UV5,56 | 2,38 mm (3/32") | 5,56 mm (7/32") | 1,59 mm (1/16") | ||
| VS2,38UV3,97 | 2,38 mm (3/32") | 3,97 mm (5/32") | 0,79 mm (1/32") | 2,4 x 4,0 x 0,8 mm | AAE00004 |
| VS3,18UV6,35 | 3,18 mm (1/8") | 6,35 mm (1/4") | 1,59 mm (1/16") | 3,2 x 6,4 x 1,6 mm | AAE00007 |
| VS3,97UV7,14 | 3,97 mm (5/32") | 7,14 (9/32") | 1,59 mm (1/16") | ||
| VS4,76UV6,35 | 4,76 mm (3/16") | 6,35 mm (1/4") | 0,79 mm (1/32") | ||
| VS4,76UV7,94 | 4,76 mm (3/16") | 7,94 mm (5/16") | 1,59 mm (1/16") | ||
| VS4,76UV9,53 | 4,76 mm (3/16") | 9,53 mm (3/8") | 2,38 mm (3/32") | ||
| VS6,35UV11,11 | 6,35 mm (1/4") | 11,11 mm (7/16") | 2,38 mm (3/32") | 6,4 x 11,1 x 2,4 mm | AAE00018 |
| VS6,35UV9,53 | 6,35 mm (1/4") | 9,53 mm (3/8") | 1,59 mm (1/16") | 6,4 x 9,5 x 1,6 mm | AAE00017 |
| VS7,94UV11,11 | 7,94 mm (5/16") | 11,11 mm (7/16") | 1,59 mm (1/16") | ||
| VS9,53UV12,7 | 9,53 mm (3/8") | 12,7 mm (1/2") | 1,59 mm (1/16") | ||
| VS9,53UV15,88 | 9,53 mm (3/8") | 15,88 mm (5/8") | 3,18 mm (1/8") | ||
| VS11,11UV14,29 | 11,11 mm (7/16") | 14,29 mm (9/16") | 1,59 mm (1/16") | ||
| VS12,7UV19,05 | 12,7 mm (1/2") | 19,05 mm (3/4") | 3,18 mm (1/8") | ||
| VS15,88UV22.23 | 15,88 mm (5/8") | 22,23 mm (7/8") | 3,18 mm (1/8") | ||
| VS19,05UV25,4 | 19,05 mm (3/4") | 25,4 mm (1") | 3,18 mm (1/8") |
Typical Physical Properties of VersilonT R-3400 Tubing
| Property | ASTM Method | Value of Rating |
|---|---|---|
| Durometer Hardness | D2240-02 | 64° Shore A, 15s |
| Color | - | Black |
| Opacity | - | Opaque |
| Tensile Strength | D412-98 | 15,5 MPa (2250 psi) |
| Ultimate Elongation | D412-98 | 350% |
| Tear Resistance | D1004-94 | 32,0 kN/m (185 lb-f/in) |
| Specific Gravity | D792-00 | 1.31 |
| Tensile Stress @100% Elongation | D412-98 | 6,9 MPa (1000 psi) |
| Maximum Recommended Operating Temperature | - | 74 °C (165°F) |
| Brittleness by Impact Temperature | D746-98 | -21°C (-6°F) |
| Water Absorption, % 24 hrs. @ 23°C | D570-98 | 0.19 |
| Compression Set Constant Deflection @70°C for 22 hrs. | D395-02 | Method B 64 % |
| Tensile Set | D412-98 | 56% |
| Dielectric Strength | D149-97 | 19,3 kV/mm (490 v/mil) |
Unless otherwise noted, all tests were conducted at room temperature (73°F). Values shown were determined on 0.075" thick molded ASTM plaques or molded AST durometer buttons.
