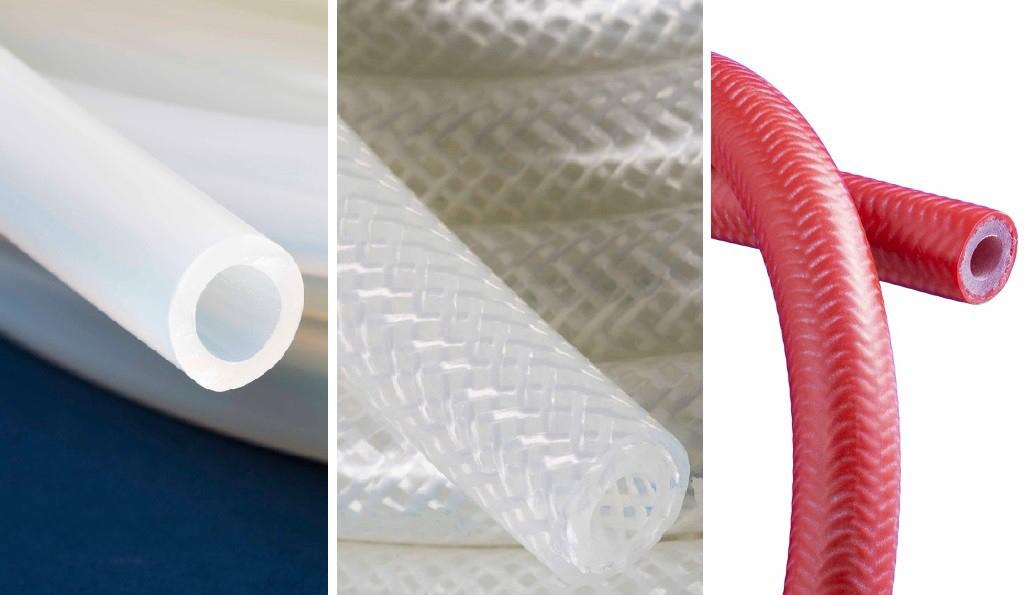

Optiflex Silicone Tubing

Product No.:
Stock:: meter
Download:: Datasheet
Optiflex Silicone

Version:

Ø Inner:

Ø Outer:

Wall:

meter:

You'll receive an offer including delivery time as soon as possible.

Requested quantity can deviate from the minimum order quantity.

Ask about product

Description

Purity and temperature resistance for demanding Applications

Large field of Applications

Laboratory, analytic, pharmaceutical-, medical or food/beverage industries. Due to its properties Optiflex Silicone-Tubing is suitable for many demanding applications. The smooth inner surface reduces the risk of particulate entrapment and microscopic buildup.

Good resistance and suitable for high temperatures

Resists weathering and aging, good resistance against bases and diluted acids, therefore suitable for many cleaning agents. Especially for a soft tubing Optiflex Silicone withstands extreme temperatures of -60°C to +200°C. It is autoclavable and physiologically safe. For use with up to +300°C we offer Optiflex Silicone HT-Tubing.

Regulatory Optiflex Silicone ST

Meets BfR XV and FDA §177.2600. Dimension tolerances according to DIN ISO 3302-1.

Properties Optiflex Silicone ISO

Especially for electrical insulation. Breakdown voltage approx. 18 kV/mm; Volume resistivity approx. 10¹⁵ Ω*cm (Specification VDE 0303)

Other types on request

Even low quantities (>100m depending on the dimensions), we offer custom made Types developed for your demands. Weather medical, produced in Clean room, platin-cured, extra soft or hard or simply in different colors,...please send us your request.

Features and Benefits

meets FDA § 177.2600 & BfR XV
for Temperatures from -60° C to +200°
transparent/translucent
taste and odor free
autoclavable
smooth inner surface
physiologically safe

Typical Applications

Food and Beverage
Cosmetic production
Analytic
Medical- and Pharmaceutical
electric Isolation of Hot Air

Dimensions

Optiflex Silicone Tube - Diameters and wall thickness

Art.No.	Ø Inner	Ø Outer	Wall
SI3,0DT8,0RT	3,0 mm	8,0 mm	2,5 mm
SI4,0DT9,0RT	4,0 mm	9,0 mm	2,5 mm
SI5,0DT11,0RT	5,0 mm	11,0 mm	3,0 mm
SI6,0DT12,0RT	6,0 mm	12,0 mm	3,0 mm
SI7,0DT13,5RT	7,0 mm	13,5 mm	3,25 mm
SI8,0DT14,5RT	8,0 mm	14,5 mm	3,25 mm
SI9,0DT16,0RT	9,0 mm	16,0 mm	3,5 mm
SI10,0DT17,0RT	10,0 mm	17,0 mm	3,5 mm
SI10,0DT18,0RT	10,0 mm	18,0 mm	4,0 mm
SI11,0DT18,0RT	11,0 mm	18,0 mm	3,5 mm
SI12,0DT19,0RT	12,0 mm	19,0 mm	3,5 mm
SI12,0DT20,0RT	12,0 mm	20,0 mm	4,0 mm
SI13,0DT20,0RT	13,0 mm	20,0 mm	3,5 mm
SI15,0DT23,0RT	15,0 mm	23,0 mm	4,0 mm
SI16,0DT24,0RT	16,0 mm	24,0 mm	4,0 mm
SI18,0DT26,0RT	18,0 mm	26,0 mm	4,0 mm
SI19,0DT28,0RT	19,0 mm	28,0 mm	4,5 mm
SI20,0DT30,0RT	20,0 mm	30,0 mm	5,0 mm

Art.No.	Ø Inner	Ø Outer	Wall
SI0,3IS0,5	0,3 mm	0,5 mm	0,1 mm
SI0,3IS0,7	0,3 mm	0,7 mm	0,2 mm
SI0,5IS0,7	0,5 mm	0,7 mm	0,1 mm
SI0,5IS0,9	0,5 mm	0,9 mm	0,1 mm
SI0,5IS1,1	0,5 mm	1,1 mm	0,3 mm
SI0,5IS1,3	0,5 mm	1,3 mm	0,4 mm
SI0,5IS1,5	0,5 mm	1,5 mm	0,5 mm
SI0,5IS2,5	0,5 mm	1,5 mm	1,0 mm
SI0,7IS0,9	0,7 mm	0,9 mm	0,1 mm
SI0,7IS1,1	0,7 mm	1,1 mm	0,2 mm
SI0,7IS1,3	0,7 mm	1,3 mm	0,3 mm
SI0,7IS1,7	0,7 mm	1,7 mm	0,5 mm
SI0,7IS2,1	0,7 mm	2,1 mm	0,7 mm
SI0,8IS1,6	0,8 mm	1,6 mm	0,4 mm
SI1,0IS1,4	1,0 mm	1,4 mm	0,2 mm
SI1,0IS1,8	1,0 mm	1,8 mm	0,4 mm
SI1,0IS2,0	1,0 mm	2,0 mm	0,5 mm
SI1,0IS2,4	1,0 mm	2,4 mm	0,7 mm
SI1,0IS3,0	1,0 mm	3,0 mm	1,0 mm
SI1,0IS4,0	1,0 mm	4,0 mm	1,5 mm
SI1,2IS2,0	1,2 mm	2,0 mm	0,4 mm
SI1,3IS1,7	1,3 mm	1,7 mm	0,2 mm
SI1,5IS1,9	1,5 mm	1,9 mm	0,2 mm
SI1,5IS2,1	1,5 mm	2,1 mm	0,3 mm
SI1,5IS2,3	1,5 mm	2,3 mm	0,4 mm
SI1,5IS2,5	1,5 mm	2,5 mm	0,5 mm
SI1,5IS2,9	1,5 mm	2,9 mm	0,7 mm
SI1,5IS3,5	1,5 mm	3,5 mm	1,0 mm
SI2,0IS2,4	2,0 mm	2,4 mm	0,2 mm
SI2,0IS2,8	2,0 mm	2,8 mm	0,4 mm
SI2,0IS3,0	2,0 mm	3,0 mm	0,5 mm
SI2,0IS3,4	2,0 mm	3,4 mm	0,7 mm
SI2,0IS4,0	2,0 mm	4,0 mm	1,0 mm
SI2,0IS5,0	2,0 mm	5,0 mm	1,5 mm
SI2,5IS2,9	2,5 mm	2,9 mm	0,2 mm
SI2,5IS3,3	2,5 mm	3,3 mm	0,4 mm
SI2,5IS3,5	2,5 mm	3,5 mm	0,5 mm
SI2,5IS4,5	2,5 mm	4,5 mm	1,0 mm
SI2,5IS5,5	2,5 mm	5,5 mm	1,5 mm
SI3,0IS3,6	3,0 mm	3,6 mm	0,3 mm
SI3,0IS3,8	3,0 mm	3,8 mm	0,4 mm
SI3,0IS4,0	3,0 mm	4,0 mm	0,5 mm
SI3,0IS5,0	3,0 mm	5,0 mm	1,0 mm
SI3,0IS6,0	3,0 mm	6,0 mm	1,5 mm
SI3,0IS7,0	3,0 mm	7,0 mm	2,0 mm
SI3,5IS4,3	3,5 mm	4,3 mm	0,4 mm
SI4,0IS5,0	4,0 mm	5,0 mm	0,5 mm
SI4,0IS5,4	4,0 mm	5,4 mm	0,7 mm
SI4,0IS6,0	4,0 mm	6,0 mm	1,0 mm
SI4,0IS8,0	4,0 mm	8,0 mm	2,0 mm
SI5,0IS6,0	5,0 mm	6,0 mm	0,5 mm
SI5,0IS7,0	5,0 mm	7,0 mm	1,0 mm
SI5,0IS8,0	5,0 mm	8,0 mm	1,5 mm
SI5,0IS9,0	5,0 mm	9,0 mm	2,0 mm
SI6,0IS10,0	6,0 mm	10,0 mm	2,0 mm
SI6,0IS12,0	6,0 mm	12,0 mm	3,0 mm
SI6,0IS7,0	6,0 mm	7,0 mm	0,5 mm
SI6,0IS8,0	6,0 mm	8,0 mm	1,0 mm
SI6,0IS9,0	6,0 mm	9,0 mm	1,5 mm
SI7,0IS10,0	7,0 mm	10,0 mm	1,5 mm
SI7,0IS11,0	7,0 mm	11,0 mm	2,0 mm
SI7,0IS8,0	7,0 mm	8,0 mm	0,5 mm
SI7,0IS8,4	7,0 mm	8,4 mm	0,7 mm
SI7,0IS9,0	7,0 mm	9,0 mm	1,0 mm
SI8,0IS10,0	8,0 mm	10,0 mm	1,0 mm
SI8,0IS11,0	8,0 mm	11,0 mm	1,5 mm
SI8,0IS12,0	8,0 mm	12,0 mm	2,0 mm
SI8,0IS9,0	8,0 mm	9,0 mm	0,5 mm
SI9,0IS10,4	9,0 mm	10,4 mm	0,7 mm
SI9,0IS11,0	9,0 mm	11,0 mm	1,0 mm
SI9,0IS12,0	9,0 mm	12,0 mm	1,5 mm
SI9,0IS13,0	9,0 mm	13,0 mm	2,0 mm
SI10,0IS12,0	10,0 mm	12,0 mm	1,0 mm
SI10,0IS13,0	10,0 mm	13,0 mm	1,5 mm
SI10,0IS14,0	10,0 mm	14,0 mm	2,0 mm
SI10,0IS15,0	10,0 mm	15,0 mm	2,5 mm
SI12,0IS14,0	12,0 mm	14,0 mm	1,0 mm
SI12,0IS16,0	12,0 mm	16,0 mm	2,0 mm
SI14,0IS16,0	14,0 mm	16,0 mm	1,0 mm
SI14,0IS18,0	14,0 mm	18,0 mm	2,0 mm
SI15,0IS17,0	15,0 mm	17,0 mm	1,0 mm
SI15,0IS19,0	15,0 mm	19,0 mm	2,0 mm
SI16,0IS18,0	16,0 mm	18,0 mm	1,0 mm
SI16,0IS20,0	16,0 mm	20,0 mm	2,0 mm
SI18,0IS20,0	18,0 mm	20,0 mm	1,0 mm
SI18,0IS22,0	18,0 mm	22,0 mm	2,0 mm
SI20,0IS22,0	20,0 mm	22,0 mm	1,0 mm
SI20,0IS24,0	20,0 mm	24,0 mm	2,0 mm
SI25,0IS27,0	25,0 mm	27,0 mm	1,0 mm
SI25,0IS29,0	25,0 mm	29,0 mm	2,0 mm
SI32,0IS36,0	32,0 mm	36,0 mm	2,0 mm

Art.No.	Ø Inner	Ø Outer	Wall
SI0,5PT1,5	0,5 mm	1,5 mm	0,5 mm
SI0,5PT2,1	0,5 mm	2,1 mm	0,8 mm
SI0,79PT2,38	0,79 mm (1/32")	2,38 mm (3/32")	0,79 mm (1/32")
SI1,0PT2,0	1,0 mm	2,0 mm	0,5 mm
SI1,0PT3,0	1,0 mm	3,0 mm	1,0 mm
SI1,5PT2,5	1,5 mm	2,5 mm	0,5 mm
SI1,5PT3,0	1,5 mm	3,0 mm	0,75 mm
SI1,5PT3,5	1,5 mm	3,5 mm	1,0 mm
SI1,59PT3,18	1,59 mm (1/16")	3,18 mm (1/8")	0,79 mm (1/32")
SI1,59PT4,76	1,59 mm (1/16")	4,76 mm (3/16")	1,59 mm (1/16")
SI2,0PT4,0	2,0 mm	4,0 mm	1,0 mm
SI2,0PT6,0	2,0 mm	6,0 mm	2,0 mm
SI2,38PT3,97	2,38 mm (3/32")	3,97 mm (5/32")	0,79 mm (1/32")
SI3,0PT5,0	3,0 mm	5,0 mm	1,0 mm
SI3,0PT6,0	3,0 mm	6,0 mm	1,5 mm
SI3,0PT7,0	3,0 mm	7,0 mm	2,0 mm
SI3,18PT4,76	3,18 mm (1/8")	4,76 mm (3/16")	0,79 mm (1/32")
SI3,18PT5,2	3,18 mm (1/8")	5,2 mm	1,0 mm
SI3,18PT6,35	3,18 mm (1/8")	6,35 mm (1/4")	1,59 mm (1/16")
SI4,0PT10,0	4,0 mm	10,0 mm	3,0 mm
SI4,0PT5,6	4,0 mm	5,6 mm	0,8 mm
SI4,0PT6,0	4,0 mm	6,0 mm	1,0 mm
SI4,0PT7,0	4,0 mm	7,0 mm	1,5 mm
SI4,0PT8,0	4,0 mm	8,0 mm	2,0 mm
SI4,76PT6,35	4,76 mm (3/16")	6,35 mm (1/4")	0,79 mm (1/32")
SI4,76PT7,94	4,76 mm (3/16")	7,94 mm (5/16")	1,59 mm (1/16")
SI4,76PT9,53	4,76 mm (3/16")	9,53 mm (3/8")	2,38 mm (3/32")
SI5,0PT10,0	5,0 mm	10,0 mm	2,5 mm
SI5,0PT7,0	5,0 mm	7,0 mm	1,0 mm
SI5,0PT8,0	5,0 mm	8,0 mm	1,5 mm
SI5,0PT9,0	5,0 mm	9,0 mm	2,0 mm
SI6,0PT10,0	6,0 mm	10,0 mm	2,0 mm
SI6,0PT12,0	6,0 mm	12,0 mm	3,0 mm
SI6,0PT8,0	6,0 mm	8,0 mm	1,0 mm
SI6,0PT9,0	6,0 mm	9,0 mm	1,5 mm
SI6,35PT11,11	6,35 mm (1/4")	11,11 mm (7/16")	2,38 mm (3/32")
SI6,35PT12,7	6,35 mm (1/4")	12,7 mm (1/2")	3,18 mm (1/8")
SI6,35PT7,94	6,35 mm (1/4")	7,94 mm (5/16")	0,79 mm (1/32")
SI6,35PT9,53	6,35 mm (1/4")	9,53 mm (3/8")	1,59 mm (1/16")
SI7,0PT10,0	7,0 mm	10,0 mm	1,5 mm
SI7,0PT11,0	7,0 mm	11,0 mm	2,0 mm
SI7,94PT11,11	7,94 mm (5/16")	11,11 mm (7/16")	1,59 mm (1/16")
SI7,94PT12,7	7,94 mm (5/16")	12,7 mm (1/2")	2,38 mm (3/32")
SI8,0PT10,0	8,0 mm	10,0 mm	1,0 mm
SI8,0PT12,0	8,0 mm	12,0 mm	2,0 mm
SI8,0PT13,0	8,0 mm	13,0 mm	2,5 mm
SI8,0PT14,0	8,0 mm	14,0 mm	3,0 mm
SI8,0PT16,0	8,0 mm	16,0 mm	4,0 mm
SI9,0PT13,0	9,0 mm	13,0 mm	2,0 mm
SI9,0PT15,0	9,0 mm	15,0 mm	3,0 mm
SI9,53PT12,7	9,53 mm (3/8")	12,7 mm (1/2")	1,59 mm (1/16")
SI9,53PT14,29	9,53 mm (3/8")	14,29 mm (9/16")	2,38 mm (3/32")
SI9,53PT15,88	9,53 mm (3/8")	15,88 mm (5/8")	3,18 mm (1/8")
SI10,0PT12,0	10,0 mm	12,0 mm	1,0 mm
SI10,0PT14,0	10,0 mm	14,0 mm	2,0 mm
SI10,0PT15,0	10,0 mm	15,0 mm	2,5 mm
SI10,0PT16,0	10,0 mm	16,0 mm	3,0 mm
SI10,0PT18,0	10,0 mm	18,0 mm	4,0 mm
SI12,0PT16,0	12,0 mm	16,0 mm	2,0 mm
SI12,7PT15,88	12,7 mm (1/2")	15,88 mm (5/8")	1,59 mm (1/16")
SI12,7PT17,46	12,7 mm (1/2")	17,46 mm (11/16")	2,38 mm (3/32")
SI12,7PT19,05	12,7 mm (1/2")	19,05 mm (3/4")	3,18 mm (1/8")
SI13,0PT19,0	13,0 mm	19,0 mm	3,0 mm
SI15,0PT21,0	15,0 mm	21,0 mm	3,0 mm
SI15,88PT20,64	15,88 mm (5/8")	20,64 (13/16")	2,38 mm (3/32")
SI16,0PT22,0	16,0 mm	22,0 mm	3,0 mm
SI19,05PT25,4	19,05 mm (3/4")	25,4 mm (1")	3,18 mm (1/8")
SI20,0PT26,0	20,0 mm	26,0 mm	3,0 mm
SI22,0PT28,0	22,0 mm	28,0 mm	3,0 mm
SI25,0PT31,0	25,0 mm	31,0 mm	3,0 mm

Art.No.	Ø Inner	Ø Outer	Wall
SI0,5ST2,5	0,5 mm	2,5 mm	1,0 mm
SI1,0ST1,8	1,0 mm	1,8 mm	0,4 mm
SI1,0ST2,0	1,0 mm	2,0 mm	0,5 mm
SI1,0ST3,0	1,0 mm	3,0 mm	1,0 mm
SI1,0ST4,0	1,0 mm	4,0 mm	1,5 mm
SI1,5ST2,5	1,5 mm	2,5 mm	0,5 mm
SI1,5ST3,0	1,5 mm	3,0 mm	0,75 mm
SI1,5ST3,5	1,5 mm	3,5 mm	1,0 mm
SI2,0ST3,0	2,0 mm	3,0 mm	0,5 mm
SI2,0ST4,0	2,0 mm	4,0 mm	1,0 mm
SI2,0ST5,0	2,0 mm	5,0 mm	1,5 mm
SI2,0ST6,0	2,0 mm	6,0 mm	2,0 mm
SI2,5ST3,5	2,5 mm	3,5 mm	0,5 mm
SI2,5ST6,5	2,5 mm	6,5 mm	2,0 mm
SI3,0ST4,0	3,0 mm	4,0 mm	0,5 mm
SI3,0ST5,0	3,0 mm	5,0 mm	1,0 mm
SI3,0ST6,0	3,0 mm	6,0 mm	1,5 mm
SI3,0ST7,0	3,0 mm	7,0 mm	2,0 mm
SI3,5ST6,5	3,5 mm	6,5 mm	1,5 mm
SI4,0ST10,0	4,0 mm	10,0 mm	3,0 mm
SI4,0ST12,0	4,0 mm	12,0 mm	4,0 mm
SI4,0ST5,0	4,0 mm	5,0 mm	0,5 mm
SI4,0ST6,0	4,0 mm	6,0 mm	1,0 mm
SI4,0ST7,0	4,0 mm	7,0 mm	1,5 mm
SI4,0ST8,0	4,0 mm	8,0 mm	2,0 mm
SI4,0ST9,0	4,0 mm	9,0 mm	2,5 mm
SI4,5ST5,5	4,5 mm	5,5 mm	0,5 mm
SI5,0ST10,0	5,0 mm	10,0 mm	2,5 mm
SI5,0ST11,0	5,0 mm	11,0 mm	3,0 mm
SI5,0ST13,0	5,0 mm	13,0 mm	4,0 mm
SI5,0ST6,0	5,0 mm	6,0 mm	0,5 mm
SI5,0ST7,0	5,0 mm	7,0 mm	1,0 mm
SI5,0ST8,0	5,0 mm	8,0 mm	1,5 mm
SI5,0ST9,0	5,0 mm	9,0 mm	2,0 mm
SI6,0ST10,0	6,0 mm	10,0 mm	2,0 mm
SI6,0ST12,0	6,0 mm	12,0 mm	3,0 mm
SI6,0ST14,0	6,0 mm	14,0 mm	4,0 mm
SI6,0ST7,0	6,0 mm	7,0 mm	0,5 mm
SI6,0ST8,0	6,0 mm	8,0 mm	1,0 mm
SI6,0ST9,0	6,0 mm	9,0 mm	1,5 mm
SI7,0ST10,0	7,0 mm	10,0 mm	1,5 mm
SI7,0ST11,0	7,0 mm	11,0 mm	2,0 mm
SI7,0ST13,0	7,0 mm	13,0 mm	3,0 mm
SI7,0ST8,4	7,0 mm	8,4 mm	0,7 mm
SI7,0ST9,0	7,0 mm	9,0 mm	1,0 mm
SI8,0ST10,0	8,0 mm	10,0 mm	1,0 mm
SI8,0ST11,0	8,0 mm	11,0 mm	1,5 mm
SI8,0ST12,0	8,0 mm	12,0 mm	2,0 mm
SI8,0ST14,0	8,0 mm	14,0 mm	3,0 mm
SI8,0ST16,0	8,0 mm	16,0 mm	4,0 mm
SI9,0ST13,0	9,0 mm	13,0 mm	2,0 mm
SI10,0ST12,0	10,0 mm	12,0 mm	1,0 mm
SI10,0ST13,0	10,0 mm	13,0 mm	1,5 mm
SI10,0ST14,0	10,0 mm	14,0 mm	2,0 mm
SI10,0ST15,0	10,0 mm	15,0 mm	2,5 mm
SI10,0ST16,0	10,0 mm	16,0 mm	3,0 mm
SI10,0ST18,0	10,0 mm	18,0 mm	4,0 mm
SI10,0ST20,0	10,0 mm	20,0 mm	5,0 mm
SI11,0ST15,0	11,0 mm	15,0 mm	2,0 mm
SI12,0ST14,0	12,0 mm	14,0 mm	1,0 mm
SI12,0ST16,0	12,0 mm	16,0 mm	2,0 mm
SI12,0ST18,0	12,0 mm	18,0 mm	3,0 mm
SI12,0ST20,0	12,0 mm	20,0 mm	4,0 mm
SI13,0ST17,0	13,0 mm	17,0 mm	2,0 mm
SI13,0ST19,0	13,0 mm	19,0 mm	3,0 mm
SI14,0ST18,0	14,0 mm	18,0 mm	2,0 mm
SI14,0ST20,0	14,0 mm	20,0 mm	3,0 mm
SI15,0ST19,0	15,0 mm	19,0 mm	2,0 mm
SI15,0ST21,0	15,0 mm	21,0 mm	3,0 mm
SI15,0ST25,0	15,0 mm	25,0 mm	5,0 mm
SI16,0ST20,0	16,0 mm	20,0 mm	1,0 mm
SI16,0ST22,0	16,0 mm	22,0 mm	3,0 mm
SI16,0ST24,0	16,0 mm	24,0 mm	4,0 mm
SI17,0ST25,0	17,0 mm	25,0 mm	4,0 mm
SI18,0ST22,0	18,0 mm	22,0 mm	2,0 mm
SI18,0ST24,0	18,0 mm	24,0 mm	3,0 mm
SI19,0ST25,0	19,0 mm	25,0 mm	3,0 mm
SI19,0ST27,0	19,0 mm	27,0 mm	4,0 mm
SI20,0ST22,0	20,0 mm	22,0 mm	1,0 mm
SI20,0ST26,0	20,0 mm	26,0 mm	3,0 mm
SI20,0ST27,0	20,0 mm	27,0 mm	3,5 mm
SI20,0ST28,0	20,0 mm	28,0 mm	4,0 mm
SI20,0ST30,0	20,0 mm	30,0 mm	5,0 mm
SI22,0ST26,0	22,0 mm	26,0 mm	2,0 mm
SI22,0ST30,0	22,0 mm	30,0 mm	4,0 mm
SI25,0ST27,0	25,0 mm	27,0 mm	1,0 mm
SI25,0ST29,0	25,0 mm	29,0 mm	2,0 mm
SI25,0ST31,0	25,0 mm	31,0 mm	3,0 mm
SI25,0ST33,0	25,0 mm	33,0 mm	4,0 mm
SI25,0ST35,0	25,0 mm	35,0 mm	5,0 mm
SI25,0ST37,0	25,0 mm	37,0 mm	6,0 mm
SI30,0ST36,0	30,0 mm	36,0 mm	3,0 mm
SI30,0ST40,0	30,0 mm	40,0 mm	5,0 mm
SI32,0ST36,0	32,0 mm	36,0 mm	2,0 mm
SI32,0ST38,0	32,0 mm	38,0 mm	3,0 mm
SI35,0ST45,0	35,0 mm	45,0 mm	5,0 mm
SI40,0ST50,0	40,0 mm	50,0 mm	5,0 mm
SI45,0ST55,0	45,0 mm	55,0 mm	5,0 mm
SI50,0ST60,0	50,0 mm	60,0 mm	5,0 mm

Art.No.	Ø Inner	Ø Outer	Wall
SI3,0DT9,0	3,0 mm	9,0 mm	3,0 mm
SI4,0DT10,0	4,0 mm	10,0 mm	3,0 mm
SI4,0DT9,4	4,0 mm	9,4 mm	2,7 mm
SI5,0DT11,0	5,0 mm	11,0 mm	3,0 mm
SI6,0DT12,0	6,0 mm	12,0 mm	3,0 mm
SI8,0DT15,0	8,0 mm	15,0 mm	3,5 mm
SI10,0DT17,0	10,0 mm	17,0 mm	3,5 mm
SI12,5DT19,5	12,5 mm	19,5 mm	3,5 mm
SI14,0DT22,0	14,0 mm	22,0 mm	4,0 mm
SI16,0DT26,0	16,0 mm	26,0 mm	5,0 mm
SI19,0DT30,0	19,0 mm	30,0 mm	5,5 mm
SI25,0DT37,0	25,0 mm	37,0 mm	6,0 mm

Physical properties

Typical Physical Properties of Optiflex Silicone-Tubing

Property	Optiflex Silicone ST	Optiflex Silicone Druck	Optiflex Silicone Druck rot	Optiflex Silicone Iso
Property	60° Shore A	70° Shore A	70° Shore A	60° Shore A
Hardness	translucent	translucent	inner transluzent outer red	translucent
Color	-60° C to +200°	-60° C to +200°	-60° C to +180°	-60° C to +180°
Working Temperature	1,2 g/cm3	1,13 g/cm3	1,16 g/cm3	1,19 g/cm3
Specific Gravity	11 N/mm2	10 N/mm2	11,3 N/mm2	-
Tensile Strength	545,00%	430,00%	500,00%	≥300%
Ultimate Elongation	24 N/mm	21 N/mm	25 N/mm	-
Tear Propagation Strength	35,00%	35,00%	35,00%	-
Compression set Constant Deflection, 22 hrs. @ 175°C	~18 kV/mm	-	-	~18 kV/mm
Volume resistivity	~1015 Ω*cm	-	-	~1015 Ω*cm
