Straight tubing connector

The firm flexible Tubing is pushed over the integrated barbed side. It is fixed by knurled nut which presses a cutting ring to a sealing which forms a tightness for the connection. The shear force of the cutting ring intensifies the contact pressure. A solid, friction-locked, leak-tight and removable connection with low dead volume is the result.

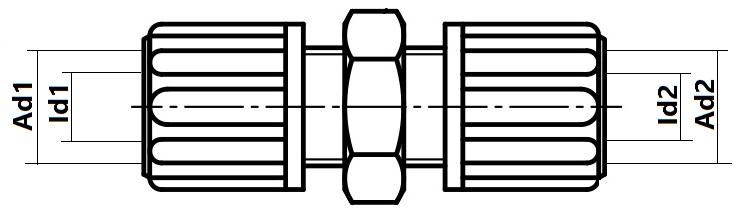

Id1 = Inner-Ø

Ad1 = Outer-Ø

Id2 = Inner-Ø

Dimensions

Diameters

Art.No.	Version	Ø Inner	Ø Outer	Ø Inner 2	Ø Outer 2
PFGV0001	PFA	3,18 mm (1/8")	6,35 mm (1/4")	3,18 mm (1/8")	6,35 mm (1/4")
PFGV0002	PFA	3,18 mm (1/8")	6,35 mm (1/4")	6,0 mm	8,0 mm
PFGV0003	PFA	3,18 mm (1/8")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
PFGV0004	PFA	3,97 mm (5/32")	6,35 mm (1/4")	4,0 mm	6,0 mm
PFGV0005	PFA	3,97 mm (5/32")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
PFGV0006	PFA	4,0 mm	6,0 mm	4,0 mm	6,0 mm
PFGV0007	PFA	4,0 mm	6,0 mm	4,23 mm (1/6")	6,35 mm (1/4")
PFGV0008	PFA	4,0 mm	6,0 mm	5,0 mm	8,0 mm
PFGV0009	PFA	4,0 mm	6,0 mm	6,0 mm	8,0 mm
PFGV0010	PFA	4,0 mm	6,0 mm	6,0 mm	10,0 mm
PFGV0011	PFA	4,0 mm	6,0 mm	8,0 mm	10,0 mm
PFGV0012	PFA	4,0 mm	6,0 mm	8,0 mm	12,0 mm
PFGV0013	PFA	4,0 mm	6,0 mm	10,0 mm	12,0 mm
PFGV0017	PFA	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
PFGV0018	PFA	4,23 mm (1/6")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
PFGV0019	PFA	5,0 mm	8,0 mm	5,0 mm	8,0 mm
PFGV0014	PFA	6,0 mm	8,0 mm	8,0 mm	10,0 mm
PFGV0015	PFA	6,0 mm	8,0 mm	10,0 mm	12,0 mm
PFGV0016	PFA	6,0 mm	10,0 mm	6,0 mm	10,0 mm
PFGV0020	PFA	6,0 mm	8,0 mm	6,0 mm	8,0 mm
PFGV0021	PFA	6,0 mm	8,0 mm	6,35 mm (1/4")	9,53 mm (3/8")
PFGV0022	PFA	6,0 mm	8,0 mm	8,0 mm	12,0 mm
PFGV0023	PFA	6,0 mm	9,0 mm	6,0 mm	9,0 mm
PFGV0024	PFA	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")
PFGV0025	PFA	6,35 mm (1/4")	9,53 mm (3/8")	3,97 mm (5/32")	6,35 mm (1/4")
PFGV0026	PFA	6,35 mm (1/4")	9,53 mm (3/8")	4,23 mm (1/6")	6,35 mm (1/4")
PFGV0027	PFA	6,35 mm (1/4")	9,53 mm (3/8")	9,53 mm (3/8")	12,7 mm (1/2")
PFGV0028	PFA	6,35 mm (1/4")	9,53 mm (3/8")	10,0 mm	12,0 mm
PFGV0029	PFA	7,94 mm (5/16")	9,53 mm (3/8")	7,94 mm (5/16")	9,53 mm (3/8")
PFGV0030	PFA	8,0 mm	10,0 mm	8,0 mm	10,0 mm
PFGV0031	PFA	8,0 mm	10,0 mm	9,53 mm (3/8")	12,7 mm (1/2")
PFGV0032	PFA	8,0 mm	10,0 mm	10,0 mm	12,0 mm
PFGV0033	PFA	8,0 mm	10,0 mm	10,0 mm	14,0 mm
PFGV0034	PFA	8,0 mm	10,0 mm	16,0 mm	18,0 mm
PFGV0035	PFA	8,0 mm	12,0 mm	8,0 mm	12,0 mm
PFGV0036	PFA	9,0 mm	12,0 mm	9,0 mm	12,0 mm
PFGV0037	PFA	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")
PFGV0038	PFA	9,53 mm (3/8")	12,7 mm (1/2")	10,0 mm	12,0 mm
PFGV0039	PFA	9,53 mm (3/8")	12,7 mm (1/2")	15,88 mm (5/8")	19,05 mm (3/4")
PFGV0040	PFA	10,0 mm	12,0 mm	10,0 mm	12,0 mm
PFGV0041	PFA	10,0 mm	12,0 mm	12,0 mm	14,0 mm
PFGV0042	PFA	10,0 mm	14,0 mm	10,0 mm	14,0 mm
PFGV0043	PFA	12,0 mm	14,0 mm	12,0 mm	14,0 mm
PFGV0044	PFA	12,0 mm	16,0 mm	12,0 mm	16,0 mm
PFGV0045	PFA	14,0 mm	16,0 mm	14,0 mm	16,0 mm
PFGV0046	PFA	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")
PFGV0047	PFA	16,0 mm	20,0 mm	16,0 mm	20,0 mm
PFGV0048	PFA	18,0 mm	20,0 mm	18,0 mm	20,0 mm

Art.No.	Version	Ø Inner	Ø Outer	Ø Inner 2	Ø Outer 2
PPGV0001	PP	3,97 mm (5/32")	6,35 mm (1/4")	4,0 mm	6,0 mm
PPGV0004	PP	4,0 mm	6,0 mm	4,0 mm	6,0 mm
PPGV0005	PP	4,0 mm	6,0 mm	6,0 mm	8,0 mm
PPGV0002	PP	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
PPGV0003	PP	4,23 mm (1/6")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
PPGV0006	PP	5,0 mm	8,0 mm	5,0 mm	8,0 mm
PPGV0007	PP	9,53 mm (3/8")	12,7 mm (1/2")	15,88 mm (5/8")	19,05 mm (3/4")

Art.No.	Version	Ø Inner	Ø Outer	Ø Inner 2	Ø Outer 2
PVGV0001	PVDF	3,18 mm (1/8")	6,35 mm (1/4")	3,18 mm (1/8")	6,35 mm (1/4")
PVGV0002	PVDF	3,18 mm (1/8")	6,35 mm (1/4")	6,0 mm	8,0 mm
PVGV0003	PVDF	3,18 mm (1/8")	6,35 mm (1/4")	9,53 mm (3/8")	12,7 mm (1/2")
PVGV0004	PVDF	3,97 mm (5/32")	6,35 mm (1/4")	3,97 mm (5/32")	6,35 mm (1/4")
PVGV0005	PVDF	3,97 mm (5/32")	6,35 mm (1/4")	4,0 mm	6,0 mm
PVGV0006	PVDF	4,0 mm	6,0 mm	4,0 mm	6,0 mm
PVGV0007	PVDF	4,0 mm	6,0 mm	6,0 mm	8,0 mm
PVGV0008	PVDF	4,0 mm	6,0 mm	6,0 mm	10,0 mm
PVGV0009	PVDF	4,0 mm	6,0 mm	6,35 mm (1/4")	9,53 mm (3/8")
PVGV0010	PVDF	4,0 mm	6,0 mm	8,0 mm	10,0 mm
PVGV0011	PVDF	4,0 mm	6,0 mm	8,0 mm	12,0 mm
PVGV0012	PVDF	4,0 mm	6,0 mm	9,0 mm	12,0 mm
PVGV0013	PVDF	4,0 mm	6,0 mm	10,0 mm	12,0 mm
PVGV0014	PVDF	4,23 mm (1/6")	6,35 mm (1/4")	4,0 mm	6,0 mm
PVGV0015	PVDF	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
PVGV0016	PVDF	4,23 mm (1/6")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
PVGV0017	PVDF	5,0 mm	8,0 mm	5,0 mm	8,0 mm
PVGV0018	PVDF	6,0 mm	8,0 mm	6,0 mm	8,0 mm
PVGV0019	PVDF	6,0 mm	8,0 mm	6,35 mm (1/4")	9,53 mm (3/8")
PVGV0020	PVDF	6,0 mm	8,0 mm	6,0 mm	10,0 mm
PVGV0021	PVDF	6,0 mm	8,0 mm	8,0 mm	10,0 mm
PVGV0022	PVDF	6,0 mm	8,0 mm	8,0 mm	12,0 mm
PVGV0023	PVDF	6,0 mm	8,0 mm	9,53 mm (3/8")	12,7 mm (1/2")
PVGV0024	PVDF	6,0 mm	8,0 mm	10,0 mm	12,0 mm
PVGV0025	PVDF	6,0 mm	9,0 mm	6,0 mm	9,0 mm
PVGV0026	PVDF	6,0 mm	10,0 mm	6,0 mm	10,0 mm
PVGV0027	PVDF	6,0 mm	10,0 mm	10,0 mm	12,0 mm
PVGV0028	PVDF	6,35 mm (1/4")	9,53 mm (3/8")	8,0 mm	10,0 mm
PVGV0029	PVDF	8,0 mm	10,0 mm	8,0 mm	10,0 mm
PVGV0030	PVDF	8,0 mm	10,0 mm	10,0 mm	12,0 mm
PVGV0031	PVDF	8,0 mm	12,0 mm	8,0 mm	12,0 mm
PVGV0032	PVDF	9,0 mm	12,0 mm	9,0 mm	12,0 mm
PVGV0033	PVDF	9,53 mm (3/8")	12,7 mm (1/2")	8,0 mm	10,0 mm
PVGV0034	PVDF	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")
PVGV0035	PVDF	9,53 mm (3/8")	12,7 mm (1/2")	10,0 mm	12,0 mm
PVGV0036	PVDF	10,0 mm	12,0 mm	10,0 mm	12,0 mm
PVGV0037	PVDF	12,0 mm	14,0 mm	12,0 mm	14,0 mm
PVGV0038	PVDF	12,0 mm	16,0 mm	12,0 mm	16,0 mm
PVGV0039	PVDF	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")
