Gerade Schlauchverschraubung

Art.Nr.:
Lagerbestand:: Stück
Download:: Datenblatt
Gerade Schlauchverschraubung

Variante:

Ø Innen:

Ø Außen:

Ø Innen 2:

Ø Außen 2:

Stück:

Preis und Lieferzeit werden Ihnen nach Anfragen des Artikels schnellstmöglich mitgeteilt.

Wunschmenge kann von Mindestabnahmemenge abweichen.

Frage zum Produkt

Beschreibung

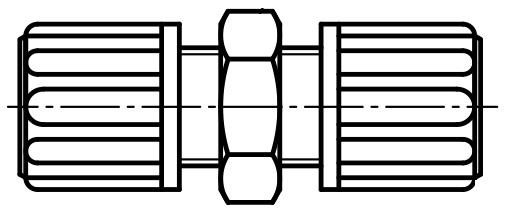

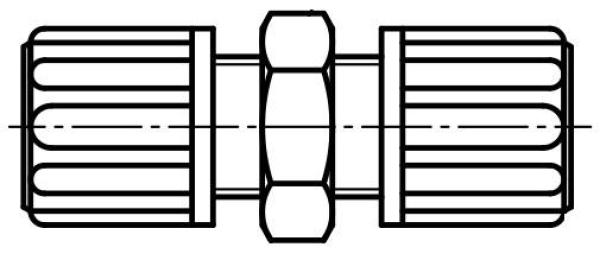

Gerader Schlauchverbinder - Verschraubung

Der feste Schlauch bzw. das Kunststoffrohr wird auf die integrierte Tülle geschoben. Mittels der Rändelmutter wird ein Schneidring angezogen, der den Schlauch klemmt. Ein Dichtring verschließt die Verbindung. Es entsteht eine kraft-schlüssige, dichte und wieder lösbare Verbindung mit geringem Totvolumen.

Id1 = Innen-Ø

Ad1 = Außen-Ø

Id2 = Innen-Ø

Ad2 = Außen-Ø

Material:

PFA
PVDF
Polypropylen

Abmessungen

Durchmesser

pn_columntitle	Art.Nr.	Ø Innen	Ø Außen	Ø Innen 2. Seite	Ø Außen 2. Seite
pn_name	PFGV0001	3,18 mm (1/8")	6,35 mm (1/4")	3,18 mm (1/8")	6,35 mm (1/4")
pn_name	PFGV0002	3,18 mm (1/8")	6,35 mm (1/4")	6,0 mm	8,0 mm
pn_name	PFGV0003	3,18 mm (1/8")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PFGV0004	3,97 mm (5/32")	6,35 mm (1/4")	4,0 mm	6,0 mm
pn_name	PFGV0005	3,97 mm (5/32")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PFGV0006	4,0 mm	6,0 mm	4,0 mm	6,0 mm
pn_name	PFGV0007	4,0 mm	6,0 mm	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PFGV0008	4,0 mm	6,0 mm	5,0 mm	8,0 mm
pn_name	PFGV0009	4,0 mm	6,0 mm	6,0 mm	8,0 mm
pn_name	PFGV0010	4,0 mm	6,0 mm	6,0 mm	10,0 mm
pn_name	PFGV0011	4,0 mm	6,0 mm	8,0 mm	10,0 mm
pn_name	PFGV0012	4,0 mm	6,0 mm	8,0 mm	12,0 mm
pn_name	PFGV0013	4,0 mm	6,0 mm	10,0 mm	12,0 mm
pn_name	PFGV0017	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PFGV0018	4,23 mm (1/6")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PFGV0019	5,0 mm	8,0 mm	5,0 mm	8,0 mm
pn_name	PFGV0014	6,0 mm	8,0 mm	8,0 mm	10,0 mm
pn_name	PFGV0015	6,0 mm	8,0 mm	10,0 mm	12,0 mm
pn_name	PFGV0016	6,0 mm	10,0 mm	6,0 mm	10,0 mm
pn_name	PFGV0020	6,0 mm	8,0 mm	6,0 mm	8,0 mm
pn_name	PFGV0021	6,0 mm	8,0 mm	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PFGV0022	6,0 mm	8,0 mm	8,0 mm	12,0 mm
pn_name	PFGV0023	6,0 mm	9,0 mm	6,0 mm	9,0 mm
pn_name	PFGV0024	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PFGV0025	6,35 mm (1/4")	9,53 mm (3/8")	3,97 mm (5/32")	6,35 mm (1/4")
pn_name	PFGV0026	6,35 mm (1/4")	9,53 mm (3/8")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PFGV0027	6,35 mm (1/4")	9,53 mm (3/8")	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PFGV0028	6,35 mm (1/4")	9,53 mm (3/8")	10,0 mm	12,0 mm
pn_name	PFGV0029	7,94 mm (5/16")	9,53 mm (3/8")	7,94 mm (5/16")	9,53 mm (3/8")
pn_name	PFGV0030	8,0 mm	10,0 mm	8,0 mm	10,0 mm
pn_name	PFGV0031	8,0 mm	10,0 mm	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PFGV0032	8,0 mm	10,0 mm	10,0 mm	12,0 mm
pn_name	PFGV0033	8,0 mm	10,0 mm	10,0 mm	14,0 mm
pn_name	PFGV0034	8,0 mm	10,0 mm	16,0 mm	18,0 mm
pn_name	PFGV0035	8,0 mm	12,0 mm	8,0 mm	12,0 mm
pn_name	PFGV0036	9,0 mm	12,0 mm	9,0 mm	12,0 mm
pn_name	PFGV0037	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PFGV0038	9,53 mm (3/8")	12,7 mm (1/2")	10,0 mm	12,0 mm
pn_name	PFGV0039	9,53 mm (3/8")	12,7 mm (1/2")	15,88 mm (5/8")	19,05 mm (3/4")
pn_name	PFGV0040	10,0 mm	12,0 mm	10,0 mm	12,0 mm
pn_name	PFGV0041	10,0 mm	12,0 mm	12,0 mm	14,0 mm
pn_name	PFGV0042	10,0 mm	14,0 mm	10,0 mm	14,0 mm
pn_name	PFGV0043	12,0 mm	14,0 mm	12,0 mm	14,0 mm
pn_name	PFGV0044	12,0 mm	16,0 mm	12,0 mm	16,0 mm
pn_name	PFGV0045	14,0 mm	16,0 mm	14,0 mm	16,0 mm
pn_name	PFGV0046	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")
pn_name	PFGV0047	16,0 mm	20,0 mm	16,0 mm	20,0 mm
pn_name	PFGV0048	18,0 mm	20,0 mm	18,0 mm	20,0 mm

pn_columntitle	Art.Nr.	Ø Innen	Ø Außen	Ø Innen 2. Seite	Ø Außen 2. Seite
pn_name	PPGV0001	3,97 mm (5/32")	6,35 mm (1/4")	4,0 mm	6,0 mm
pn_name	PPGV0004	4,0 mm	6,0 mm	4,0 mm	6,0 mm
pn_name	PPGV0005	4,0 mm	6,0 mm	6,0 mm	8,0 mm
pn_name	PPGV0002	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PPGV0003	4,23 mm (1/6")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PPGV0006	5,0 mm	8,0 mm	5,0 mm	8,0 mm
pn_name	PPGV0007	9,53 mm (3/8")	12,7 mm (1/2")	15,88 mm (5/8")	19,05 mm (3/4")

pn_columntitle	Art.Nr.	Ø Innen	Ø Außen	Ø Innen 2. Seite	Ø Außen 2. Seite
pn_name	PVGV0001	3,18 mm (1/8")	6,35 mm (1/4")	3,18 mm (1/8")	6,35 mm (1/4")
pn_name	PVGV0002	3,18 mm (1/8")	6,35 mm (1/4")	6,0 mm	8,0 mm
pn_name	PVGV0003	3,18 mm (1/8")	6,35 mm (1/4")	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PVGV0004	3,97 mm (5/32")	6,35 mm (1/4")	3,97 mm (5/32")	6,35 mm (1/4")
pn_name	PVGV0005	3,97 mm (5/32")	6,35 mm (1/4")	4,0 mm	6,0 mm
pn_name	PVGV0006	4,0 mm	6,0 mm	4,0 mm	6,0 mm
pn_name	PVGV0007	4,0 mm	6,0 mm	6,0 mm	8,0 mm
pn_name	PVGV0008	4,0 mm	6,0 mm	6,0 mm	10,0 mm
pn_name	PVGV0009	4,0 mm	6,0 mm	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PVGV0010	4,0 mm	6,0 mm	8,0 mm	10,0 mm
pn_name	PVGV0011	4,0 mm	6,0 mm	8,0 mm	12,0 mm
pn_name	PVGV0012	4,0 mm	6,0 mm	9,0 mm	12,0 mm
pn_name	PVGV0013	4,0 mm	6,0 mm	10,0 mm	12,0 mm
pn_name	PVGV0014	4,23 mm (1/6")	6,35 mm (1/4")	4,0 mm	6,0 mm
pn_name	PVGV0015	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PVGV0016	4,23 mm (1/6")	6,35 mm (1/4")	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PVGV0017	5,0 mm	8,0 mm	5,0 mm	8,0 mm
pn_name	PVGV0018	6,0 mm	8,0 mm	6,0 mm	8,0 mm
pn_name	PVGV0019	6,0 mm	8,0 mm	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PVGV0020	6,0 mm	8,0 mm	6,0 mm	10,0 mm
pn_name	PVGV0021	6,0 mm	8,0 mm	8,0 mm	10,0 mm
pn_name	PVGV0022	6,0 mm	8,0 mm	8,0 mm	12,0 mm
pn_name	PVGV0023	6,0 mm	8,0 mm	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PVGV0024	6,0 mm	8,0 mm	10,0 mm	12,0 mm
pn_name	PVGV0025	6,0 mm	9,0 mm	6,0 mm	9,0 mm
pn_name	PVGV0026	6,0 mm	10,0 mm	6,0 mm	10,0 mm
pn_name	PVGV0027	6,0 mm	10,0 mm	10,0 mm	12,0 mm
pn_name	PVGV0028	6,35 mm (1/4")	9,53 mm (3/8")	8,0 mm	10,0 mm
pn_name	PVGV0029	8,0 mm	10,0 mm	8,0 mm	10,0 mm
pn_name	PVGV0030	8,0 mm	10,0 mm	10,0 mm	12,0 mm
pn_name	PVGV0031	8,0 mm	12,0 mm	8,0 mm	12,0 mm
pn_name	PVGV0032	9,0 mm	12,0 mm	9,0 mm	12,0 mm
pn_name	PVGV0033	9,53 mm (3/8")	12,7 mm (1/2")	8,0 mm	10,0 mm
pn_name	PVGV0034	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PVGV0035	9,53 mm (3/8")	12,7 mm (1/2")	10,0 mm	12,0 mm
pn_name	PVGV0036	10,0 mm	12,0 mm	10,0 mm	12,0 mm
pn_name	PVGV0037	12,0 mm	14,0 mm	12,0 mm	14,0 mm
pn_name	PVGV0038	12,0 mm	16,0 mm	12,0 mm	16,0 mm
pn_name	PVGV0039	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")
