OPTU® Polyamid Schlauch

Art.Nr.:
Lagerbestand:: Meter
Download:: Datenblatt

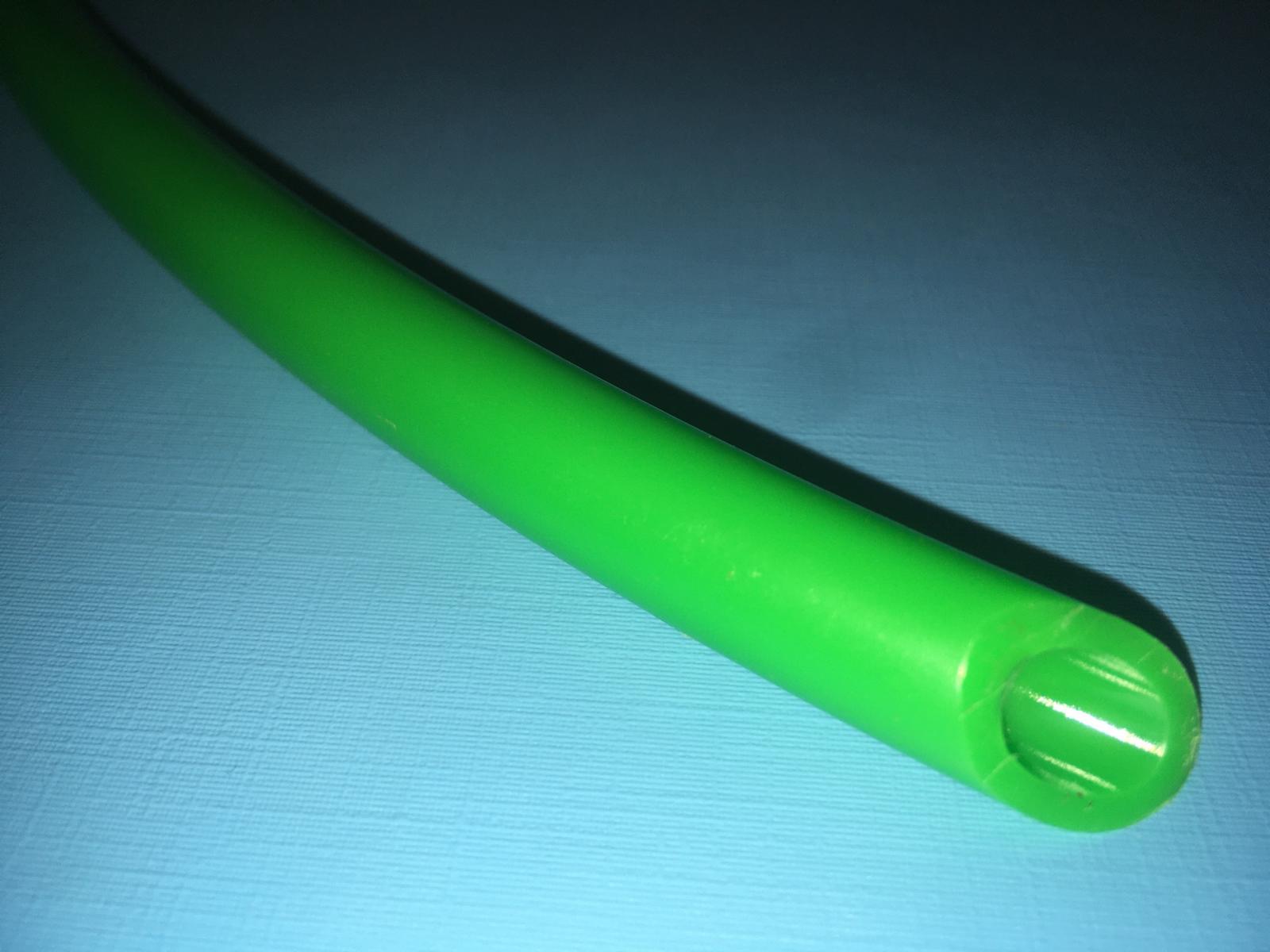

OPTU®flex Schlauch Polyamid

Ø Innen:

Ø Außen:

Wand:

Farbe:

Meter:

Preis und Lieferzeit werden Ihnen nach Anfragen des Artikels schnellstmöglich mitgeteilt.

Wunschmenge kann von Mindestabnahmemenge abweichen.

Frage zum Produkt

Beschreibung

Schlauch für Druckluft-, Hydraulik-, Pneumatik- und Kraftstoffanwendungen

Flexibel, druckfest und gut zu verlegen

OPTU®flex Polyamid Schläuche sind trotz Ihrer Härte und Druckfestigkeit knickstabil, gut zu verlegen und einfach anzuschließen. Ein hoher Temperaturbereich (-60°C bis +100°C), eine geringe Gasdurchlässigkeit (Permeation) und eine gute Beständigkeit machen Sie zur bevorzugten Wahl für Druckluftbremsen, Hydraulik- und Pneumatik-Leitungen und eignen sich als Kraftstoffleitung nach DIN 73378 bzw. in schwarz nach DIN 74324.

Die hohe mechanische Stabilität, die ausgezeichnete Haltbarkeit, eine hohe Abriebfestigkeit und gute Schwingungsabsorption qualifizieren den Polyamid Schlauch für eine Vielzahl industrieller Anwendungen.

Recyclebares Material

OPTU®flex Polyamid ist nach EG-Richtlinien recyclebar.

Eigenschaften und Vorteile

flexibel und knickstabil
druckfest
mechanische Stabilität
ausgezeichnete Haltbarkeit
abriebfest
viele Standardfarben
recyclebar

Typische Anwendungen

Druckluftbremsen
Pneumatik
Hydraulik
Kraftstoff nach DIN 73378 bzw. DIN 74324
Schleppketten

Abmessungen

OPTU®flex Polyamid Schlauch - Durchmesser und Wandstärken

Art.Nr.	Ø Innen	Ø Außen	Wand	Farbe
PA1,5BL2,5	1,5 mm	2,5 mm	0,5 mm	blau
PA1,5GL2,5	1,5 mm	2,5 mm	0,5 mm	gelb
PA1,5GN2,5	1,5 mm	2,5 mm	0,5 mm	grün
PA1,5GR2,5	1,5 mm	2,5 mm	0,5 mm	grau
PA1,5NA2,5	1,5 mm	2,5 mm	0,5 mm	natur
PA1,5RT2,5	1,5 mm	2,5 mm	0,5 mm	rot
PA1,5SW2,5	1,5 mm	2,5 mm	0,5 mm	schwarz
PA1,7BL3,0	1,7 mm	3,0 mm	0,65 mm	blau
PA1,7GL3,0	1,7 mm	3,0 mm	0,65 mm	gelb
PA1,7GN3,0	1,7 mm	3,0 mm	0,65 mm	grün
PA1,7GR3,0	1,7 mm	3,0 mm	0,65 mm	grau
PA1,7NA3,0	1,7 mm	3,0 mm	0,65 mm	natur
PA1,7RT3,0	1,7 mm	3,0 mm	0,65 mm	rot
PA1,7SW3,0	1,7 mm	3,0 mm	0,65 mm	schwarz
PA2,0BL4,0	2,0 mm	4,0 mm	1,0 mm	blau
PA2,0GL4,0	2,0 mm	4,0 mm	1,0 mm	gelb
PA2,0GN4,0	2,0 mm	4,0 mm	1,0 mm	grün
PA2,0GR4,0	2,0 mm	4,0 mm	1,0 mm	grau
PA2,0NA4,0	2,0 mm	4,0 mm	1,0 mm	natur
PA2,0RT4,0	2,0 mm	4,0 mm	1,0 mm	rot
PA2,0SW4,0	2,0 mm	4,0 mm	1,0 mm	schwarz
PA2,3BL4,0	2,3 mm	4,0 mm	0,85 mm	blau
PA2,3GL4,0	2,3 mm	4,0 mm	0,85 mm	gelb
PA2,3GN4,0	2,3 mm	4,0 mm	0,85 mm	grün
PA2,3GR4,0	2,3 mm	4,0 mm	0,85 mm	grau
PA2,3NA4,0	2,3 mm	4,0 mm	0,85 mm	natur
PA2,3RT4,0	2,3 mm	4,0 mm	0,85 mm	rot
PA2,3SW4,0	2,3 mm	4,0 mm	0,85 mm	schwarz
PA2,5BL4,0	2,5 mm	4,0 mm	0,75 mm	blau
PA2,5GL4,0	2,5 mm	4,0 mm	0,75 mm	gelb
PA2,5GN4,0	2,5 mm	4,0 mm	0,75 mm	grün
PA2,5GR4,0	2,5 mm	4,0 mm	0,75 mm	grau
PA2,5NA4,0	2,5 mm	4,0 mm	0,75 mm	natur
PA2,5RT4,0	2,5 mm	4,0 mm	0,75 mm	rot
PA2,5SW4,0	2,5 mm	4,0 mm	0,75 mm	schwarz
PA2,7BL4,0	2,7 mm	4,0 mm	0,65 mm	blau
PA2,7GL4,0	2,7 mm	4,0 mm	0,65 mm	gelb
PA2,7GN4,0	2,7 mm	4,0 mm	0,65 mm	grün
PA2,7GR4,0	2,7 mm	4,0 mm	0,65 mm	grau
PA2,7NA4,0	2,7 mm	4,0 mm	0,65 mm	natur
PA2,7RT4,0	2,7 mm	4,0 mm	0,65 mm	rot
PA2,7SW4,0	2,7 mm	4,0 mm	0,65 mm	schwarz
PA3,0BL4,3	3,0 mm	4,3 mm	0,65 mm	blau
PA3,0BL5,0	3,0 mm	5,0 mm	1,0 mm	blau
PA3,0BL6,0	3,0 mm	6,0 mm	1,5 mm	blau
PA3,0GL4,3	3,0 mm	4,3 mm	0,65 mm	gelb
PA3,0GL5,0	3,0 mm	5,0 mm	1,0 mm	gelb
PA3,0GL6,0	3,0 mm	6,0 mm	1,5 mm	gelb
PA3,0GN4,3	3,0 mm	4,3 mm	0,65 mm	grün
PA3,0GN5,0	3,0 mm	5,0 mm	1,0 mm	grün
PA3,0GN6,0	3,0 mm	6,0 mm	1,5 mm	grün
PA3,0GR4,3	3,0 mm	4,3 mm	0,65 mm	grau
PA3,0GR5,0	3,0 mm	5,0 mm	1,0 mm	grau
PA3,0GR6,0	3,0 mm	6,0 mm	1,5 mm	grau
PA3,0NA4,3	3,0 mm	4,3 mm	0,65 mm	natur
PA3,0NA5,0	3,0 mm	5,0 mm	1,0 mm	natur
PA3,0NA6,0	3,0 mm	6,0 mm	1,5 mm	natur
PA3,0RT4,3	3,0 mm	4,3 mm	0,65 mm	rot
PA3,0RT5,0	3,0 mm	5,0 mm	1,0 mm	rot
PA3,0RT6,0	3,0 mm	6,0 mm	1,5 mm	rot
PA3,0SW4,3	3,0 mm	4,3 mm	0,65 mm	schwarz
PA3,0SW5,0	3,0 mm	5,0 mm	1,0 mm	schwarz
PA3,0SW6,0	3,0 mm	6,0 mm	1,5 mm	schwarz
PA4,0BL6,0	4,0 mm	6,0 mm	1,0 mm	blau
PA4,0GL6,0	4,0 mm	6,0 mm	1,0 mm	gelb
PA4,0GN6,0	4,0 mm	6,0 mm	1,0 mm	grün
PA4,0GR6,0	4,0 mm	6,0 mm	1,0 mm	grau
PA4,0NA6,0	4,0 mm	6,0 mm	1,0 mm	natur
PA4,0RT6,0	4,0 mm	6,0 mm	1,0 mm	rot
PA4,0SW6,0	4,0 mm	6,0 mm	1,0 mm	schwarz
PA5,0BL8,0	5,0 mm	8,0 mm	1,5 mm	blau
PA5,0GL8,0	5,0 mm	8,0 mm	1,5 mm	gelb
PA5,0GN8,0	5,0 mm	8,0 mm	1,5 mm	grün
PA5,0GR8,0	5,0 mm	8,0 mm	1,5 mm	grau
PA5,0NA8,0	5,0 mm	8,0 mm	1,5 mm	natur
PA5,0RT8,0	5,0 mm	8,0 mm	1,5 mm	rot
PA5,0SW8,0	5,0 mm	8,0 mm	1,5 mm	schwarz
PA6,0BL10,0	6,0 mm	10,0 mm	2,0 mm	blau
PA6,0BL8,0	6,0 mm	8,0 mm	1,0 mm	blau
PA6,0BL9,0	6,0 mm	9,0 mm	1,5 mm	blau
PA6,0GL10,0	6,0 mm	10,0 mm	2,0 mm	gelb
PA6,0GL8,0	6,0 mm	8,0 mm	1,0 mm	gelb
PA6,0GL9,0	6,0 mm	9,0 mm	1,5 mm	gelb
PA6,0GN10,0	6,0 mm	10,0 mm	2,0 mm	grün
PA6,0GN8,0	6,0 mm	8,0 mm	1,0 mm	grün
PA6,0GN9,0	6,0 mm	9,0 mm	1,5 mm	grün
PA6,0GR10,0	6,0 mm	10,0 mm	2,0 mm	grau
PA6,0GR8,0	6,0 mm	8,0 mm	1,0 mm	grau
PA6,0GR9,0	6,0 mm	9,0 mm	1,5 mm	grau
PA6,0NA10,0	6,0 mm	10,0 mm	2,0 mm	natur
PA6,0NA8,0	6,0 mm	8,0 mm	1,0 mm	natur
PA6,0NA9,0	6,0 mm	9,0 mm	1,5 mm	natur
PA6,0RT10,0	6,0 mm	10,0 mm	2,0 mm	rot
PA6,0RT8,0	6,0 mm	8,0 mm	1,0 mm	rot
PA6,0RT9,0	6,0 mm	9,0 mm	1,5 mm	rot
PA6,0SW10,0	6,0 mm	10,0 mm	2,0 mm	schwarz
PA6,0SW8,0	6,0 mm	8,0 mm	1,0 mm	schwarz
PA6,0SW9,0	6,0 mm	9,0 mm	1,5 mm	schwarz
PA7,0BL10,0	7,0 mm	10,0 mm	1,5 mm	blau
PA7,0BL9,0	7,0 mm	9,0 mm	1,0 mm	blau
PA7,0GL10,0	7,0 mm	10,0 mm	1,5 mm	gelb
PA7,0GL9,0	7,0 mm	9,0 mm	1,0 mm	gelb
PA7,0GN10,0	7,0 mm	10,0 mm	1,5 mm	grün
PA7,0GN9,0	7,0 mm	9,0 mm	1,0 mm	grün
PA7,0GR10,0	7,0 mm	10,0 mm	1,5 mm	grau
PA7,0GR9,0	7,0 mm	9,0 mm	1,0 mm	grau
PA7,0NA10,0	7,0 mm	10,0 mm	1,5 mm	natur
PA7,0NA9,0	7,0 mm	9,0 mm	1,0 mm	natur
PA7,0RT10,0	7,0 mm	10,0 mm	1,5 mm	rot
PA7,0RT9,0	7,0 mm	9,0 mm	1,0 mm	rot
PA7,0SW10,0	7,0 mm	10,0 mm	1,5 mm	schwarz
PA7,0SW9,0	7,0 mm	9,0 mm	1,0 mm	schwarz
PA7,5BL10,0	7,5 mm	10,0 mm	1,25 mm	blau
PA7,5GL10,0	7,5 mm	10,0 mm	1,25 mm	gelb
PA7,5GN10,0	7,5 mm	10,0 mm	1,25 mm	grün
PA7,5GR10,0	7,5 mm	10,0 mm	1,25 mm	grau
PA7,5NA10,0	7,5 mm	10,0 mm	1,25 mm	natur
PA7,5RT10,0	7,5 mm	10,0 mm	1,25 mm	rot
PA7,5SW10,0	7,5 mm	10,0 mm	1,25 mm	schwarz
PA8,0BL10,0	8,0 mm	10,0 mm	1,0 mm	blau
PA8,0BL12,0	8,0 mm	12,0 mm	2,0 mm	blau
PA8,0GL10,0	8,0 mm	10,0 mm	1,0 mm	gelb
PA8,0GL12,0	8,0 mm	12,0 mm	2,0 mm	gelb
PA8,0GN10,0	8,0 mm	10,0 mm	1,0 mm	grün
PA8,0GN12,0	8,0 mm	12,0 mm	2,0 mm	grün
PA8,0GR10,0	8,0 mm	10,0 mm	1,0 mm	grau
PA8,0GR12,0	8,0 mm	12,0 mm	2,0 mm	grau
PA8,0NA10,0	8,0 mm	10,0 mm	1,0 mm	natur
PA8,0NA12,0	8,0 mm	12,0 mm	2,0 mm	natur
PA8,0RT10,0	8,0 mm	10,0 mm	1,0 mm	rot
PA8,0RT12,0	8,0 mm	12,0 mm	2,0 mm	rot
PA8,0SW10,0	8,0 mm	10,0 mm	1,0 mm	schwarz
PA8,0SW12,0	8,0 mm	12,0 mm	2,0 mm	schwarz
PA9,0BL11,5	9,0 mm	11,5 mm	1,25 mm	blau
PA9,0BL12,0	9,0 mm	12,0 mm	1,5 mm	blau
PA9,0GL11,5	9,0 mm	11,5 mm	1,25 mm	gelb
PA9,0GL12,0	9,0 mm	12,0 mm	1,5 mm	gelb
PA9,0GN11,5	9,0 mm	11,5 mm	1,25 mm	grün
PA9,0GN12,0	9,0 mm	12,0 mm	1,5 mm	grün
PA9,0GR11,5	9,0 mm	11,5 mm	1,25 mm	grau
PA9,0GR12,0	9,0 mm	12,0 mm	1,5 mm	grau
PA9,0NA11,5	9,0 mm	11,5 mm	1,25 mm	natur
PA9,0NA12,0	9,0 mm	12,0 mm	1,5 mm	natur
PA9,0RT11,5	9,0 mm	11,5 mm	1,25 mm	rot
PA9,0RT12,0	9,0 mm	12,0 mm	1,5 mm	rot
PA9,0SW11,5	9,0 mm	11,5 mm	1,25 mm	schwarz
PA9,0SW12,0	9,0 mm	12,0 mm	1,5 mm	schwarz
PA10,0BL12,0	10,0 mm	12,0 mm	1,0 mm	blau
PA10,0GL12,0	10,0 mm	12,0 mm	1,0 mm	gelb
PA10,0GN12,0	10,0 mm	12,0 mm	1,0 mm	grün
PA10,0GR12,0	10,0 mm	12,0 mm	1,0 mm	grau
PA10,0NA12,0	10,0 mm	12,0 mm	1,0 mm	natur
PA10,0RT12,0	10,0 mm	12,0 mm	1,0 mm	rot
PA10,0SW12,0	10,0 mm	12,0 mm	1,0 mm	schwarz
PA11,0BL14,0	11,0 mm	14,0 mm	1,5 mm	blau
PA11,0GL14,0	11,0 mm	14,0 mm	1,5 mm	gelb
PA11,0GN14,0	11,0 mm	14,0 mm	1,5 mm	grün
PA11,0GR14,0	11,0 mm	14,0 mm	1,5 mm	grau
PA11,0NA14,0	11,0 mm	14,0 mm	1,5 mm	natur
PA11,0RT14,0	11,0 mm	14,0 mm	1,5 mm	rot
PA11,0SW14,0	11,0 mm	14,0 mm	1,5 mm	schwarz
PA12,0BL15,0	12,0 mm	15,0 mm	1,5 mm	blau
PA12,0GL15,0	12,0 mm	15,0 mm	1,5 mm	gelb
PA12,0GN15,0	12,0 mm	15,0 mm	1,5 mm	grün
PA12,0GR15,0	12,0 mm	15,0 mm	1,5 mm	grau
PA12,0NA15,0	12,0 mm	15,0 mm	1,5 mm	natur
PA12,0RT15,0	12,0 mm	15,0 mm	1,5 mm	rot
PA12,0SW15,0	12,0 mm	15,0 mm	1,5 mm	schwarz
PA12,5BL15,0	12,5 mm	15,0 mm	1,25 mm	blau
PA12,5GL15,0	12,5 mm	15,0 mm	1,25 mm	gelb
PA12,5GN15,0	12,5 mm	15,0 mm	1,25 mm	grün
PA12,5GR15,0	12,5 mm	15,0 mm	1,25 mm	grau
PA12,5NA15,0	12,5 mm	15,0 mm	1,25 mm	natur
PA12,5RT15,0	12,5 mm	15,0 mm	1,25 mm	rot
PA12,5SW15,0	12,5 mm	15,0 mm	1,25 mm	schwarz
PA13,0BL16,0	13,0 mm	16,0 mm	1,5 mm	blau
PA13,0GL16,0	13,0 mm	16,0 mm	1,5 mm	gelb
PA13,0GN16,0	13,0 mm	16,0 mm	1,5 mm	grün
PA13,0GR16,0	13,0 mm	16,0 mm	1,5 mm	grau
PA13,0NA16,0	13,0 mm	16,0 mm	1,5 mm	natur
PA13,0RT16,0	13,0 mm	16,0 mm	1,5 mm	rot
PA13,0SW16,0	13,0 mm	16,0 mm	1,5 mm	schwarz
PA14,0BL18,0	14,0 mm	18,0 mm	2,0 mm	blau
PA14,0GL18,0	14,0 mm	18,0 mm	2,0 mm	gelb
PA14,0GN18,0	14,0 mm	18,0 mm	2,0 mm	grün
PA14,0GR18,0	14,0 mm	18,0 mm	2,0 mm	grau
PA14,0NA18,0	14,0 mm	18,0 mm	2,0 mm	natur
PA14,0RT18,0	14,0 mm	18,0 mm	2,0 mm	rot
PA14,0SW18,0	14,0 mm	18,0 mm	2,0 mm	schwarz
PA16,0BL20,0	16,0 mm	20,0 mm	2,0 mm	blau
PA16,0GL20,0	16,0 mm	20,0 mm	2,0 mm	gelb
PA16,0GN20,0	16,0 mm	20,0 mm	2,0 mm	grün
PA16,0GR20,0	16,0 mm	20,0 mm	2,0 mm	grau
PA16,0NA20,0	16,0 mm	20,0 mm	2,0 mm	natur
PA16,0RT20,0	16,0 mm	20,0 mm	2,0 mm	rot
PA16,0SW20,0	16,0 mm	20,0 mm	2,0 mm	schwarz
PA18,0BL22,0	18,0 mm	22,0 mm	2,0 mm	blau
PA18,0GL22,0	18,0 mm	22,0 mm	2,0 mm	gelb
PA18,0GN22,0	18,0 mm	22,0 mm	2,0 mm	grün
PA18,0GR22,0	18,0 mm	22,0 mm	2,0 mm	grau
PA18,0NA22,0	18,0 mm	22,0 mm	2,0 mm	natur
PA18,0RT22,0	18,0 mm	22,0 mm	2,0 mm	rot
PA18,0SW22,0	18,0 mm	22,0 mm	2,0 mm	schwarz
