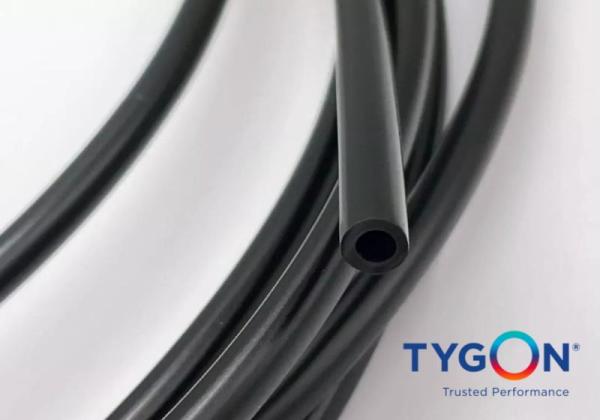

Tygon® Ink 1000
Tubing specifically designed for use with UV inks
Highly chemical-resistant Tubing for UV ink conveying
Especially with UV inks, UV blocking is an industry standard. Tygon® Ink 1000 has demonstrated in accelerated aging tests that, thanks to its patented technology, the integrity of the ink is maintained. This makes the tube ideally suited for applications in the UV market.
Chemical Resistance
When pumping inks, chemical compatibility and flexibility are among the most important prerequisites for reliable performance. Tygon® Ink 1000 was specifically developed for use with UV inks, for example in:
• Digital printing
• 3D printing

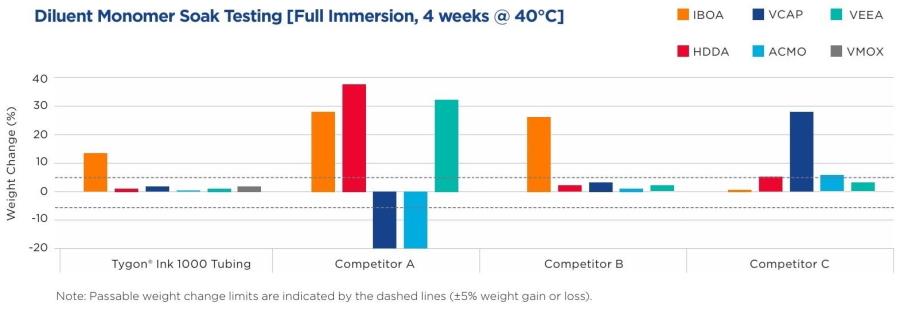

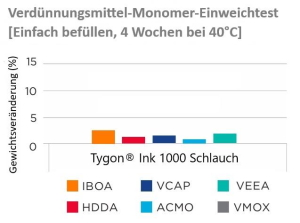

The product has been tested with various thinners (IBOA, VMOX, HDDA, etc.) and demonstrated excellent chemical resistance over an extended testing period.
• Digital printing
• 3D printing
The product has been tested with various thinners (IBOA, VMOX, HDDA, etc.) and demonstrated excellent chemical resistance over an extended testing period.
Features and Benefits
- Excellent chemical resistance to low-molecular-weight acrylic monomers
- High flexibility
- UV-blocking
- Low extractable content
- Long service life
Typical Applications
- Digital printing
- Inkjet printing
- Large format printing
- Packaging printing
- 3D printing
Tygon® Tube Ink 1000 - Diameters and wall thickness
| Art.No. | Ø Inner | Ø Outer | Wall | Inch rounded | Crossref. |
|---|---|---|---|---|---|
| TY2,0IN4,0 | 2,0 mm | 4,0 mm | 1,0 mm | ||
| TY3,0IN5,0 | 3,0 mm | 5,0 mm | 1,0 mm | AOC1S1517 | |
| TY3,18IN6,35 | 3,18 mm (1/8") | 6,35 mm (1/4") | 3,18 mm (1/8") | 3,2 x 6,4 x 1,6 mm | AOC1S2266 |
| TY4,0IN6,0 | 4,0 mm | 6,0 mm | 1,0 mm | AOC1S1518 | |
| TY4,76IN7,94 | 4,76 mm (3/16") | 7,94 mm (5/16") | 1,59 mm (1/16") | 4,8 x 8,0 x 1,6 mm | AOC1S2136 |
| TY6,0IN8,0 | 6,0 mm | 8,0 mm | 1,0 mm | AOC1S1520 | |
| TY6,35IN9,53 | 6,35 mm (1/4") | 9,53 mm (3/8") | 1,59 mm (1/16") | 6,4 x 9,6 x 1,6 mm | |
| TY9,53IN12,7 | 9,53 mm (3/8") | 12,7 mm (1/2") | 1,59 mm (1/16") | 9,6 x 12,7 x 1,6 mm |
Typical Physical Properties of Tygon® Ink 1000
| Property | ASTM Method | Inner | Outer |
|---|---|---|---|
| Durometer Hardness | D2240 | 54° Shore D, 15s | 90° Shore A, 15s |
| Color | - | black | black |
| Specific Gravity | D792 | 0,93 | 0,91 |
| Max. Recommended Operating Temperature | - | 55°C | 55°C |
| Flex Modulus | D790 | 6825,8 MPa | 158.6 MPa |
| Tensile Strength | D412 | 18,8 MPa | 16,1 MPa |
| Ultimate Elongation | D412 | 410,00% | 470,00% |
| Tear Resistance | D1004 | 0,09 kN/m | 0,06 kN/m |
| Compression Set Constant Deflection, % @ 158°F (70°C) for 22 Hours | Method B D395 | 34,00% | 54,00% |
| Water Absorption, 24 hrs at 73°F (23°C) | D570 | < 0.01 % | 67,00%a |
Unless otherwise stated, all tests were performed at room temperature (23 °C / 73 °F). The reported values were obtained on extruded specimens with a thickness of 0.075 in. (1.9 mm) or on injection-molded ASTM test plates or ASTM hardness test specimens (durometer specimens) with a thickness of 0.075 in. (1.9 mm).
