Screw connection straight threaded
Straight Threaded Tubing-Connector
The firm flexible Tubing is widened is pushed over the integrated barbed side. It is fixed by knurled nut which presses a cutting ring to a sealing which forms a tightness for the connection. The shear force of the cutting ring intensifies the contact pressure. A solid, friction-locked, leak-tight and removable connection with low dead volume is the result. On the other side is a Male Thread that can be screwed in any fitting counter piece.

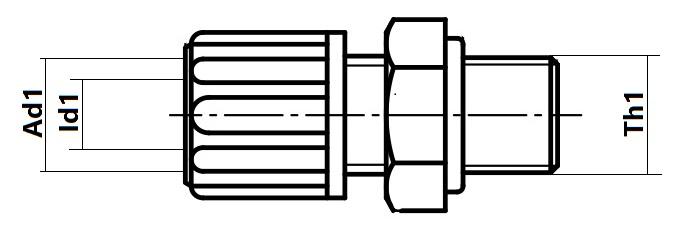

Id1 = Inner-Ø
- Tube 1:
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,0 mm
- 4,23 mm (1/6“)
- 4,76 mm (3/16“)
- 5,0 mm
- 6,0 mm
- 6,35 mm (1/4“)
- 8,0 mm
- 9,0 mm
- 9,53 mm (3/8“)
- 10,0 mm
- 12,0 mm
- 14,0 mm
- 16,0 mm
- 18,0 mm
Ad1 = Outer-Ø
- Tube 1:
- 6,0 mm
- 6,35 mm (1/4“)
- 8,0 mm
- 9,0 mm
- 9,53 mm (3/8“)
- 10,0 mm
- 12,0 mm
- 12,7 mm (1/2“)
- 14,0 mm
- 16,0 mm
- 18,0 mm
- 20,0 mm
Th1 = Outer thread:
- G1/2"
- G1/4"
- G1/8"
- G3/8"
- NPT1/4"
- NPT1/8"
- NPT1/2"
- NPT3/8"
- NPT3/4"
- M5x0,8
- M6x1
- M10x1
- M10x1,5
- M12x1,5
- M14x1,5
- M16x1,5
- M20x1,5
- M16x1,5
- UNF1/4"-28
Diameters
| Art.No. | Version | Ø Inner | Ø Outer | Thread |
|---|---|---|---|---|
| PFGE0001 | PFA | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/2" |
| PFGE0002 | PFA | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/4" |
| PFGE0004 | PFA | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/8" |
| PFGE0005 | PFA | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/4" |
| PFGE0006 | PFA | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/8" |
| PFGE0007 | PFA | 3,18 mm (1/8") | 6,35 mm (1/4") | UNF1/4"-28 |
| PFGE0008 | PFA | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/4" |
| PFGE0009 | PFA | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/8" |
| PFGE0010 | PFA | 3,97 mm (5/32") | 6,35 mm (1/4") | NPT1/4" |
| PFGE0011 | PFA | 3,97 mm (5/32") | 6,35 mm (1/4") | NPT1/8" |
| PFGE0012 | PFA | 4,0 mm | 6,0 mm | M5x0,8 |
| PFGE0013 | PFA | 4,0 mm | 6,0 mm | M6x1 |
| PFGE0015 | PFA | 4,0 mm | 6,0 mm | M10x1 |
| PFGE0016 | PFA | 4,0 mm | 6,0 mm | M10x1,5 |
| PFGE0018 | PFA | 4,0 mm | 6,0 mm | M12x1,5 |
| PFGE0019 | PFA | 4,0 mm | 6,0 mm | G1/2" |
| PFGE0020 | PFA | 4,0 mm | 6,0 mm | G1/4" |
| PFGE0024 | PFA | 4,0 mm | 6,0 mm | G1/8" |
| PFGE0028 | PFA | 4,0 mm | 6,0 mm | G3/8" |
| PFGE0029 | PFA | 4,0 mm | 6,0 mm | NPT1/2" |
| PFGE0030 | PFA | 4,0 mm | 6,0 mm | NPT1/4" |
| PFGE0031 | PFA | 4,0 mm | 6,0 mm | NPT1/8" |
| PFGE0032 | PFA | 4,0 mm | 6,0 mm | NPT3/8" |
| PFGE0033 | PFA | 4,0 mm | 6,0 mm | UNF1/4"-28 |
| PFGE0034 | PFA | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/2" |
| PFGE0035 | PFA | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/4" |
| PFGE0038 | PFA | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/8" |
| PFGE0040 | PFA | 4,23 mm (1/6") | 6,35 mm (1/4") | G3/8" |
| PFGE0041 | PFA | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/2" |
| PFGE0042 | PFA | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/4" |
| PFGE0043 | PFA | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/8" |
| PFGE0044 | PFA | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT3/8" |
| PFGE0045 | PFA | 4,76 mm (3/16") | 6,35 mm (1/4") | G1/4" |
| PFGE0046 | PFA | 4,76 mm (3/16") | 6,35 mm (1/4") | G1/8" |
| PFGE0047 | PFA | 5,0 mm | 8,0 mm | G1/2" |
| PFGE0048 | PFA | 5,0 mm | 8,0 mm | G1/4" |
| PFGE0049 | PFA | 5,0 mm | 8,0 mm | G1/8" |
| PFGE0050 | PFA | 5,0 mm | 8,0 mm | NPT1/2" |
| PFGE0051 | PFA | 6,0 mm | 8,0 mm | M10x1,5 |
| PFGE0052 | PFA | 6,0 mm | 8,0 mm | M14x1,5 |
| PFGE0053 | PFA | 6,0 mm | 8,0 mm | M16x1,5 |
| PFGE0054 | PFA | 6,0 mm | 8,0 mm | M20x1,5 |
| PFGE0055 | PFA | 6,0 mm | 8,0 mm | G1/2" |
| PFGE0056 | PFA | 6,0 mm | 8,0 mm | G1/4" |
| PFGE0059 | PFA | 6,0 mm | 8,0 mm | G1/8" |
| PFGE0060 | PFA | 6,0 mm | 8,0 mm | G3/8" |
| PFGE0062 | PFA | 6,0 mm | 8,0 mm | NPT1/2" |
| PFGE0063 | PFA | 6,0 mm | 8,0 mm | NPT1/4" |
| PFGE0064 | PFA | 6,0 mm | 8,0 mm | NPT1/8" |
| PFGE0065 | PFA | 6,0 mm | 8,0 mm | NPT3/8" |
| PFGE0066 | PFA | 6,0 mm | 9,0 mm | G1/4" |
| PFGE0067 | PFA | 6,0 mm | 9,0 mm | G1/8" |
| PFGE0068 | PFA | 6,0 mm | 9,0 mm | G3/8" |
| PFGE0069 | PFA | 6,0 mm | 10,0 mm | M10x1,5 |
| PFGE0070 | PFA | 6,0 mm | 10,0 mm | G1/2" |
| PFGE0071 | PFA | 6,0 mm | 10,0 mm | G1/4" |
| PFGE0072 | PFA | 6,0 mm | 10,0 mm | G1/8" |
| PFGE0073 | PFA | 6,0 mm | 10,0 mm | G3/8" |
| PFGE0074 | PFA | 6,0 mm | 10,0 mm | NPT1/2" |
| PFGE0075 | PFA | 6,0 mm | 10,0 mm | NPT1/4" |
| PFGE0076 | PFA | 6,0 mm | 10,0 mm | NPT1/8" |
| PFGE0077 | PFA | 6,0 mm | 10,0 mm | NPT3/8" |
| PFGE0078 | PFA | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/2" |
| PFGE0080 | PFA | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/4" |
| PFGE0081 | PFA | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/8" |
| PFGE0082 | PFA | 6,35 mm (1/4") | 9,53 mm (3/8") | G3/8" |
| PFGE0083 | PFA | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/2" |
| PFGE0084 | PFA | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/4" |
| PFGE0085 | PFA | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/8" |
| PFGE0086 | PFA | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT3/8" |
| PFGE0087 | PFA | 8,0 mm | 10,0 mm | M10x1,5 |
| PFGE0088 | PFA | 8,0 mm | 10,0 mm | G1/2" |
| PFGE0089 | PFA | 8,0 mm | 10,0 mm | G1/4" |
| PFGE0091 | PFA | 8,0 mm | 10,0 mm | G1/8" |
| PFGE0093 | PFA | 8,0 mm | 10,0 mm | G3/8" |
| PFGE0095 | PFA | 8,0 mm | 10,0 mm | NPT1/2" |
| PFGE0096 | PFA | 8,0 mm | 10,0 mm | NPT1/4" |
| PFGE0097 | PFA | 8,0 mm | 10,0 mm | NPT1/8" |
| PFGE0098 | PFA | 8,0 mm | 10,0 mm | NPT3/8" |
| PFGE0099 | PFA | 8,0 mm | 12,0 mm | G1/2" |
| PFGE0100 | PFA | 8,0 mm | 12,0 mm | G1/4" |
| PFGE0101 | PFA | 8,0 mm | 12,0 mm | G3/8" |
| PFGE0102 | PFA | 8,0 mm | 12,0 mm | NPT1/2" |
| PFGE0103 | PFA | 8,0 mm | 12,0 mm | NPT1/4" |
| PFGE0104 | PFA | 8,0 mm | 12,0 mm | NPT3/8" |
| PFGE0105 | PFA | 9,0 mm | 12,0 mm | G1/2" |
| PFGE0106 | PFA | 9,0 mm | 12,0 mm | G1/4" |
| PFGE0107 | PFA | 9,0 mm | 12,0 mm | G3/8" |
| PFGE0108 | PFA | 9,0 mm | 12,0 mm | NPT1/2" |
| PFGE0109 | PFA | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/2" |
| PFGE0110 | PFA | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/4" |
| PFGE0112 | PFA | 9,53 mm (3/8") | 12,7 mm (1/2") | G3/8" |
| PFGE0113 | PFA | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/2" |
| PFGE0114 | PFA | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/4" |
| PFGE0115 | PFA | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/4" |
| PFGE0116 | PFA | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/8" |
| PFGE0117 | PFA | 10,0 mm | 12,0 mm | M12x1,5 |
| PFGE0118 | PFA | 10,0 mm | 12,0 mm | M18x1,5 |
| PFGE0119 | PFA | 10,0 mm | 12,0 mm | G1/2" |
| PFGE0121 | PFA | 10,0 mm | 12,0 mm | G1/4" |
| PFGE0122 | PFA | 10,0 mm | 12,0 mm | G1/8" |
| PFGE0123 | PFA | 10,0 mm | 12,0 mm | G3/4" |
| PFGE0124 | PFA | 10,0 mm | 12,0 mm | G3/8" |
| PFGE0126 | PFA | 10,0 mm | 12,0 mm | NPT1/2" |
| PFGE0127 | PFA | 10,0 mm | 12,0 mm | NPT1/4" |
| PFGE0128 | PFA | 10,0 mm | 12,0 mm | NPT3/4" |
| PFGE0129 | PFA | 10,0 mm | 12,0 mm | NPT3/8" |
| PFGE0130 | PFA | 10,0 mm | 14,0 mm | G1/2" |
| PFGE0131 | PFA | 10,0 mm | 14,0 mm | G3/8" |
| PFGE0132 | PFA | 12,0 mm | 14,0 mm | G1/2" |
| PFGE0133 | PFA | 12,0 mm | 14,0 mm | G1/4" |
| PFGE0134 | PFA | 12,0 mm | 14,0 mm | G3/4" |
| PFGE0135 | PFA | 12,0 mm | 14,0 mm | G3/8" |
| PFGE0136 | PFA | 12,0 mm | 14,0 mm | NPT1/2" |
| PFGE0137 | PFA | 12,0 mm | 14,0 mm | NPT1/4" |
| PFGE0138 | PFA | 12,0 mm | 14,0 mm | NPT3/8" |
| PFGE0139 | PFA | 12,0 mm | 16,0 mm | G1/2" |
| PFGE0140 | PFA | 12,0 mm | 16,0 mm | NPT1/2" |
| PFGE0141 | PFA | 14,0 mm | 16,0 mm | G1/2" |
| PFGE0142 | PFA | 14,0 mm | 16,0 mm | G3/8" |
| PFGE0143 | PFA | 14,0 mm | 16,0 mm | NPT1/2" |
| PFGE0144 | PFA | 14,0 mm | 16,0 mm | NPT3/4" |
| PFGE0145 | PFA | 16,0 mm | 18,0 mm | G1/2" |
| PFGE0146 | PFA | 16,0 mm | 20,0 mm | G1/2" |
| PFGE0147 | PFA | 16,0 mm | 20,0 mm | G3/4" |
| PFGE0148 | PFA | 18,0 mm | 20,0 mm | G3/4" |
| PFGE0149 | PFA | 18,0 mm | 20,0 mm | NPT3/4" |
| Art.No. | Version | Ø Inner | Ø Outer | Thread |
|---|---|---|---|---|
| PPGE001 | PP | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/2" |
| PPGE002 | PP | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/4" |
| PPGE003 | PP | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/8" |
| PPGE004 | PP | 3,18 mm (1/8") | 6,35 mm (1/4") | G3/8" |
| PPGE005 | PP | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/4" |
| PPGE006 | PP | 3,18 mm (1/8") | 6,35 mm (1/4") | UNF1/4"-28 |
| PPGE007 | PP | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/4" |
| PPGE008 | PP | 4,0 mm | 6,0 mm | M5x0,8 |
| PPGE009 | PP | 4,0 mm | 6,0 mm | M6x1 |
| PPGE010 | PP | 4,0 mm | 6,0 mm | M10x1 |
| PPGE011 | PP | 4,0 mm | 6,0 mm | M12x1,5 |
| PPGE012 | PP | 4,0 mm | 6,0 mm | G1/2" |
| PPGE014 | PP | 4,0 mm | 6,0 mm | G1/4" |
| PPGE017 | PP | 4,0 mm | 6,0 mm | G1/8" |
| PPGE020 | PP | 4,0 mm | 6,0 mm | G3/8" |
| PPGE022 | PP | 4,0 mm | 6,0 mm | NPT1/2" |
| PPGE023 | PP | 4,0 mm | 6,0 mm | NPT1/4" |
| PPGE024 | PP | 4,0 mm | 6,0 mm | NPT1/8" |
| PPGE025 | PP | 4,0 mm | 6,0 mm | NPT3/8" |
| PPGE026 | PP | 4,0 mm | 6,0 mm | UNF1/4"-28 |
| PPGE027 | PP | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/2" |
| PPGE028 | PP | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/4" |
| PPGE029 | PP | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/8" |
| PPGE030 | PP | 4,23 mm (1/6") | 6,35 mm (1/4") | G3/8" |
| PPGE031 | PP | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/4" |
| PPGE032 | PP | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/8" |
| PPGE033 | PP | 5,0 mm | 8,0 mm | G1/2" |
| PPGE034 | PP | 5,0 mm | 8,0 mm | G1/4" |
| PPGE035 | PP | 5,0 mm | 8,0 mm | G1/8" |
| PPGE036 | PP | 5,0 mm | 8,0 mm | G3/8" |
| PPGE037 | PP | 6,0 mm | 8,0 mm | M10x1 |
| PPGE038 | PP | 6,0 mm | 8,0 mm | M10x1,5 |
| PPGE039 | PP | 6,0 mm | 8,0 mm | G1/2" |
| PPGE042 | PP | 6,0 mm | 8,0 mm | G1/4" |
| PPGE046 | PP | 6,0 mm | 8,0 mm | G1/8" |
| PPGE049 | PP | 6,0 mm | 8,0 mm | G3/8" |
| PPGE051 | PP | 6,0 mm | 8,0 mm | NPT1/2" |
| PPGE052 | PP | 6,0 mm | 8,0 mm | NPT1/4" |
| PPGE053 | PP | 6,0 mm | 8,0 mm | NPT1/8" |
| PPGE054 | PP | 6,0 mm | 8,0 mm | NPT3/8" |
| PPGE055 | PP | 6,0 mm | 9,0 mm | G1/2" |
| PPGE056 | PP | 6,0 mm | 9,0 mm | G1/4" |
| PPGE057 | PP | 6,0 mm | 9,0 mm | G1/8" |
| PPGE058 | PP | 6,0 mm | 9,0 mm | G3/8" |
| PPGE059 | PP | 6,0 mm | 9,0 mm | NPT1/2" |
| PPGE060 | PP | 6,0 mm | 9,0 mm | NPT1/4" |
| PPGE061 | PP | 6,0 mm | 9,0 mm | NPT3/8" |
| PPGE062 | PP | 6,0 mm | 10,0 mm | G1/4" |
| PPGE064 | PP | 6,0 mm | 10,0 mm | G3/8" |
| PPGE066 | PP | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/2" |
| PPGE067 | PP | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/4" |
| PPGE068 | PP | 6,35 mm (1/4") | 9,53 mm (3/8") | G3/8" |
| PPGE069 | PP | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/4" |
| PPGE070 | PP | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT3/8" |
| PPGE071 | PP | 8,0 mm | 10,0 mm | G1/2" |
| PPGE074 | PP | 8,0 mm | 10,0 mm | G1/4" |
| PPGE077 | PP | 8,0 mm | 10,0 mm | G1/8" |
| PPGE078 | PP | 8,0 mm | 10,0 mm | G3/8" |
| PPGE081 | PP | 8,0 mm | 10,0 mm | NPT1/2" |
| PPGE082 | PP | 8,0 mm | 10,0 mm | NPT1/4" |
| PPGE083 | PP | 8,0 mm | 10,0 mm | NPT1/8" |
| PPGE084 | PP | 8,0 mm | 10,0 mm | NPT3/8" |
| PPGE085 | PP | 8,0 mm | 12,0 mm | G1/2" |
| PPGE086 | PP | 8,0 mm | 12,0 mm | G1/4" |
| PPGE087 | PP | 8,0 mm | 12,0 mm | NPT1/2" |
| PPGE088 | PP | 8,0 mm | 12,0 mm | NPT1/4" |
| PPGE089 | PP | 9,0 mm | 12,0 mm | G1/2" |
| PPGE090 | PP | 9,0 mm | 12,0 mm | G1/4" |
| PPGE091 | PP | 9,0 mm | 12,0 mm | G1/8" |
| PPGE092 | PP | 9,0 mm | 12,0 mm | G3/4" |
| PPGE093 | PP | 9,0 mm | 12,0 mm | G3/8" |
| PPGE094 | PP | 9,0 mm | 12,0 mm | NPT1/2" |
| PPGE095 | PP | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/2" |
| PPGE096 | PP | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/4" |
| PPGE097 | PP | 9,53 mm (3/8") | 12,7 mm (1/2") | G3/4" |
| PPGE098 | PP | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/2" |
| PPGE099 | PP | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/4" |
| PPGE100 | PP | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/8" |
| PPGE101 | PP | 10,0 mm | 12,0 mm | M16x1,5 |
| PPGE102 | PP | 10,0 mm | 12,0 mm | G1/2" |
| PPGE105 | PP | 10,0 mm | 12,0 mm | G1/4" |
| PPGE107 | PP | 10,0 mm | 12,0 mm | G1/8" |
| PPGE108 | PP | 10,0 mm | 12,0 mm | G3/4" |
| PPGE109 | PP | 10,0 mm | 12,0 mm | G3/8" |
| PPGE110 | PP | 10,0 mm | 12,0 mm | NPT1/2" |
| PPGE111 | PP | 10,0 mm | 12,0 mm | NPT1/4" |
| PPGE112 | PP | 10,0 mm | 12,0 mm | NPT1/8" |
| PPGE113 | PP | 10,0 mm | 12,0 mm | NPT3/8" |
| PPGE114 | PP | 10,0 mm | 14,0 mm | G1/2" |
| PPGE115 | PP | 10,0 mm | 14,0 mm | NPT1/4" |
| PPGE116 | PP | 10,0 mm | 14,0 mm | NPT3/8" |
| PPGE117 | PP | 12,0 mm | 14,0 mm | G1/2" |
| PPGE118 | PP | 12,0 mm | 14,0 mm | G1/4" |
| PPGE119 | PP | 12,0 mm | 14,0 mm | G3/8" |
| PPGE120 | PP | 12,0 mm | 14,0 mm | NPT1/2" |
| PPGE121 | PP | 12,0 mm | 16,0 mm | G1/2" |
| PPGE122 | PP | 12,0 mm | 16,0 mm | G1/4" |
| PPGE123 | PP | 12,0 mm | 16,0 mm | G3/8" |
| PPGE124 | PP | 14,0 mm | 16,0 mm | M14x1,5 |
| PPGE126 | PP | 14,0 mm | 16,0 mm | NPT1/2" |
| PPGE125 | PP | 15,88 mm (5/8") | 19,05 mm (3/4") | G1/2" |
| PPGE127 | PP | 15,88 mm (5/8") | 19,05 mm (3/4") | NPT3/4" |
| PPGE128 | PP | 16,0 mm | 20,0 mm | G1/2" |
| PPGE130 | PP | 16,0 mm | 20,0 mm | G3/4" |
| Art.No. | Version | Ø Inner | Ø Outer | Thread |
|---|---|---|---|---|
| PVGE001 | PVDF | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/2" |
| PVGE002 | PVDF | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/4" |
| PVGE003 | PVDF | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/8" |
| PVGE005 | PVDF | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/2" |
| PVGE006 | PVDF | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/4" |
| PVGE007 | PVDF | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/8" |
| PVGE008 | PVDF | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/2" |
| PVGE009 | PVDF | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/8" |
| PVGE010 | PVDF | 3,97 mm (5/32") | 6,35 mm (1/4") | NPT1/4" |
| PVGE011 | PVDF | 3,97 mm (5/32") | 6,35 mm (1/4") | NPT1/8" |
| PVGE012 | PVDF | 4,0 mm | 6,0 mm | M5x0,8 |
| PVGE013 | PVDF | 4,0 mm | 6,0 mm | M6x1 |
| PVGE014 | PVDF | 4,0 mm | 6,0 mm | M10x1 |
| PVGE016 | PVDF | 4,0 mm | 6,0 mm | M12x1,5 |
| PVGE017 | PVDF | 4,0 mm | 6,0 mm | G1/2" |
| PVGE019 | PVDF | 4,0 mm | 6,0 mm | G1/4" |
| PVGE021 | PVDF | 4,0 mm | 6,0 mm | G1/8" |
| PVGE023 | PVDF | 4,0 mm | 6,0 mm | G3/8" |
| PVGE025 | PVDF | 4,0 mm | 6,0 mm | NPT1/2" |
| PVGE026 | PVDF | 4,0 mm | 6,0 mm | NPT1/4" |
| PVGE027 | PVDF | 4,0 mm | 6,0 mm | NPT1/8" |
| PVGE028 | PVDF | 4,0 mm | 6,0 mm | NPT3/8" |
| PVGE029 | PVDF | 4,0 mm | 6,0 mm | UNF1/4"-28 |
| PVGE030 | PVDF | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/2" |
| PVGE032 | PVDF | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/4" |
| PVGE033 | PVDF | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/8" |
| PVGE034 | PVDF | 4,23 mm (1/6") | 6,35 mm (1/4") | G3/8" |
| PVGE035 | PVDF | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/2" |
| PVGE036 | PVDF | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/4" |
| PVGE037 | PVDF | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/8" |
| PVGE038 | PVDF | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT3/8" |
| PVGE039 | PVDF | 5,0 mm | 8,0 mm | G1/2" |
| PVGE041 | PVDF | 5,0 mm | 8,0 mm | G1/4" |
| PVGE042 | PVDF | 5,0 mm | 8,0 mm | G1/8" |
| PVGE043 | PVDF | 5,0 mm | 8,0 mm | G3/8" |
| PVGE044 | PVDF | 5,0 mm | 8,0 mm | NPT1/4" |
| PVGE045 | PVDF | 6,0 mm | 8,0 mm | M12x1,5 |
| PVGE046 | PVDF | 6,0 mm | 8,0 mm | G1/2" |
| PVGE048 | PVDF | 6,0 mm | 8,0 mm | G1/4" |
| PVGE051 | PVDF | 6,0 mm | 8,0 mm | G1/8" |
| PVGE053 | PVDF | 6,0 mm | 8,0 mm | G3/8" |
| PVGE055 | PVDF | 6,0 mm | 8,0 mm | NPT1/2" |
| PVGE056 | PVDF | 6,0 mm | 8,0 mm | NPT1/4" |
| PVGE057 | PVDF | 6,0 mm | 8,0 mm | NPT1/8" |
| PVGE058 | PVDF | 6,0 mm | 8,0 mm | NPT3/8" |
| PVGE059 | PVDF | 6,0 mm | 9,0 mm | G1/2" |
| PVGE060 | PVDF | 6,0 mm | 9,0 mm | G1/4" |
| PVGE061 | PVDF | 6,0 mm | 9,0 mm | G1/8" |
| PVGE062 | PVDF | 6,0 mm | 9,0 mm | G3/8" |
| PVGE063 | PVDF | 6,0 mm | 9,0 mm | NPT1/4" |
| PVGE064 | PVDF | 6,0 mm | 10,0 mm | G1/2" |
| PVGE065 | PVDF | 6,0 mm | 10,0 mm | G1/4" |
| PVGE066 | PVDF | 6,0 mm | 10,0 mm | G1/8" |
| PVGE067 | PVDF | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/2" |
| PVGE068 | PVDF | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/4" |
| PVGE069 | PVDF | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/8" |
| PVGE070 | PVDF | 6,35 mm (1/4") | 9,53 mm (3/8") | G3/8" |
| PVGE071 | PVDF | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/2" |
| PVGE072 | PVDF | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/4" |
| PVGE073 | PVDF | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT3/8" |
| PVGE074 | PVDF | 8,0 mm | 10,0 mm | G1/2" |
| PVGE076 | PVDF | 8,0 mm | 10,0 mm | G1/4" |
| PVGE078 | PVDF | 8,0 mm | 10,0 mm | G1/8" |
| PVGE080 | PVDF | 8,0 mm | 10,0 mm | G3/8" |
| PVGE082 | PVDF | 8,0 mm | 10,0 mm | NPT1/2" |
| PVGE083 | PVDF | 8,0 mm | 10,0 mm | NPT1/4" |
| PVGE084 | PVDF | 8,0 mm | 10,0 mm | NPT1/8" |
| PVGE085 | PVDF | 8,0 mm | 10,0 mm | NPT3/8" |
| PVGE086 | PVDF | 8,0 mm | 12,0 mm | G1/2" |
| PVGE087 | PVDF | 8,0 mm | 12,0 mm | G1/4" |
| PVGE088 | PVDF | 8,0 mm | 12,0 mm | NPT1/2" |
| PVGE089 | PVDF | 9,0 mm | 12,0 mm | G1/2" |
| PVGE090 | PVDF | 9,0 mm | 12,0 mm | G1/4" |
| PVGE091 | PVDF | 9,0 mm | 12,0 mm | G3/8" |
| PVGE092 | PVDF | 9,0 mm | 12,0 mm | NPT1/2" |
| PVGE093 | PVDF | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/2" |
| PVGE095 | PVDF | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/4" |
| PVGE096 | PVDF | 9,53 mm (3/8") | 12,7 mm (1/2") | G3/8" |
| PVGE097 | PVDF | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/2" |
| PVGE098 | PVDF | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/4" |
| PVGE099 | PVDF | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/8" |
| PVGE100 | PVDF | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/4" |
| PVGE101 | PVDF | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/8" |
| PVGE102 | PVDF | 10,0 mm | 12,0 mm | M12x1,5 |
| PVGE103 | PVDF | 10,0 mm | 12,0 mm | G1" |
| PVGE104 | PVDF | 10,0 mm | 12,0 mm | G1/2" |
| PVGE107 | PVDF | 10,0 mm | 12,0 mm | G1/4" |
| PVGE109 | PVDF | 10,0 mm | 12,0 mm | G1/8" |
| PVGE110 | PVDF | 10,0 mm | 12,0 mm | G3/4" |
| PVGE111 | PVDF | 10,0 mm | 12,0 mm | G3/8" |
| PVGE113 | PVDF | 10,0 mm | 12,0 mm | NPT1/2" |
| PVGE114 | PVDF | 10,0 mm | 12,0 mm | NPT1/4" |
| PVGE115 | PVDF | 10,0 mm | 12,0 mm | NPT3/8" |
| PVGE116 | PVDF | 10,0 mm | 14,0 mm | G1/2" |
| PVGE117 | PVDF | 10,0 mm | 14,0 mm | G3/8" |
| PVGE118 | PVDF | 12,0 mm | 14,0 mm | G1/2" |
| PVGE119 | PVDF | 12,0 mm | 14,0 mm | G1/4" |
| PVGE120 | PVDF | 12,0 mm | 16,0 mm | G1/2" |
| PVGE121 | PVDF | 12,0 mm | 16,0 mm | G1/4" |
| PVGE122 | PVDF | 15,88 mm (5/8") | 19,05 mm (3/4") | G1/2" |
| PVGE123 | PVDF | 15,88 mm (5/8") | 19,05 mm (3/4") | G3/4" |
| PVGE124 | PVDF | 15,88 mm (5/8") | 19,05 mm (3/4") | NPT3/4" |
| PVGE125 | PVDF | 16,0 mm | 18,0 mm | G1/2" |
| PVGE126 | PVDF | 18,0 mm | 20,0 mm | G3/4" |
| PVGE127 | PVDF | 18,0 mm | 20,0 mm | NPT1/2" |
| PVGE128 | PVDF | 18,0 mm | 20,0 mm | NPT3/4" |
