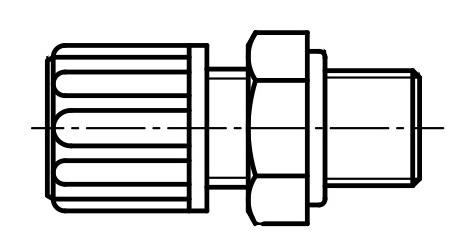

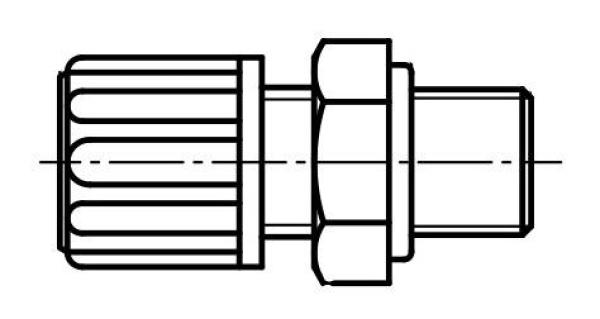

Gerade Einschraubverschraubung
Schraubverbinder - Gerader Einschrauber
Der feste Schlauch bzw. das Kunststoffrohr wird auf die integrierte Tülle geschoben. Mittels der Rändelmutter wird ein Schneidring angezogen, der den Schlauch klemmt. Ein Dichtring verschließt die Verbindung. Es entsteht eine kraftschlüssige, dichte und wieder lösbare Verbindung mit geringem Totvolumen. Die andere Seite kann in ein Gegenstück mit dem passenden Gewinde geschraubt werden.
Id1 = Innen-Ø
- Schlauch 1:
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,0 mm
- 4,23 mm (1/6“)
- 4,76 mm (3/16“)
- 5,0 mm
- 6,0 mm
- 6,35 mm (1/4“)
- 8,0 mm
- 9,0 mm
- 9,53 mm (3/8“)
- 10,0 mm
- 12,0 mm
- 14,0 mm
- 16,0 mm
- 18,0 mm
Ad1 = Außen-Ø
- Schlauch 1:
- 6,0 mm
- 6,35 mm (1/4“)
- 8,0 mm
- 9,0 mm
- 9,53 mm (3/8“)
- 10,0 mm
- 12,0 mm
- 12,7 mm (1/2“)
- 14,0 mm
- 16,0 mm
- 18,0 mm
- 20,0 mm
Th1 = Außengewinde:
- G1/2"
- G1/4"
- G1/8"
- G3/8"
- NPT1/4"
- NPT1/8"
- NPT1/2"
- NPT3/8"
- NPT3/4"
- M5x0,8
- M6x1
- M10x1
- M10x1,5
- M12x1,5
- M14x1,5
- M16x1,5
- M20x1,5
- M16x1,5
- UNF1/4"-28
Material:
- PFA
- PVDF
- Polypropylen
Durchmesser
| pn_columntitle | Art.Nr. | Ø Innen | Ø Außen | Gewinde |
|---|---|---|---|---|
| pn_name | PFGE0149 | 22,0 mm | G1" | |
| pn_name | PFGE0001 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/2" |
| pn_name | PFGE0002 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/4" |
| pn_name | PFGE0004 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/8" |
| pn_name | PFGE0005 | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/4" |
| pn_name | PFGE0006 | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/8" |
| pn_name | PFGE0007 | 3,18 mm (1/8") | 6,35 mm (1/4") | UNF1/4"-28 |
| pn_name | PFGE0008 | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/4" |
| pn_name | PFGE0009 | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/8" |
| pn_name | PFGE0010 | 3,97 mm (5/32") | 6,35 mm (1/4") | NPT1/4" |
| pn_name | PFGE0011 | 3,97 mm (5/32") | 6,35 mm (1/4") | NPT1/8" |
| pn_name | PFGE0012 | 4,0 mm | 6,0 mm | M5x0,8 |
| pn_name | PFGE0013 | 4,0 mm | 6,0 mm | M6x1 |
| pn_name | PFGE0015 | 4,0 mm | 6,0 mm | M10x1 |
| pn_name | PFGE0016 | 4,0 mm | 6,0 mm | M10x1,5 |
| pn_name | PFGE0018 | 4,0 mm | 6,0 mm | M12x1,5 |
| pn_name | PFGE0019 | 4,0 mm | 6,0 mm | G1/2" |
| pn_name | PFGE0020 | 4,0 mm | 6,0 mm | G1/4" |
| pn_name | PFGE0024 | 4,0 mm | 6,0 mm | G1/8" |
| pn_name | PFGE0028 | 4,0 mm | 6,0 mm | G3/8" |
| pn_name | PFGE0029 | 4,0 mm | 6,0 mm | NPT1/2" |
| pn_name | PFGE0030 | 4,0 mm | 6,0 mm | NPT1/4" |
| pn_name | PFGE0031 | 4,0 mm | 6,0 mm | NPT1/8" |
| pn_name | PFGE0032 | 4,0 mm | 6,0 mm | NPT3/8" |
| pn_name | PFGE0033 | 4,0 mm | 6,0 mm | UNF1/4"-28 |
| pn_name | PFGE0034 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/2" |
| pn_name | PFGE0035 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/4" |
| pn_name | PFGE0038 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/8" |
| pn_name | PFGE0040 | 4,23 mm (1/6") | 6,35 mm (1/4") | G3/8" |
| pn_name | PFGE0041 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/2" |
| pn_name | PFGE0042 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/4" |
| pn_name | PFGE0043 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/8" |
| pn_name | PFGE0044 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT3/8" |
| pn_name | PFGE0045 | 4,76 mm (3/16") | 6,35 mm (1/4") | G1/4" |
| pn_name | PFGE0046 | 4,76 mm (3/16") | 6,35 mm (1/4") | G1/8" |
| pn_name | PFGE0047 | 5,0 mm | 8,0 mm | G1/2" |
| pn_name | PFGE0048 | 5,0 mm | 8,0 mm | G1/4" |
| pn_name | PFGE0049 | 5,0 mm | 8,0 mm | G1/8" |
| pn_name | PFGE0050 | 5,0 mm | 8,0 mm | NPT1/2" |
| pn_name | PFGE0051 | 6,0 mm | 8,0 mm | M10x1,5 |
| pn_name | PFGE0052 | 6,0 mm | 8,0 mm | M14x1,5 |
| pn_name | PFGE0053 | 6,0 mm | 8,0 mm | M16x1,5 |
| pn_name | PFGE0054 | 6,0 mm | 8,0 mm | M20x1,5 |
| pn_name | PFGE0055 | 6,0 mm | 8,0 mm | G1/2" |
| pn_name | PFGE0056 | 6,0 mm | 8,0 mm | G1/4" |
| pn_name | PFGE0059 | 6,0 mm | 8,0 mm | G1/8" |
| pn_name | PFGE0060 | 6,0 mm | 8,0 mm | G3/8" |
| pn_name | PFGE0062 | 6,0 mm | 8,0 mm | NPT1/2" |
| pn_name | PFGE0063 | 6,0 mm | 8,0 mm | NPT1/4" |
| pn_name | PFGE0064 | 6,0 mm | 8,0 mm | NPT1/8" |
| pn_name | PFGE0065 | 6,0 mm | 8,0 mm | NPT3/8" |
| pn_name | PFGE0066 | 6,0 mm | 9,0 mm | G1/4" |
| pn_name | PFGE0067 | 6,0 mm | 9,0 mm | G1/8" |
| pn_name | PFGE0068 | 6,0 mm | 9,0 mm | G3/8" |
| pn_name | PFGE0069 | 6,0 mm | 10,0 mm | M10x1,5 |
| pn_name | PFGE0070 | 6,0 mm | 10,0 mm | G1/2" |
| pn_name | PFGE0071 | 6,0 mm | 10,0 mm | G1/4" |
| pn_name | PFGE0072 | 6,0 mm | 10,0 mm | G1/8" |
| pn_name | PFGE0073 | 6,0 mm | 10,0 mm | G3/8" |
| pn_name | PFGE0074 | 6,0 mm | 10,0 mm | NPT1/2" |
| pn_name | PFGE0075 | 6,0 mm | 10,0 mm | NPT1/4" |
| pn_name | PFGE0076 | 6,0 mm | 10,0 mm | NPT1/8" |
| pn_name | PFGE0077 | 6,0 mm | 10,0 mm | NPT3/8" |
| pn_name | PFGE0078 | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/2" |
| pn_name | PFGE0080 | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/4" |
| pn_name | PFGE0081 | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/8" |
| pn_name | PFGE0082 | 6,35 mm (1/4") | 9,53 mm (3/8") | G3/8" |
| pn_name | PFGE0083 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/2" |
| pn_name | PFGE0084 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/4" |
| pn_name | PFGE0085 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/8" |
| pn_name | PFGE0086 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT3/8" |
| pn_name | PFGE0087 | 8,0 mm | 10,0 mm | M10x1,5 |
| pn_name | PFGE0088 | 8,0 mm | 10,0 mm | G1/2" |
| pn_name | PFGE0089 | 8,0 mm | 10,0 mm | G1/4" |
| pn_name | PFGE0091 | 8,0 mm | 10,0 mm | G1/8" |
| pn_name | PFGE0093 | 8,0 mm | 10,0 mm | G3/8" |
| pn_name | PFGE0095 | 8,0 mm | 10,0 mm | NPT1/2" |
| pn_name | PFGE0096 | 8,0 mm | 10,0 mm | NPT1/4" |
| pn_name | PFGE0097 | 8,0 mm | 10,0 mm | NPT1/8" |
| pn_name | PFGE0098 | 8,0 mm | 10,0 mm | NPT3/8" |
| pn_name | PFGE0099 | 8,0 mm | 12,0 mm | G1/2" |
| pn_name | PFGE0100 | 8,0 mm | 12,0 mm | G1/4" |
| pn_name | PFGE0101 | 8,0 mm | 12,0 mm | G3/8" |
| pn_name | PFGE0102 | 8,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PFGE0103 | 8,0 mm | 12,0 mm | NPT1/4" |
| pn_name | PFGE0104 | 8,0 mm | 12,0 mm | NPT3/8" |
| pn_name | PFGE0105 | 9,0 mm | 12,0 mm | G1/2" |
| pn_name | PFGE0106 | 9,0 mm | 12,0 mm | G1/4" |
| pn_name | PFGE0107 | 9,0 mm | 12,0 mm | G3/8" |
| pn_name | PFGE0108 | 9,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PFGE0109 | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/2" |
| pn_name | PFGE0110 | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/4" |
| pn_name | PFGE0112 | 9,53 mm (3/8") | 12,7 mm (1/2") | G3/8" |
| pn_name | PFGE0113 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/2" |
| pn_name | PFGE0114 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/4" |
| pn_name | PFGE0115 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/4" |
| pn_name | PFGE0116 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/8" |
| pn_name | PFGE0117 | 10,0 mm | 12,0 mm | M12x1,5 |
| pn_name | PFGE0118 | 10,0 mm | 12,0 mm | M18x1,5 |
| pn_name | PFGE0119 | 10,0 mm | 12,0 mm | G1/2" |
| pn_name | PFGE0121 | 10,0 mm | 12,0 mm | G1/4" |
| pn_name | PFGE0122 | 10,0 mm | 12,0 mm | G1/8" |
| pn_name | PFGE0123 | 10,0 mm | 12,0 mm | G3/4" |
| pn_name | PFGE0124 | 10,0 mm | 12,0 mm | G3/8" |
| pn_name | PFGE0126 | 10,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PFGE0127 | 10,0 mm | 12,0 mm | NPT1/4" |
| pn_name | PFGE0128 | 10,0 mm | 12,0 mm | NPT3/4" |
| pn_name | PFGE0129 | 10,0 mm | 12,0 mm | NPT3/8" |
| pn_name | PFGE0130 | 10,0 mm | 14,0 mm | G1/2" |
| pn_name | PFGE0131 | 10,0 mm | 14,0 mm | G3/8" |
| pn_name | PFGE0132 | 12,0 mm | 14,0 mm | G1/2" |
| pn_name | PFGE0133 | 12,0 mm | 14,0 mm | G1/4" |
| pn_name | PFGE0134 | 12,0 mm | 14,0 mm | G3/4" |
| pn_name | PFGE0135 | 12,0 mm | 14,0 mm | G3/8" |
| pn_name | PFGE0136 | 12,0 mm | 14,0 mm | NPT1/2" |
| pn_name | PFGE0137 | 12,0 mm | 14,0 mm | NPT1/4" |
| pn_name | PFGE0138 | 12,0 mm | 14,0 mm | NPT3/8" |
| pn_name | PFGE0139 | 12,0 mm | 16,0 mm | G1/2" |
| pn_name | PFGE0140 | 12,0 mm | 16,0 mm | NPT1/2" |
| pn_name | PFGE0141 | 14,0 mm | 16,0 mm | G1/2" |
| pn_name | PFGE0142 | 14,0 mm | 16,0 mm | G3/8" |
| pn_name | PFGE0143 | 14,0 mm | 16,0 mm | NPT1/2" |
| pn_name | PFGE0144 | 14,0 mm | 16,0 mm | NPT3/4" |
| pn_name | PFGE0145 | 16,0 mm | 18,0 mm | G1/2" |
| pn_name | PFGE0146 | 16,0 mm | 20,0 mm | G1/2" |
| pn_name | PFGE0147 | 16,0 mm | 20,0 mm | G3/4" |
| pn_name | PFGE0148 | 18,0 mm | 20,0 mm | G3/4" |
| pn_columntitle | Art.Nr. | Ø Innen | Ø Außen | Gewinde |
|---|---|---|---|---|
| pn_name | PPGE001 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/2" |
| pn_name | PPGE002 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/4" |
| pn_name | PPGE003 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/8" |
| pn_name | PPGE004 | 3,18 mm (1/8") | 6,35 mm (1/4") | G3/8" |
| pn_name | PPGE005 | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/4" |
| pn_name | PPGE006 | 3,18 mm (1/8") | 6,35 mm (1/4") | UNF1/4"-28 |
| pn_name | PPGE007 | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/4" |
| pn_name | PPGE008 | 4,0 mm | 6,0 mm | M5x0,8 |
| pn_name | PPGE009 | 4,0 mm | 6,0 mm | M6x1 |
| pn_name | PPGE010 | 4,0 mm | 6,0 mm | M10x1 |
| pn_name | PPGE011 | 4,0 mm | 6,0 mm | M12x1,5 |
| pn_name | PPGE012 | 4,0 mm | 6,0 mm | G1/2" |
| pn_name | PPGE014 | 4,0 mm | 6,0 mm | G1/4" |
| pn_name | PPGE017 | 4,0 mm | 6,0 mm | G1/8" |
| pn_name | PPGE020 | 4,0 mm | 6,0 mm | G3/8" |
| pn_name | PPGE022 | 4,0 mm | 6,0 mm | NPT1/2" |
| pn_name | PPGE023 | 4,0 mm | 6,0 mm | NPT1/4" |
| pn_name | PPGE024 | 4,0 mm | 6,0 mm | NPT1/8" |
| pn_name | PPGE025 | 4,0 mm | 6,0 mm | NPT3/8" |
| pn_name | PPGE026 | 4,0 mm | 6,0 mm | UNF1/4"-28 |
| pn_name | PPGE027 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/2" |
| pn_name | PPGE028 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/4" |
| pn_name | PPGE029 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/8" |
| pn_name | PPGE030 | 4,23 mm (1/6") | 6,35 mm (1/4") | G3/8" |
| pn_name | PPGE031 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/4" |
| pn_name | PPGE032 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/8" |
| pn_name | PPGE033 | 5,0 mm | 8,0 mm | G1/2" |
| pn_name | PPGE034 | 5,0 mm | 8,0 mm | G1/4" |
| pn_name | PPGE035 | 5,0 mm | 8,0 mm | G1/8" |
| pn_name | PPGE036 | 5,0 mm | 8,0 mm | G3/8" |
| pn_name | PPGE037 | 6,0 mm | 8,0 mm | M10x1 |
| pn_name | PPGE038 | 6,0 mm | 8,0 mm | M10x1,5 |
| pn_name | PPGE039 | 6,0 mm | 8,0 mm | G1/2" |
| pn_name | PPGE042 | 6,0 mm | 8,0 mm | G1/4" |
| pn_name | PPGE046 | 6,0 mm | 8,0 mm | G1/8" |
| pn_name | PPGE049 | 6,0 mm | 8,0 mm | G3/8" |
| pn_name | PPGE051 | 6,0 mm | 8,0 mm | NPT1/2" |
| pn_name | PPGE052 | 6,0 mm | 8,0 mm | NPT1/4" |
| pn_name | PPGE053 | 6,0 mm | 8,0 mm | NPT1/8" |
| pn_name | PPGE054 | 6,0 mm | 8,0 mm | NPT3/8" |
| pn_name | PPGE055 | 6,0 mm | 9,0 mm | G1/2" |
| pn_name | PPGE056 | 6,0 mm | 9,0 mm | G1/4" |
| pn_name | PPGE057 | 6,0 mm | 9,0 mm | G1/8" |
| pn_name | PPGE058 | 6,0 mm | 9,0 mm | G3/8" |
| pn_name | PPGE059 | 6,0 mm | 9,0 mm | NPT1/2" |
| pn_name | PPGE060 | 6,0 mm | 9,0 mm | NPT1/4" |
| pn_name | PPGE061 | 6,0 mm | 9,0 mm | NPT3/8" |
| pn_name | PPGE062 | 6,0 mm | 10,0 mm | G1/4" |
| pn_name | PPGE064 | 6,0 mm | 10,0 mm | G3/8" |
| pn_name | PPGE066 | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/2" |
| pn_name | PPGE067 | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/4" |
| pn_name | PPGE068 | 6,35 mm (1/4") | 9,53 mm (3/8") | G3/8" |
| pn_name | PPGE069 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/4" |
| pn_name | PPGE070 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT3/8" |
| pn_name | PPGE071 | 8,0 mm | 10,0 mm | G1/2" |
| pn_name | PPGE074 | 8,0 mm | 10,0 mm | G1/4" |
| pn_name | PPGE077 | 8,0 mm | 10,0 mm | G1/8" |
| pn_name | PPGE078 | 8,0 mm | 10,0 mm | G3/8" |
| pn_name | PPGE081 | 8,0 mm | 10,0 mm | NPT1/2" |
| pn_name | PPGE082 | 8,0 mm | 10,0 mm | NPT1/4" |
| pn_name | PPGE083 | 8,0 mm | 10,0 mm | NPT1/8" |
| pn_name | PPGE084 | 8,0 mm | 10,0 mm | NPT3/8" |
| pn_name | PPGE085 | 8,0 mm | 12,0 mm | G1/2" |
| pn_name | PPGE086 | 8,0 mm | 12,0 mm | G1/4" |
| pn_name | PPGE087 | 8,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PPGE088 | 8,0 mm | 12,0 mm | NPT1/4" |
| pn_name | PPGE089 | 9,0 mm | 12,0 mm | G1/2" |
| pn_name | PPGE090 | 9,0 mm | 12,0 mm | G1/4" |
| pn_name | PPGE091 | 9,0 mm | 12,0 mm | G1/8" |
| pn_name | PPGE092 | 9,0 mm | 12,0 mm | G3/4" |
| pn_name | PPGE093 | 9,0 mm | 12,0 mm | G3/8" |
| pn_name | PPGE094 | 9,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PPGE095 | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/2" |
| pn_name | PPGE096 | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/4" |
| pn_name | PPGE097 | 9,53 mm (3/8") | 12,7 mm (1/2") | G3/4" |
| pn_name | PPGE098 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/2" |
| pn_name | PPGE099 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/4" |
| pn_name | PPGE100 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/8" |
| pn_name | PPGE101 | 10,0 mm | 12,0 mm | M16x1,5 |
| pn_name | PPGE102 | 10,0 mm | 12,0 mm | G1/2" |
| pn_name | PPGE105 | 10,0 mm | 12,0 mm | G1/4" |
| pn_name | PPGE107 | 10,0 mm | 12,0 mm | G1/8" |
| pn_name | PPGE108 | 10,0 mm | 12,0 mm | G3/4" |
| pn_name | PPGE109 | 10,0 mm | 12,0 mm | G3/8" |
| pn_name | PPGE110 | 10,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PPGE111 | 10,0 mm | 12,0 mm | NPT1/4" |
| pn_name | PPGE112 | 10,0 mm | 12,0 mm | NPT1/8" |
| pn_name | PPGE113 | 10,0 mm | 12,0 mm | NPT3/8" |
| pn_name | PPGE114 | 10,0 mm | 14,0 mm | G1/2" |
| pn_name | PPGE115 | 10,0 mm | 14,0 mm | NPT1/4" |
| pn_name | PPGE116 | 10,0 mm | 14,0 mm | NPT3/8" |
| pn_name | PPGE117 | 12,0 mm | 14,0 mm | G1/2" |
| pn_name | PPGE118 | 12,0 mm | 14,0 mm | G1/4" |
| pn_name | PPGE119 | 12,0 mm | 14,0 mm | G3/8" |
| pn_name | PPGE120 | 12,0 mm | 14,0 mm | NPT1/2" |
| pn_name | PPGE121 | 12,0 mm | 16,0 mm | G1/2" |
| pn_name | PPGE122 | 12,0 mm | 16,0 mm | G1/4" |
| pn_name | PPGE123 | 12,0 mm | 16,0 mm | G3/8" |
| pn_name | PPGE124 | 14,0 mm | 16,0 mm | M14x1,5 |
| pn_name | PPGE126 | 14,0 mm | 16,0 mm | NPT1/2" |
| pn_name | PPGE125 | 15,88 mm (5/8") | 19,05 mm (3/4") | G1/2" |
| pn_name | PPGE127 | 15,88 mm (5/8") | 19,05 mm (3/4") | NPT3/4" |
| pn_name | PPGE128 | 16,0 mm | 20,0 mm | G1/2" |
| pn_name | PPGE130 | 16,0 mm | 20,0 mm | G3/4" |
| pn_columntitle | Art.Nr. | Ø Innen | Ø Außen | Gewinde |
|---|---|---|---|---|
| pn_name | PVGE001 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/2" |
| pn_name | PVGE002 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/4" |
| pn_name | PVGE003 | 3,18 mm (1/8") | 6,35 mm (1/4") | G1/8" |
| pn_name | PVGE005 | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/2" |
| pn_name | PVGE006 | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/4" |
| pn_name | PVGE007 | 3,18 mm (1/8") | 6,35 mm (1/4") | NPT1/8" |
| pn_name | PVGE008 | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/2" |
| pn_name | PVGE009 | 3,97 mm (5/32") | 6,35 mm (1/4") | G1/8" |
| pn_name | PVGE010 | 3,97 mm (5/32") | 6,35 mm (1/4") | NPT1/4" |
| pn_name | PVGE011 | 3,97 mm (5/32") | 6,35 mm (1/4") | NPT1/8" |
| pn_name | PVGE012 | 4,0 mm | 6,0 mm | M5x0,8 |
| pn_name | PVGE013 | 4,0 mm | 6,0 mm | M6x1 |
| pn_name | PVGE014 | 4,0 mm | 6,0 mm | M10x1 |
| pn_name | PVGE016 | 4,0 mm | 6,0 mm | M12x1,5 |
| pn_name | PVGE017 | 4,0 mm | 6,0 mm | G1/2" |
| pn_name | PVGE019 | 4,0 mm | 6,0 mm | G1/4" |
| pn_name | PVGE021 | 4,0 mm | 6,0 mm | G1/8" |
| pn_name | PVGE023 | 4,0 mm | 6,0 mm | G3/8" |
| pn_name | PVGE025 | 4,0 mm | 6,0 mm | NPT1/2" |
| pn_name | PVGE026 | 4,0 mm | 6,0 mm | NPT1/4" |
| pn_name | PVGE027 | 4,0 mm | 6,0 mm | NPT1/8" |
| pn_name | PVGE028 | 4,0 mm | 6,0 mm | NPT3/8" |
| pn_name | PVGE029 | 4,0 mm | 6,0 mm | UNF1/4"-28 |
| pn_name | PVGE030 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/2" |
| pn_name | PVGE032 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/4" |
| pn_name | PVGE033 | 4,23 mm (1/6") | 6,35 mm (1/4") | G1/8" |
| pn_name | PVGE034 | 4,23 mm (1/6") | 6,35 mm (1/4") | G3/8" |
| pn_name | PVGE035 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/2" |
| pn_name | PVGE036 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/4" |
| pn_name | PVGE037 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT1/8" |
| pn_name | PVGE038 | 4,23 mm (1/6") | 6,35 mm (1/4") | NPT3/8" |
| pn_name | PVGE039 | 5,0 mm | 8,0 mm | G1/2" |
| pn_name | PVGE041 | 5,0 mm | 8,0 mm | G1/4" |
| pn_name | PVGE042 | 5,0 mm | 8,0 mm | G1/8" |
| pn_name | PVGE043 | 5,0 mm | 8,0 mm | G3/8" |
| pn_name | PVGE044 | 5,0 mm | 8,0 mm | NPT1/4" |
| pn_name | PVGE045 | 6,0 mm | 8,0 mm | M12x1,5 |
| pn_name | PVGE046 | 6,0 mm | 8,0 mm | G1/2" |
| pn_name | PVGE048 | 6,0 mm | 8,0 mm | G1/4" |
| pn_name | PVGE051 | 6,0 mm | 8,0 mm | G1/8" |
| pn_name | PVGE053 | 6,0 mm | 8,0 mm | G3/8" |
| pn_name | PVGE055 | 6,0 mm | 8,0 mm | NPT1/2" |
| pn_name | PVGE056 | 6,0 mm | 8,0 mm | NPT1/4" |
| pn_name | PVGE057 | 6,0 mm | 8,0 mm | NPT1/8" |
| pn_name | PVGE058 | 6,0 mm | 8,0 mm | NPT3/8" |
| pn_name | PVGE059 | 6,0 mm | 9,0 mm | G1/2" |
| pn_name | PVGE060 | 6,0 mm | 9,0 mm | G1/4" |
| pn_name | PVGE061 | 6,0 mm | 9,0 mm | G1/8" |
| pn_name | PVGE062 | 6,0 mm | 9,0 mm | G3/8" |
| pn_name | PVGE063 | 6,0 mm | 9,0 mm | NPT1/4" |
| pn_name | PVGE064 | 6,0 mm | 10,0 mm | G1/2" |
| pn_name | PVGE065 | 6,0 mm | 10,0 mm | G1/4" |
| pn_name | PVGE066 | 6,0 mm | 10,0 mm | G1/8" |
| pn_name | PVGE067 | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/2" |
| pn_name | PVGE068 | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/4" |
| pn_name | PVGE069 | 6,35 mm (1/4") | 9,53 mm (3/8") | G1/8" |
| pn_name | PVGE070 | 6,35 mm (1/4") | 9,53 mm (3/8") | G3/8" |
| pn_name | PVGE071 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/2" |
| pn_name | PVGE072 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT1/4" |
| pn_name | PVGE073 | 6,35 mm (1/4") | 9,53 mm (3/8") | NPT3/8" |
| pn_name | PVGE074 | 8,0 mm | 10,0 mm | G1/2" |
| pn_name | PVGE076 | 8,0 mm | 10,0 mm | G1/4" |
| pn_name | PVGE078 | 8,0 mm | 10,0 mm | G1/8" |
| pn_name | PVGE080 | 8,0 mm | 10,0 mm | G3/8" |
| pn_name | PVGE082 | 8,0 mm | 10,0 mm | NPT1/2" |
| pn_name | PVGE083 | 8,0 mm | 10,0 mm | NPT1/4" |
| pn_name | PVGE084 | 8,0 mm | 10,0 mm | NPT1/8" |
| pn_name | PVGE085 | 8,0 mm | 10,0 mm | NPT3/8" |
| pn_name | PVGE086 | 8,0 mm | 12,0 mm | G1/2" |
| pn_name | PVGE087 | 8,0 mm | 12,0 mm | G1/4" |
| pn_name | PVGE088 | 8,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PVGE089 | 9,0 mm | 12,0 mm | G1/2" |
| pn_name | PVGE090 | 9,0 mm | 12,0 mm | G1/4" |
| pn_name | PVGE091 | 9,0 mm | 12,0 mm | G3/8" |
| pn_name | PVGE092 | 9,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PVGE093 | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/2" |
| pn_name | PVGE095 | 9,53 mm (3/8") | 12,7 mm (1/2") | G1/4" |
| pn_name | PVGE096 | 9,53 mm (3/8") | 12,7 mm (1/2") | G3/8" |
| pn_name | PVGE097 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/2" |
| pn_name | PVGE098 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/4" |
| pn_name | PVGE099 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT1/8" |
| pn_name | PVGE100 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/4" |
| pn_name | PVGE101 | 9,53 mm (3/8") | 12,7 mm (1/2") | NPT3/8" |
| pn_name | PVGE102 | 10,0 mm | 12,0 mm | M12x1,5 |
| pn_name | PVGE103 | 10,0 mm | 12,0 mm | G1" |
| pn_name | PVGE104 | 10,0 mm | 12,0 mm | G1/2" |
| pn_name | PVGE107 | 10,0 mm | 12,0 mm | G1/4" |
| pn_name | PVGE109 | 10,0 mm | 12,0 mm | G1/8" |
| pn_name | PVGE110 | 10,0 mm | 12,0 mm | G3/4" |
| pn_name | PVGE111 | 10,0 mm | 12,0 mm | G3/8" |
| pn_name | PVGE113 | 10,0 mm | 12,0 mm | NPT1/2" |
| pn_name | PVGE114 | 10,0 mm | 12,0 mm | NPT1/4" |
| pn_name | PVGE115 | 10,0 mm | 12,0 mm | NPT3/8" |
| pn_name | PVGE116 | 10,0 mm | 14,0 mm | G1/2" |
| pn_name | PVGE117 | 10,0 mm | 14,0 mm | G3/8" |
| pn_name | PVGE118 | 12,0 mm | 14,0 mm | G1/2" |
| pn_name | PVGE119 | 12,0 mm | 14,0 mm | G1/4" |
| pn_name | PVGE120 | 12,0 mm | 16,0 mm | G1/2" |
| pn_name | PVGE121 | 12,0 mm | 16,0 mm | G1/4" |
| pn_name | PVGE122 | 15,88 mm (5/8") | 19,05 mm (3/4") | G1/2" |
| pn_name | PVGE123 | 15,88 mm (5/8") | 19,05 mm (3/4") | G3/4" |
| pn_name | PVGE124 | 15,88 mm (5/8") | 19,05 mm (3/4") | NPT3/4" |
| pn_name | PVGE125 | 16,0 mm | 18,0 mm | G1/2" |
| pn_name | PVGE126 | 18,0 mm | 20,0 mm | G3/4" |
| pn_name | PVGE127 | 18,0 mm | 20,0 mm | NPT1/2" |
| pn_name | PVGE128 | 18,0 mm | 20,0 mm | NPT3/4" |
