Barbed fitting Y
You'll receive an offer including delivery time as soon as possible.

Requested quantity can deviate from the minimum order quantity.
Ask about product
Description

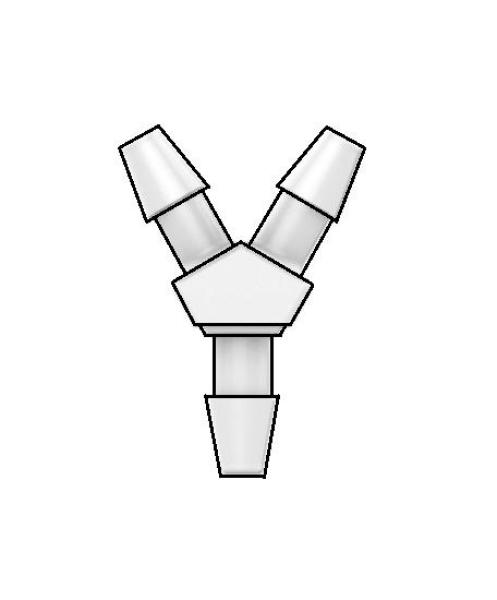

Y tubing connector

The soft tubings are stretched by sliding it over the barbed sides in the right dimensions. They are fixed on the connector due to their selfequilibrating stress of the soft tubing material. For more stability of the connection use an extra clamping piece to fix the tube. A solid, form-fit, leak-tight and removable Y-connection with low dead volume is the result.
Id1 = Inner-Ø
  • Tube 1:
  • 1,59 mm (1/16“)
  • 2,38 mm (3/32“)
  • 3,18 mm (1/8“)
  • 3,97 mm (5/32“)
  • 4,76 mm (3/16“)
  • 6,35 mm (1/4“)
Id2 = Inner-Ø
  • Tube 2:
  • 1,59 mm (1/16“)
  • 2,38 mm (3/32“)
  • 3,18 mm (1/8“)
  • 3,97 mm (5/32“)
  • 4,76 mm (3/16“)
  • 6,35 mm (1/4“)
Id3 = Inner-Ø
  • Tube 3:
  • 1,59 mm (1/16“)
  • 2,38 mm (3/32“)
  • 3,18 mm (1/8“)
  • 3,97 mm (5/32“)
  • 4,76 mm (3/16“)
  • 6,35 mm (1/4“)
Dimensions

Diameters

Art.No.Ø InnerØ Inner 2Ø Inner 3
KY1,59Y1,59Y1,591,59 mm (1/16")1,59 mm (1/16")1,59 mm (1/16")
KY2,38Y2,38Y2,382,38 mm (3/32")2,38 mm (3/32")2,38 mm (3/32")
KY3,18Y3,18Y3,183,18 mm (1/8")3,18 mm (1/8")3,18 mm (1/8")
KY3,97Y3,97Y3,973,97 mm (5/32")3,97 mm (5/32")3,97 mm (5/32")
KY4,76Y4,76Y4,764,76 mm (3/16")4,76 mm (3/16")4,76 mm (3/16")
KY6,35Y6,35Y6,356,35 mm (1/4")6,35 mm (1/4")6,35 mm (1/4")
Art.No.Ø InnerØ Inner 2Ø Inner 3
PP1,59Y1,59Y1,591,59 mm (1/16")1,59 mm (1/16")1,59 mm (1/16")
PP2,38Y2,38Y2,382,38 mm (3/32")2,38 mm (3/32")2,38 mm (3/32")
PP3,18Y3,18Y3,183,18 mm (1/8")3,18 mm (1/8")3,18 mm (1/8")
PP3,97Y3,97Y3,973,97 mm (5/32")3,97 mm (5/32")3,97 mm (5/32")
PP4,76Y4,76Y4,764,76 mm (3/16")4,76 mm (3/16")4,76 mm (3/16")
PP6,35Y6,35Y6,356,35 mm (1/4")6,35 mm (1/4")6,35 mm (1/4")
