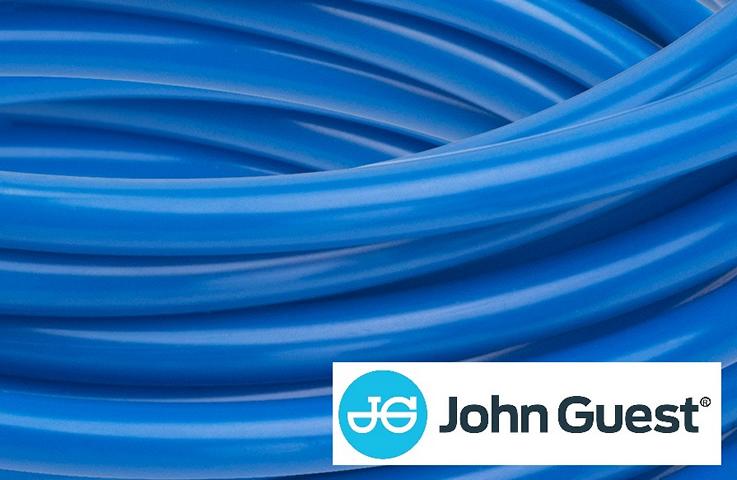

John Guest® PE Drinking Water Tubing
Meets the requirements KTW DVGW - W270
Proven quality for a variety of applications over many years
John Guest® PE Drinking Water Tubing are characterized by extremely low water absorption, low specific weight, high impact strength, flexibility, good wear resistance and good general durability as well as a very good price-performance ratio. They are excellent for use with quick connect fittings .
All important approvals for drinking water systems
The following approvals are available:
- KTW und DVGW - W270 (D/Germany)
- WRAS (GB / Great Britain)
- NSF 51 & 61 und FDA konform (USA)
- ITC (CZ/Czech Republic)
- ACS (F/France)
- GOST (ROU/Romania)
Different colors for easy installation
The following standard colors are available for color coding:
blue, red, natural, black
blue, red, natural, black
Ask about suitable connections and couplings
We also supply the well-known John Guest® Push-Fit connectors and valves to suit all sizes.
Features and Benefits
- tasteless and odorless
- low water absorption
- flexible
- good general consistency
- suitable for quick connectors
- approvals for drinking water
- imperial and metric standard dimensions
Typical Applications
- food and beverage industry
- drinking water systems
- dispensing / beer systems
- water filter
- refrigerators
- reverse osmosis system
John Guest® PE Tube - Diameters and wall thickness
Art.No. | Ø Inner | Ø Outer | Wall | Color |
---|---|---|---|---|
PE2,5BL4,0JG | 2,5 mm | 4,0 mm | 0,75 mm | blue |
PE2,5NA4,0JG | 2,5 mm | 4,0 mm | 0,75 mm | natural |
PE2,5RT4,0JG | 2,5 mm | 4,0 mm | 0,75 mm | red |
PE2,5SW4,0JG | 2,5 mm | 4,0 mm | 0,75 mm | black |
PE4,0BL6,0JG | 4,0 mm | 6,0 mm | 1,0 mm | blue |
PE4,0NA6,0JG | 4,0 mm | 6,0 mm | 1,0 mm | natural |
PE4,0RT6,0JG | 4,0 mm | 6,0 mm | 1,0 mm | red |
PE4,0SW6,0JG | 4,0 mm | 6,0 mm | 1,0 mm | black |
PE4,3BL6,35JG | 4,3 mm | 6,35 mm (1/4") | 1,03 mm | blue |
PE4,3NA6,35JG | 4,3 mm | 6,35 mm (1/4") | 1,03 mm | natural |
PE4,3RT6,35JG | 4,3 mm | 6,35 mm (1/4") | 1,03 mm | red |
PE4,3SW6,35JG | 4,3 mm | 6,35 mm (1/4") | 1,03 mm | black |
PE4,76SW7,94JG | 4,76 mm (3/16") | 7,94 mm (5/16") | 1,59 mm (1/16") | black |
PE4,76RT7,94JG | 4,76 mm (3/16") | 7,94 mm (5/16") | 1,59 mm (1/16") | red |
PE4,76BL7,94JG | 4,76 mm (3/16") | 7,94 mm (5/16") | 1,59 mm (1/16") | blue |
PE4,76NA7,94JG | 4,76 mm (3/16") | 7,94 mm (5/16") | 1,59 mm (1/16") | natural |
PE6,0BL8,0JG | 6,0 mm | 8,0 mm | 1,0 mm | blue |
PE6,0NA8,0JG | 6,0 mm | 8,0 mm | 1,0 mm | natural |
PE6,0RT8,0JG | 6,0 mm | 8,0 mm | 1,0 mm | red |
PE6,0SW8,0JG | 6,0 mm | 8,0 mm | 1,0 mm | black |
PE6,35SW9,53JG | 6,35 mm (1/4") | 9,53 mm (3/8") | 1,59 mm (1/16") | black |
PE6,35RT9,53JG | 6,35 mm (1/4") | 9,53 mm (3/8") | 1,59 mm (1/16") | red |
PE6,35NA9,53JG | 6,35 mm (1/4") | 9,53 mm (3/8") | 1,59 mm (1/16") | natural |
PE6,35BL9,53JG | 6,35 mm (1/4") | 9,53 mm (3/8") | 1,59 mm (1/16") | blue |
PE7,0BL10,0JG | 7,0 mm | 10,0 mm | 1,5 mm | blue |
PE7,0NA10,0JG | 7,0 mm | 10,0 mm | 1,5 mm | natural |
PE7,0RT10,0JG | 7,0 mm | 10,0 mm | 1,5 mm | red |
PE7,0SW10,0JG | 7,0 mm | 10,0 mm | 1,5 mm | black |
PE9,0BL12,0JG | 9,0 mm | 12,0 mm | 1,5 mm | blue |
PE9,0NA12,0JG | 9,0 mm | 12,0 mm | 1,5 mm | natural |
PE9,0RT12,0JG | 9,0 mm | 12,0 mm | 1,5 mm | red |
PE9,0SW12,0JG | 9,0 mm | 12,0 mm | 1,5 mm | black |
PE9,53SW12,7JG | 9,53 mm (3/8") | 12,7 mm (1/2") | 1,59 mm (1/16") | black |
PE9,53RT12,7JG | 9,53 mm (3/8") | 12,7 mm (1/2") | 1,59 mm (1/16") | red |
PE9,53NA12,7JG | 9,53 mm (3/8") | 12,7 mm (1/2") | 1,59 mm (1/16") | natural |
PE9,53BL12,7JG | 9,53 mm (3/8") | 12,7 mm (1/2") | 1,59 mm (1/16") | blue |
PE11,5BL15,0JG | 11,5 mm | 15,0 mm | 1,75 mm | blue |
