Straight Luer-Adapter male
Male luer to barbed fttiing - adapter
The soft Tubing is stretched by sliding it over the barbed side in the right dimension. It is fixed on the connector due to its self-equilibrating stress of the soft tubing material. For more stability of the connection use an extra clamping piece to fix the tube. A solid, form-fit, leak-tight and removable connection with low dead volume is the result. Opposite side is a male Luer-Lock Adapter (Quick coupling).

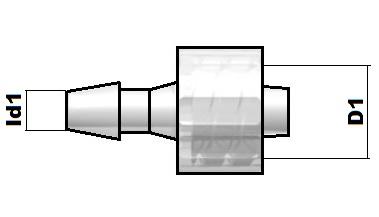

Id1 = Inner-Ø Tubing 1:
- 1,59 mm (1/16“)
- 2,38 mm (3/32“)
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,76 mm (3/16“)
- 6,35 mm (1/4“)
D1 = Luer-Lock:
- Adapter male
Material:
- Polyamid
- Polypropylen
- Kynar® PVDF
- Polycarbonat
Gerader Luer-Adapter männlich - Diameters
| Art.No. | Ø Inner |
|---|---|
| KY1,59STmLuer | 1,59 mm (1/16") |
| KY2,38STmLuer | 2,38 mm (3/32") |
| KY3,18STmLuer | 3,18 mm (1/8") |
| KY3,97STmLuer | 3,97 mm (5/32") |
| KY4,76STmLuer | 4,76 mm (3/16") |
| KY6,35STmLuer | 6,35 mm (1/4") |
| Art.No. | Ø Inner |
|---|---|
| PP1,59STmLuer | 1,59 mm (1/16") |
| PP2,38STmLuer | 2,38 mm (3/32") |
| PP3,18STmLuer | 3,18 mm (1/8") |
| PP3,97STmLuer | 3,97 mm (5/32") |
| PP4,76STmLuer | 4,76 mm (3/16") |
| PP6,35STmLuer | 6,35 mm (1/4") |
