Description

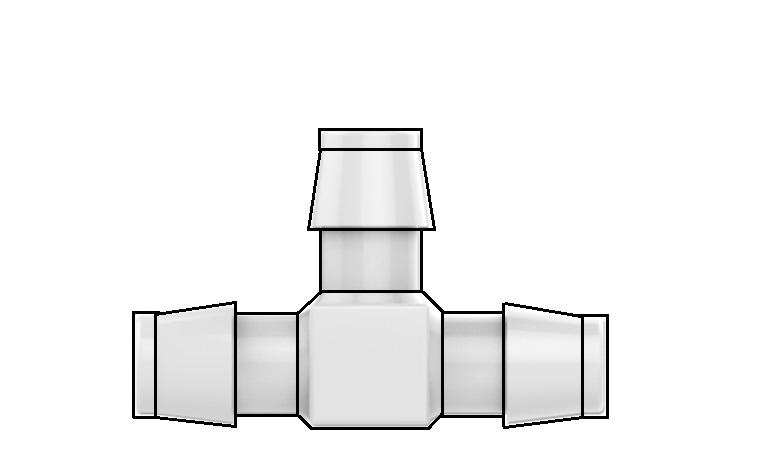

Tee tubing connector

The soft Tubing's are stretched by sliding it over the barbed sides in the right dimensions. They are fixed on the connector due to their self-equilibrating stress of the soft tubing material. For more stability of the connection use an extra clamping piece to fix the tube. A solid, form-fit, leak-tight and removable Tconnection with low dead volume is the result.
Id1 = Inner-Ø
  • Tube 1:
  • 1,59 mm (1/16“)
  • 2,38 mm (3/32“)
  • 3,18 mm (1/8“)
  • 3,97 mm (5/32“)
  • 4,76 mm (3/16“)
  • 6,35 mm (1/4“)
  • 9,53 mm (3/8“)
  • 12,7 mm (1/2“)
Id2 = Inner-Ø
  • Tube 2:
  • 1,59 mm (1/16“)
  • 2,38 mm (3/32“)
  • 3,18 mm (1/8“)
  • 3,97 mm (5/32“)
  • 4,76 mm (3/16“)
  • 6,35 mm (1/4“)
  • 9,53 mm (3/8“)
  • 12,7 mm (1/2“)
Id3 = Inner-Ø
  • Tube 3:
  • 1,59 mm (1/16“)
  • 2,38 mm (3/32“)
  • 3,18 mm (1/8“)
  • 3,97 mm (5/32“)
  • 4,76 mm (3/16“)
  • 6,35 mm (1/4“)
  • 9,53 mm (3/8“)
  • 12,7 mm (1/2“)
Dimensions

Diameters

Art.No.VersionØ InnerØ Inner 2Ø Inner 3
KY1,59T1,59T1,59Kynar®1,59 mm (1/16")1,59 mm (1/16")1,59 mm (1/16")
KY1,59T1,59T3,18Kynar®1,59 mm (1/16")1,59 mm (1/16")3,18 mm (1/8")
KY2,38T2,38T2,38Kynar®2,38 mm (3/32")2,38 mm (3/32")2,38 mm (3/32")
KY3,18T3,18T1,59Kynar®3,18 mm (1/8")3,18 mm (1/8")1,59 mm (1/16")
KY3,18T3,18T2,38Kynar®3,18 mm (1/8")3,18 mm (1/8")2,38 mm (3/32")
KY3,18T3,18T3,18Kynar®3,18 mm (1/8")3,18 mm (1/8")3,18 mm (1/8")
KY3,18T3,18T3,97Kynar®3,18 mm (1/8")3,18 mm (1/8")3,97 mm (5/32")
KY3,18T3,18T4,76Kynar®3,18 mm (1/8")3,18 mm (1/8")4,76 mm (3/16")
KY3,18T3,18T6,35Kynar®3,18 mm (1/8")3,18 mm (1/8")6,35 mm (1/4")
KY3,97T3,97T1,59Kynar®3,97 mm (5/32")3,97 mm (5/32")1,59 mm (1/16")
KY3,97T3,97T2,38Kynar®3,97 mm (5/32")3,97 mm (5/32")2,38 mm (3/32")
KY3,97T3,97T3,18Kynar®3,97 mm (5/32")3,97 mm (5/32")3,18 mm (1/8")
KY3,97T3,97T3,97Kynar®3,97 mm (5/32")3,97 mm (5/32")3,97 mm (5/32")
KY3,97T3,97T4,76Kynar®3,97 mm (5/32")3,97 mm (5/32")4,76 mm (3/16")
KY3,97T3,97T6,35Kynar®3,97 mm (5/32")3,97 mm (5/32")6,35 mm (1/4")
KY4,76T4,76T3,18Kynar®4,76 mm (3/16")4,76 mm (3/16")3,18 mm (1/8")
KY4,76T4,76T4,76Kynar®4,76 mm (3/16")4,76 mm (3/16")4,76 mm (3/16")
KY6,35T6,35T1,59Kynar®6,35 mm (1/4")6,35 mm (1/4")1,59 mm (1/16")
KY6,35T6,35T2,38Kynar®6,35 mm (1/4")6,35 mm (1/4")2,38 mm (3/32")
KY6,35T6,35T3,18Kynar®6,35 mm (1/4")6,35 mm (1/4")3,18 mm (1/8")
KY6,35T6,35T3,97Kynar®6,35 mm (1/4")6,35 mm (1/4")3,97 mm (5/32")
KY6,35T6,35T6,35Kynar®6,35 mm (1/4")6,35 mm (1/4")6,35 mm (1/4")
Art.No.VersionØ InnerØ Inner 2Ø Inner 3
PP1,59T1,59T1,59PP1,59 mm (1/16")1,59 mm (1/16")1,59 mm (1/16")
PP1,59T1,59T2,38PP1,59 mm (1/16")1,59 mm (1/16")2,38 mm (3/32")
PP1,59T1,59T3,18PP1,59 mm (1/16")1,59 mm (1/16")3,18 mm (1/8")
PP2,38T2,38T2,38PP2,38 mm (3/32")2,38 mm (3/32")2,38 mm (3/32")
PP3,18T3,18T1,59PP3,18 mm (1/8")3,18 mm (1/8")1,59 mm (1/16")
PP3,18T3,18T2,38PP3,18 mm (1/8")3,18 mm (1/8")2,38 mm (3/32")
PP3,18T3,18T3,18PP3,18 mm (1/8")3,18 mm (1/8")3,18 mm (1/8")
PP3,18T3,18T3,97PP3,18 mm (1/8")3,18 mm (1/8")3,97 mm (5/32")
PP3,18T3,18T4,76PP3,18 mm (1/8")3,18 mm (1/8")4,76 mm (3/16")
PP3,18T3,18T6,35PP3,18 mm (1/8")3,18 mm (1/8")6,35 mm (1/4")
PP3,97T3,97T1,59PP3,97 mm (5/32")3,97 mm (5/32")1,59 mm (1/16")
PP3,97T3,97T2,38PP3,97 mm (5/32")3,97 mm (5/32")2,38 mm (3/32")
PP3,97T3,97T3,18PP3,97 mm (5/32")3,97 mm (5/32")3,18 mm (1/8")
PP3,97T3,97T3,97PP3,97 mm (5/32")3,97 mm (5/32")3,97 mm (5/32")
PP3,97T3,97T4,76PP3,97 mm (5/32")3,97 mm (5/32")4,76 mm (3/16")
PP3,97T3,97T6,35PP3,97 mm (5/32")3,97 mm (5/32")6,35 mm (1/4")
PP4,76T4,76T3,18PP4,76 mm (3/16")4,76 mm (3/16")3,18 mm (1/8")
PP4,76T4,76T4,76PP4,76 mm (3/16")4,76 mm (3/16")4,76 mm (3/16")
PP6,35T6,35T1,59PP6,35 mm (1/4")6,35 mm (1/4")1,59 mm (1/16")
PP6,35T6,35T2,38PP6,35 mm (1/4")6,35 mm (1/4")2,38 mm (3/32")
PP6,35T6,35T3,18PP6,35 mm (1/4")6,35 mm (1/4")3,18 mm (1/8")
PP6,35T6,35T3,97PP6,35 mm (1/4")6,35 mm (1/4")3,97 mm (5/32")
PP6,35T6,35T6,35PP6,35 mm (1/4")6,35 mm (1/4")6,35 mm (1/4")
PP9,53T9,53T3,18PP9,53 mm (3/8")9,53 mm (3/8")3,18 mm (1/8")
PP9,53T9,53T9,53PP9,53 mm (3/8")9,53 mm (3/8")9,53 mm (3/8")
PP12,7T12,7T12,7PP12,7 mm (1/2")12,7 mm (1/2")12,7 mm (1/2")
PP12,7T12,7T6,35PP12,7 mm (1/2")12,7 mm (1/2")6,35 mm (1/4")
PP12,7T6,35T6,35PP12,7 mm (1/2")6,35 mm (1/4")6,35 mm (1/4")
PP12,7T9,53T9,53PP12,7 mm (1/2")9,53 mm (3/8")9,53 mm (3/8")
PP25,4T25,4T25,4PP25,4 mm (1")25,4 mm (1")25,4 mm (1")
