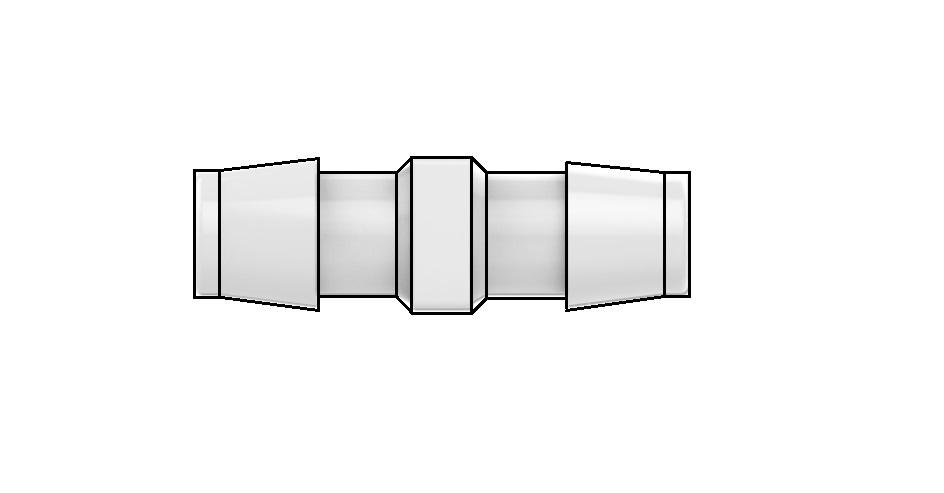

Barbed fitting straight
Straight tubing connector
The soft Tubing's are stretched by sliding it over the barbed sides in the right dimensions. They are fixed on the connector due to their self-equilibrating stress of the soft tubing material. For more stability of the connection use an extra clamping piece to fix the tube. A solid, form-fit, leak-tight and removable connection with low dead volume is the result.

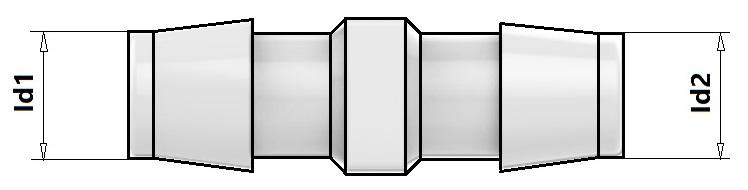

Id1 = Inner-Ø Tube 1:
- 1,59 mm (1/16“)
- 2,38 mm (3/32“)
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,76 mm (3/16“)
- 6,35 mm (1/4“)
- 9,53 mm (3/8“)
- 12,7 mm (1/2“)
Id2 = Inner-Ø Tube 2:
- 1,59 mm (1/16“)
- 2,38 mm (3/32“)
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,76 mm (3/16“)
- 6,35 mm (1/4“)
- 9,53 mm (3/8“)
- 12,7 mm (1/2“)
Material:
- Polyamid
- Polypropylen
- Kynar® PVDF
- Polycarbonat
Diameters
| Art.No. | Ø Inner | Ø Inner 2 |
|---|---|---|
| KY1,59ST1,59 | 1,59 mm (1/16") | 1,59 mm (1/16") |
| KY2,38ST1,59 | 2,38 mm (3/32") | 1,59 mm (1/16") |
| KY2,38ST2,38 | 2,38 mm (3/32") | 2,38 mm (3/32") |
| KY3,18ST1,59 | 3,18 mm (1/8") | 1,59 mm (1/16") |
| KY3,18ST2,38 | 3,18 mm (1/8") | 2,38 mm (3/32") |
| KY3,18ST3,18 | 3,18 mm (1/8") | 3,18 mm (1/8") |
| KY3,97ST1,59 | 3,97 mm (5/32") | 1,59 mm (1/16") |
| KY3,97ST2,38 | 3,97 mm (5/32") | 2,38 mm (3/32") |
| KY3,97ST3,18 | 3,97 mm (5/32") | 3,18 mm (1/8") |
| KY3,97ST3,97 | 3,97 mm (5/32") | 3,97 mm (5/32") |
| KY4,76ST1,59 | 4,76 mm (3/16") | 1,59 mm (1/16") |
| KY4,76ST2,38 | 4,76 mm (3/16") | 2,38 mm (3/32") |
| KY4,76ST3,18 | 4,76 mm (3/16") | 3,18 mm (1/8") |
| KY4,76ST3,97 | 4,76 mm (3/16") | 3,97 mm (5/32") |
| KY4,76ST4,76 | 4,76 mm (3/16") | 4,76 mm (3/16") |
| KY6,35ST3,18 | 6,35 mm (1/4") | 3,18 mm (1/8") |
| KY6,35ST3,97 | 6,35 mm (1/4") | 3,97 mm (5/32") |
| KY6,35ST4,76 | 6,35 mm (1/4") | 4,76 mm (3/16") |
| KY6,35ST6,35 | 6,35 mm (1/4") | 6,35 mm (1/4") |
| KY9,53ST9,53 | 9,53 mm (3/8") | 9,53 mm (3/8") |
| KY12,7ST12,7 | 12,7 mm (1/2") | 12,7 mm (1/2") |
| Art.No. | Ø Inner | Ø Inner 2 |
|---|---|---|
| PP1,59ST1,59 | 1,59 mm (1/16") | 1,59 mm (1/16") |
| PP2,38ST1,59 | 2,38 mm (3/32") | 1,59 mm (1/16") |
| PP2,38ST2,38 | 2,38 mm (3/32") | 2,38 mm (3/32") |
| PP3,18ST1,59 | 3,18 mm (1/8") | 1,59 mm (1/16") |
| PP3,18ST2,38 | 3,18 mm (1/8") | 2,38 mm (3/32") |
| PP3,18ST3,18 | 3,18 mm (1/8") | 3,18 mm (1/8") |
| PP3,97ST1,59 | 3,97 mm (5/32") | 1,59 mm (1/16") |
| PP3,97ST2,38 | 3,97 mm (5/32") | 2,38 mm (3/32") |
| PP3,97ST3,18 | 3,97 mm (5/32") | 3,18 mm (1/8") |
| PP3,97ST3,97 | 3,97 mm (5/32") | 3,97 mm (5/32") |
| PP4,76ST1,59 | 4,76 mm (3/16") | 1,59 mm (1/16") |
| PP4,76ST2,38 | 4,76 mm (3/16") | 2,38 mm (3/32") |
| PP4,76ST3,18 | 4,76 mm (3/16") | 3,18 mm (1/8") |
| PP4,76ST3,97 | 4,76 mm (3/16") | 3,97 mm (5/32") |
| PP4,76ST4,76 | 4,76 mm (3/16") | 4,76 mm (3/16") |
| PP6,35ST3,18 | 6,35 mm (1/4") | 3,18 mm (1/8") |
| PP6,35ST3,97 | 6,35 mm (1/4") | 3,97 mm (5/32") |
| PP6,35ST4,76 | 6,35 mm (1/4") | 4,76 mm (3/16") |
| PP6,35ST6,35 | 6,35 mm (1/4") | 6,35 mm (1/4") |
| PP7,94ST3,18 | 7,94 mm (5/16") | 3,18 mm (1/8") |
| PP7,94ST4,76 | 7,94 mm (5/16") | 4,76 mm (3/16") |
| PP7,94ST7,94 | 7,94 mm (5/16") | 7,94 mm (5/16") |
| PP9,53ST3,18 | 9,53 mm (3/8") | 3,18 mm (1/8") |
| PP9,53ST6,35 | 9,53 mm (3/8") | 6,35 mm (1/4") |
| PP9,53ST9,53 | 9,53 mm (3/8") | 9,53 mm (3/8") |
| PP12,7ST12,7 | 12,7 mm (1/2") | 12,7 mm (1/2") |
| PP12,7ST6,35 | 12,7 mm (1/2") | 6,35 mm (1/4") |
| PP19,05ST19,05 | 19,05 mm (3/4") | 19,05 mm (3/4") |
| PP25,4ST25,4 | 25,4 mm (1") | 25,4 mm (1") |
