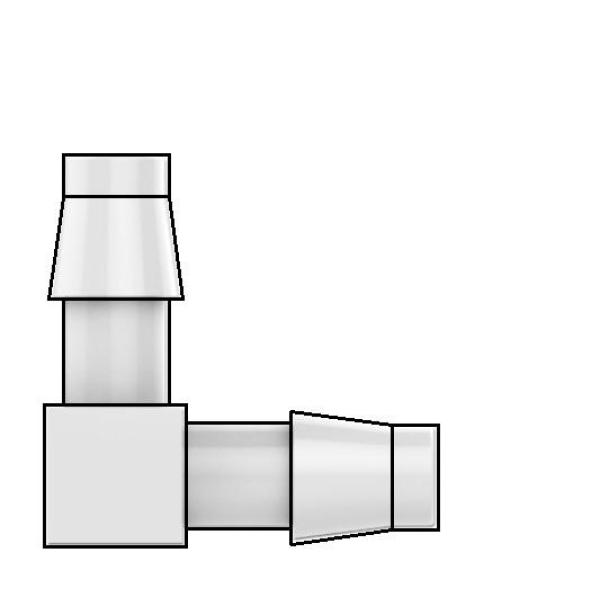

Winkel Tüllenverbinder
Tüllenverbinder - Winkel Schlauchverbinder

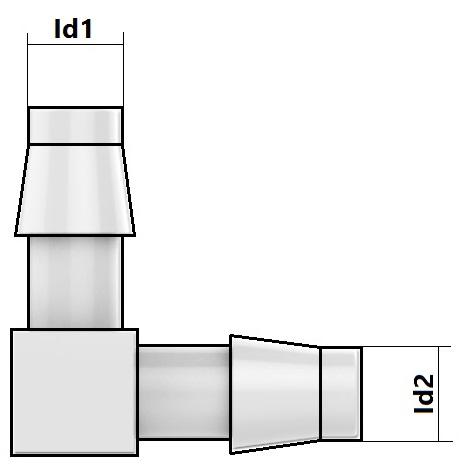

Id1 = Innen-Ø Schlauch 1:
- 1,59 mm (1/16“)
- 2,38 mm (3/32“)
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,76 mm (3/16“)
- 6,35 mm (1/4“)
- 9,53 mm (3/8“)
- 12,7 mm (1/2“)
Id2 = Innen-Ø Schlauch 2:
- 1,59 mm (1/16“)
- 2,38 mm (3/32“)
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,76 mm (3/16“)
- 6,35 mm (1/4“)
- 9,53 mm (3/8“)
- 12,7 mm (1/2“)
Material:
- Polyamid
- Polypropylen
- Kynar® PVDF
- Polycarbonat
Durchmesser
| Art.Nr. | Ø Innen | Ø Innen 2. Seite |
|---|---|---|
| KY1,59AK1,59 | 1,59 mm (1/16") | 1,59 mm (1/16") |
| KY2,38AK2,38 | 2,38 mm (3/32") | 2,38 mm (3/32") |
| KY3,18AK3,18 | 3,18 mm (1/8") | 3,18 mm (1/8") |
| KY3,97AK3,97 | 3,97 mm (5/32") | 3,97 mm (5/32") |
| KY4,76AK4,76 | 4,76 mm (3/16") | 4,76 mm (3/16") |
| KY6,35AK6,35 | 6,35 mm (1/4") | 6,35 mm (1/4") |
| Art.Nr. | Ø Innen | Ø Innen 2. Seite |
|---|---|---|
| PP1,59AK1,59 | 1,59 mm (1/16") | 1,59 mm (1/16") |
| PP2,38AK2,38 | 2,38 mm (3/32") | 2,38 mm (3/32") |
| PP3,18AK3,18 | 3,18 mm (1/8") | 3,18 mm (1/8") |
| PP3,97AK3,97 | 3,97 mm (5/32") | 3,97 mm (5/32") |
| PP4,76AK4,76 | 4,76 mm (3/16") | 4,76 mm (3/16") |
| PP6,35AK6,35 | 6,35 mm (1/4") | 6,35 mm (1/4") |
| PP9,53AK9,53 | 9,53 mm (3/8") | 9,53 mm (3/8") |
| PP12,7AK12,7 | 12,7 mm (1/2") | 12,7 mm (1/2") |
| PP19,05AK19,05 | 19,05 mm (3/4") | 19,05 mm (3/4") |
| PP25,4AK25,4 | 25,4 mm (1") | 25,4 mm (1") |
