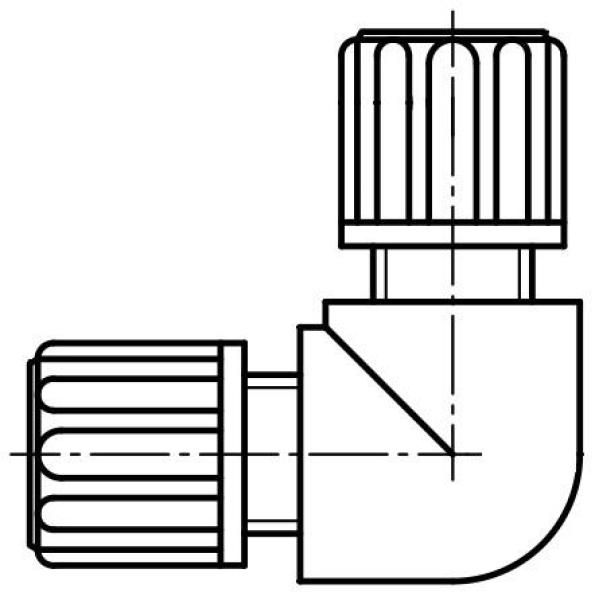

Winkel Schlauchverschraubung
Winkel Schlauchverbinder - Verschraubung
Der feste Schlauch bzw. das Kunststoffrohr wird auf die integrierte Tülle geschoben. Mittels der Rändelmutter wird ein Schneidring angezogen, der den Schlauch klemmt. Ein Dichtring verschließt die Verbindung. Es entsteht eine kraftschlüssige, dichte und wieder lösbare 90°Winkel-Verbindung mit geringem Totvolumen.
Id1 = Innen-Ø
- Schlauch 1:
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,0 mm
- 5,0 mm
- 6,0 mm
- 6,35 mm (1/4“)
- 7,94 mm (5/16“)
- 8,0 mm
- 9,0 mm
- 9,53 mm (3/8“)
- 10,0 mm
- 12,0 mm
- 14,0 mm
- 15,88 mm (5/8“)
- 16,0 mm
- 18,0 mm
Ad1 = Außen-Ø
- Schlauch 1:
- 6,0 mm
- 6,35 mm (1/4“)
- 8,0 mm
- 9,0 mm
- 9,53 mm (3/8“)
- 10,0 mm
- 12,0 mm
- 12,7 mm (1/2“)
- 14,0 mm
- 16,0 mm
- 19,05 mm (3/4“)
- 20,0 mm
Id2 = Innen-Ø
- Schlauch 2:
- 3,18 mm (1/8“)
- 3,97 mm (5/32“)
- 4,0 mm
- 4,23 mm (1/6“)
- 5,0 mm
- 6,0 mm
- 6,35 mm (1/4“)
- 8,0 mm
- 9,53 mm (3/8“)
- 10,0 mm
- 12,0 mm
- 14,0 mm
- 15,88 mm (5/8“)
- 16,0 mm
- 18,0 mm
Ad2 = Außen-Ø
- Schlauch 2:
- 6,0 mm
- 6,35 mm (1/4“)
- 8,0 mm
- 9,0 mm
- 9,53 mm (3/8“)
- 10,0 mm
- 12,0 mm
- 12,7 mm (1/2“)
- 14,0 mm
- 16,0 mm
- 19,05 mm (3/4“)
- 20,0 mm
Material:
- PFA
- PVDF
- Polypropylen
Durchmesser
Art.Nr. | Ø Innen | Ø Außen | Ø Innen 2. Seite | Ø Außen 2. Seite |
---|---|---|---|---|
PFWV0001 | 3,18 mm (1/8") | 6,35 mm (1/4") | 3,18 mm (1/8") | 6,35 mm (1/4") |
PFWV0002 | 4,0 mm | 6,0 mm | 4,0 mm | 6,0 mm |
PFWV0003 | 4,0 mm | 6,0 mm | 4,23 mm (1/6") | 6,35 mm (1/4") |
PFWV0004 | 4,0 mm | 6,0 mm | 6,0 mm | 8,0 mm |
PFWV0005 | 4,0 mm | 6,0 mm | 8,0 mm | 10,0 mm |
PFWV0006 | 4,0 mm | 6,0 mm | 10,0 mm | 12,0 mm |
PFWV0007 | 4,23 mm (1/6") | 6,35 mm (1/4") | 4,23 mm (1/6") | 6,35 mm (1/4") |
PFWV0008 | 5,0 mm | 8,0 mm | 5,0 mm | 8,0 mm |
PFWV0009 | 6,0 mm | 8,0 mm | 6,0 mm | 8,0 mm |
PFWV0010 | 6,0 mm | 8,0 mm | 10,0 mm | 12,0 mm |
PFWV0011 | 6,0 mm | 10,0 mm | 6,0 mm | 10,0 mm |
PFWV0012 | 6,35 mm (1/4") | 9,53 mm (3/8") | 6,35 mm (1/4") | 9,53 mm (3/8") |
PFWV0013 | 8,0 mm | 10,0 mm | 8,0 mm | 10,0 mm |
PFWV0014 | 8,0 mm | 10,0 mm | 10,0 mm | 12,0 mm |
PFWV0015 | 8,0 mm | 12,0 mm | 8,0 mm | 12,0 mm |
PFWV0016 | 9,0 mm | 12,0 mm | 9,0 mm | 12,0 mm |
PFWV0017 | 9,53 mm (3/8") | 12,7 mm (1/2") | 9,53 mm (3/8") | 12,7 mm (1/2") |
PFWV0018 | 9,53 mm (3/8") | 12,7 mm (1/2") | 15,88 mm (5/8") | 19,05 mm (3/4") |
PFWV0019 | 10,0 mm | 12,0 mm | 10,0 mm | 12,0 mm |
PFWV0020 | 10,0 mm | 14,0 mm | 10,0 mm | 14,0 mm |
PFWV0021 | 12,0 mm | 14,0 mm | 12,0 mm | 14,0 mm |
PFWV0022 | 14,0 mm | 16,0 mm | 14,0 mm | 16,0 mm |
PFWV0023 | 15,88 mm (5/8") | 19,05 mm (3/4") | 15,88 mm (5/8") | 19,05 mm (3/4") |
Art.Nr. | Ø Innen | Ø Außen | Ø Innen 2. Seite | Ø Außen 2. Seite |
---|---|---|---|---|
PPWV0001 | 4,0 mm | 6,0 mm | 4,0 mm | 6,0 mm |
PPWV0002 | 4,23 mm (1/6") | 6,35 mm (1/4") | 4,23 mm (1/6") | 6,35 mm (1/4") |
PPWV0003 | 5,0 mm | 8,0 mm | 5,0 mm | 8,0 mm |
PPWV0004 | 6,0 mm | 8,0 mm | 6,0 mm | 8,0 mm |
PPWV0005 | 6,0 mm | 8,0 mm | 10,0 mm | 12,0 mm |
PPWV0006 | 6,0 mm | 9,0 mm | 6,0 mm | 9,0 mm |
PPWV0007 | 6,0 mm | 10,0 mm | 6,0 mm | 10,0 mm |
PPWV0008 | 8,0 mm | 10,0 mm | 8,0 mm | 10,0 mm |
PPWV0009 | 8,0 mm | 12,0 mm | 8,0 mm | 12,0 mm |
PPWV0010 | 9,0 mm | 12,0 mm | 9,0 mm | 12,0 mm |
PPWV0011 | 9,53 mm (3/8") | 12,7 mm (1/2") | 9,53 mm (3/8") | 12,7 mm (1/2") |
PPWV0012 | 9,53 mm (3/8") | 12,7 mm (1/2") | 8,0 mm | 12,0 mm |
PPWV0013 | 10,0 mm | 12,0 mm | 10,0 mm | 12,0 mm |
PPWV0014 | 12,0 mm | 14,0 mm | 12,0 mm | 14,0 mm |
Art.Nr. | Ø Innen | Ø Außen | Ø Innen 2. Seite | Ø Außen 2. Seite |
---|---|---|---|---|
PVWV0001 | 3,18 mm (1/8") | 6,35 mm (1/4") | 4,0 mm | 6,0 mm |
PVWV0002 | 3,97 mm (5/32") | 6,35 mm (1/4") | 3,97 mm (5/32") | 6,35 mm (1/4") |
PVWV0003 | 4,0 mm | 6,0 mm | 4,0 mm | 6,0 mm |
PVWV0004 | 4,0 mm | 6,0 mm | 6,0 mm | 8,0 mm |
PVWV0005 | 4,23 mm (1/6") | 6,35 mm (1/4") | 4,23 mm (1/6") | 6,35 mm (1/4") |
PVWV0006 | 4,23 mm (1/6") | 6,35 mm (1/4") | 6,35 mm (1/4") | 9,53 mm (3/8") |
PVWV0007 | 5,0 mm | 8,0 mm | 5,0 mm | 8,0 mm |
PVWV0008 | 6,0 mm | 8,0 mm | 6,0 mm | 8,0 mm |
PVWV0009 | 6,0 mm | 8,0 mm | 8,0 mm | 12,0 mm |
PVWV0010 | 6,0 mm | 9,0 mm | 6,0 mm | 9,0 mm |
PVWV0011 | 6,35 mm (1/4") | 9,53 mm (3/8") | 6,35 mm (1/4") | 9,53 mm (3/8") |
PVWV0012 | 8,0 mm | 10,0 mm | 8,0 mm | 10,0 mm |
PVWV0013 | 8,0 mm | 12,0 mm | 8,0 mm | 12,0 mm |
PVWV0014 | 9,0 mm | 12,0 mm | 9,0 mm | 12,0 mm |
PVWV0015 | 9,53 mm (3/8") | 12,7 mm (1/2") | 9,53 mm (3/8") | 12,7 mm (1/2") |
PVWV0016 | 10,0 mm | 12,0 mm | 10,0 mm | 12,0 mm |
PVWV0017 | 10,0 mm | 14,0 mm | 10,0 mm | 14,0 mm |
PVWV0018 | 12,0 mm | 14,0 mm | 12,0 mm | 14,0 mm |
PVWV0019 | 18,0 mm | 20,0 mm | 18,0 mm | 20,0 mm |
