T-Schlauchverschraubung

Art.Nr.:
Lagerbestand:: Stück
Download:: Datenblatt
T-Schlauchverschraubung

Variante:

Ø Innen:

Ø Außen:

Ø Innen 2:

Ø Außen 2:

Ø Innen 3:

Ø Außen 3:

Stück:

Preis und Lieferzeit werden Ihnen nach Anfragen des Artikels schnellstmöglich mitgeteilt.

Wunschmenge kann von Mindestabnahmemenge abweichen.

Frage zum Produkt

Beschreibung

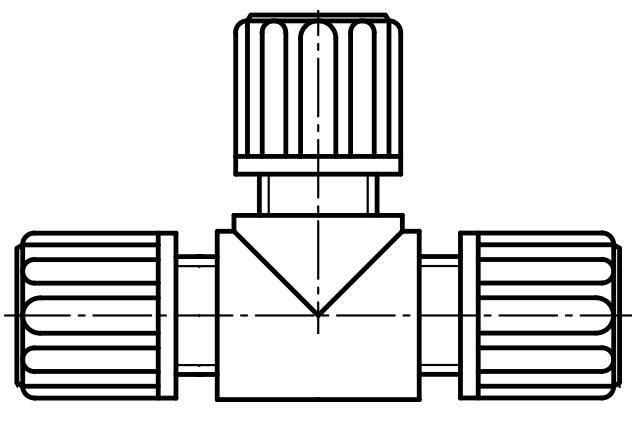

Verschraubung - T-Schlauchverbinder

Der feste Schlauch bzw. das Kunststoffrohr wird auf die integrierte Tülle geschoben. Mittels der Rändelmutter wird ein Schneidring angezogen, der den Schlauch klemmt. Ein Dichtring verschließt die Verbindung. Es entsteht eine kraftschlüssige, dichte und wieder lösbare T-Verbindung mit geringem Totvolumen.

Id1 / Id2 / Id3 = Innen-Ø:

Ad1 / Ad2 / Ad3 = Außen-Ø:

Material:

PFA
PVDF
Polypropylen

Abmessungen

Durchmesser

pn_columntitle	Art.Nr.	Ø Innen	Ø Außen	Ø Innen 2. Seite	Ø Außen 2. Seite	Ø Innen 3. Seite	Ø Außen 3. Seite
pn_name	PFTV0001	3,18 mm (1/8")	6,35 mm (1/4")	3,18 mm (1/8")	6,35 mm (1/4")	3,18 mm (1/8")	6,35 mm (1/4")
pn_name	PFTV0002	4,0 mm	6,0 mm	4,0 mm	6,0 mm	4,0 mm	6,0 mm
pn_name	PFTV0003	4,0 mm	6,0 mm	4,0 mm	6,0 mm	6,0 mm	8,0 mm
pn_name	PFTV0004	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PFTV0005	4,76 mm (3/16")	6,35 mm (1/4")	4,76 mm (3/16")	6,35 mm (1/4")	4,76 mm (3/16")	6,35 mm (1/4")
pn_name	PFTV0006	5,0 mm	8,0 mm	5,0 mm	8,0 mm	5,0 mm	8,0 mm
pn_name	PFTV0007	6,0 mm	8,0 mm	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PFTV0008	6,0 mm	8,0 mm	4,0 mm	6,0 mm	6,0 mm	8,0 mm
pn_name	PFTV0009	6,0 mm	8,0 mm	6,0 mm	8,0 mm	4,0 mm	6,0 mm
pn_name	PFTV0010	6,0 mm	8,0 mm	6,0 mm	8,0 mm	6,0 mm	8,0 mm
pn_name	PFTV0011	6,0 mm	8,0 mm	6,0 mm	8,0 mm	8,0 mm	10,0 mm
pn_name	PFTV0012	6,0 mm	10,0 mm	6,0 mm	8,0 mm	6,0 mm	8,0 mm
pn_name	PFTV0013	6,0 mm	10,0 mm	6,0 mm	10,0 mm	6,0 mm	10,0 mm
pn_name	PFTV0014	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")	3,97 mm (5/32")	6,35 mm (1/4")
pn_name	PFTV0015	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PFTV0016	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PFTV0017	8,0 mm	10,0 mm	8,0 mm	10,0 mm	4,0 mm	6,0 mm
pn_name	PFTV0018	8,0 mm	10,0 mm	8,0 mm	10,0 mm	6,0 mm	8,0 mm
pn_name	PFTV0019	8,0 mm	10,0 mm	8,0 mm	10,0 mm	8,0 mm	10,0 mm
pn_name	PFTV0020	8,0 mm	12,0 mm	8,0 mm	12,0 mm	8,0 mm	12,0 mm
pn_name	PFTV0021	9,0 mm	12,0 mm	9,0 mm	12,0 mm	9,0 mm	12,0 mm
pn_name	PFTV0022	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PFTV0023	10,0 mm	12,0 mm	4,0 mm	6,0 mm	10,0 mm	12,0 mm
pn_name	PFTV0024	10,0 mm	12,0 mm	10,0 mm	12,0 mm	4,0 mm	6,0 mm
pn_name	PFTV0025	10,0 mm	12,0 mm	10,0 mm	12,0 mm	6,0 mm	8,0 mm
pn_name	PFTV0026	10,0 mm	12,0 mm	10,0 mm	12,0 mm	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PFTV0027	10,0 mm	12,0 mm	10,0 mm	12,0 mm	10,0 mm	12,0 mm
pn_name	PFTV0028	10,0 mm	14,0 mm	10,0 mm	14,0 mm	10,0 mm	14,0 mm
pn_name	PFTV0029	12,0 mm	14,0 mm	12,0 mm	14,0 mm	12,0 mm	14,0 mm
pn_name	PFTV0030	12,0 mm	16,0 mm	10,0 mm	12,0 mm	10,0 mm	12,0 mm
pn_name	PFTV0031	12,0 mm	16,0 mm	12,0 mm	16,0 mm	12,0 mm	16,0 mm
pn_name	PFTV0032	14,0 mm	16,0 mm	14,0 mm	16,0 mm	14,0 mm	16,0 mm
pn_name	PFTV0033	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PFTV0034	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")
pn_name	PFTV0035	16,0 mm	20,0 mm	16,0 mm	20,0 mm	10,0 mm	12,0 mm
pn_name	PFTV0036	22,23 mm (7/8")	25,4 mm (1")	22,23 mm (7/8")	25,4 mm (1")	15,88 mm (5/8")	19,05 mm (3/4")
pn_name	PFTV0037	22,23 mm (7/8")	25,4 mm (1")	22,23 mm (7/8")	25,4 mm (1")	22,23 mm (7/8")	25,4 mm (1")

pn_columntitle	Art.Nr.	Ø Innen	Ø Außen	Ø Innen 2. Seite	Ø Außen 2. Seite	Ø Innen 3. Seite	Ø Außen 3. Seite
pn_name	PPTV0001	4,0 mm	6,0 mm	4,0 mm	6,0 mm	4,0 mm	6,0 mm
pn_name	PPTV0002	4,0 mm	6,0 mm	4,0 mm	6,0 mm	6,0 mm	8,0 mm
pn_name	PPTV0003	4,0 mm	6,0 mm	4,0 mm	6,0 mm	8,0 mm	10,0 mm
pn_name	PPTV0004	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PPTV0005	5,0 mm	8,0 mm	5,0 mm	8,0 mm	5,0 mm	8,0 mm
pn_name	PPTV0006	6,0 mm	8,0 mm	6,0 mm	8,0 mm	6,0 mm	8,0 mm
pn_name	PPTV0007	6,0 mm	9,0 mm	6,0 mm	9,0 mm	6,0 mm	9,0 mm
pn_name	PPTV0008	6,0 mm	10,0 mm	6,0 mm	10,0 mm	6,0 mm	10,0 mm
pn_name	PPTV0009	8,0 mm	10,0 mm	4,0 mm	6,0 mm	8,0 mm	10,0 mm
pn_name	PPTV0010	8,0 mm	10,0 mm	8,0 mm	10,0 mm	4,0 mm	6,0 mm
pn_name	PPTV0011	8,0 mm	10,0 mm	8,0 mm	10,0 mm	8,0 mm	10,0 mm
pn_name	PPTV0012	8,0 mm	10,0 mm	8,0 mm	10,0 mm	10,0 mm	12,0 mm
pn_name	PPTV0013	8,0 mm	12,0 mm	9,53 mm (3/8")	12,7 mm (1/2")	8,0 mm	12,0 mm
pn_name	PPTV0014	8,0 mm	12,0 mm	8,0 mm	12,0 mm	4,0 mm	6,0 mm
pn_name	PPTV0015	8,0 mm	12,0 mm	8,0 mm	12,0 mm	8,0 mm	12,0 mm
pn_name	PPTV0016	8,0 mm	12,0 mm	8,0 mm	12,0 mm	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PPTV0017	9,0 mm	12,0 mm	9,0 mm	12,0 mm	9,0 mm	12,0 mm
pn_name	PPTV0018	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PPTV0019	10,0 mm	12,0 mm	10,0 mm	12,0 mm	4,0 mm	6,0 mm
pn_name	PPTV0020	10,0 mm	12,0 mm	10,0 mm	12,0 mm	6,0 mm	8,0 mm
pn_name	PPTV0021	10,0 mm	12,0 mm	10,0 mm	12,0 mm	10,0 mm	12,0 mm
pn_name	PPTV0022	10,0 mm	14,0 mm	10,0 mm	14,0 mm	10,0 mm	14,0 mm
pn_name	PPTV0023	12,0 mm	14,0 mm	12,0 mm	14,0 mm	12,0 mm	14,0 mm
pn_name	PPTV0024	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")
pn_name	PPTV0025	16,0 mm	20,0 mm	16,0 mm	20,0 mm	16,0 mm	20,0 mm

pn_columntitle	Art.Nr.	Ø Innen	Ø Außen	Ø Innen 2. Seite	Ø Außen 2. Seite	Ø Innen 3. Seite	Ø Außen 3. Seite
pn_name	PVTV0001	3,18 mm (1/8")	6,35 mm (1/4")	3,18 mm (1/8")	6,35 mm (1/4")	3,18 mm (1/8")	6,35 mm (1/4")
pn_name	PVTV0002	3,97 mm (5/32")	6,35 mm (1/4")	3,97 mm (5/32")	6,35 mm (1/4")	3,97 mm (5/32")	6,35 mm (1/4")
pn_name	PVTV0003	4,0 mm	6,0 mm	4,0 mm	6,0 mm	4,0 mm	6,0 mm
pn_name	PVTV0004	4,0 mm	6,0 mm	4,0 mm	6,0 mm	6,0 mm	8,0 mm
pn_name	PVTV0005	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PVTV0006	5,0 mm	8,0 mm	5,0 mm	8,0 mm	5,0 mm	8,0 mm
pn_name	PVTV0007	6,0 mm	8,0 mm	4,0 mm	6,0 mm	4,0 mm	6,0 mm
pn_name	PVTV0008	6,0 mm	8,0 mm	6,0 mm	8,0 mm	4,0 mm	6,0 mm
pn_name	PVTV0009	6,0 mm	8,0 mm	6,0 mm	8,0 mm	6,0 mm	8,0 mm
pn_name	PVTV0010	6,0 mm	8,0 mm	6,0 mm	8,0 mm	10,0 mm	12,0 mm
pn_name	PVTV0011	6,0 mm	9,0 mm	6,0 mm	9,0 mm	6,0 mm	9,0 mm
pn_name	PVTV0012	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")	4,23 mm (1/6")	6,35 mm (1/4")
pn_name	PVTV0013	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")	6,35 mm (1/4")	9,53 mm (3/8")
pn_name	PVTV0014	8,0 mm	10,0 mm	6,0 mm	8,0 mm	8,0 mm	10,0 mm
pn_name	PVTV0015	8,0 mm	10,0 mm	8,0 mm	10,0 mm	6,0 mm	8,0 mm
pn_name	PVTV0016	8,0 mm	10,0 mm	8,0 mm	10,0 mm	10,0 mm	12,0 mm
pn_name	PVTV0017	8,0 mm	10,0 mm	8,0 mm	10,0 mm	8,0 mm	10,0 mm
pn_name	PVTV0018	8,0 mm	12,0 mm	8,0 mm	12,0 mm	8,0 mm	12,0 mm
pn_name	PVTV0019	9,0 mm	12,0 mm	9,0 mm	12,0 mm	9,0 mm	12,0 mm
pn_name	PVTV0020	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")	9,53 mm (3/8")	12,7 mm (1/2")
pn_name	PVTV0021	10,0 mm	12,0 mm	6,0 mm	8,0 mm	6,0 mm	8,0 mm
pn_name	PVTV0022	10,0 mm	12,0 mm	10,0 mm	12,0 mm	4,0 mm	6,0 mm
pn_name	PVTV0023	10,0 mm	12,0 mm	10,0 mm	12,0 mm	6,0 mm	8,0 mm
pn_name	PVTV0024	10,0 mm	12,0 mm	10,0 mm	12,0 mm	10,0 mm	12,0 mm
pn_name	PVTV0025	12,0 mm	14,0 mm	12,0 mm	14,0 mm	12,0 mm	14,0 mm
pn_name	PVTV0026	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")	15,88 mm (5/8")	19,05 mm (3/4")
pn_name	PVTV0027	18,0 mm	20,0 mm	18,0 mm	20,0 mm	18,0 mm	20,0 mm
